The following items can be added to a playlist: media files in Cinegy Air supported formats (vob, mpg, avi, dv, wmv, bmp, jpg, gif, tif etc.), clips, Sequences, live, dummy and note items.

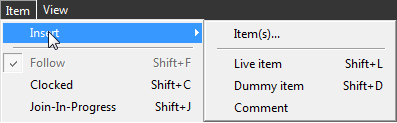

Use the "Insert" command from the "Item" main menu for adding items to the playlist:

insert_menu

To add a live item, a dummy item or insert a new comment to the playlist, select the corresponding command from the submenu.

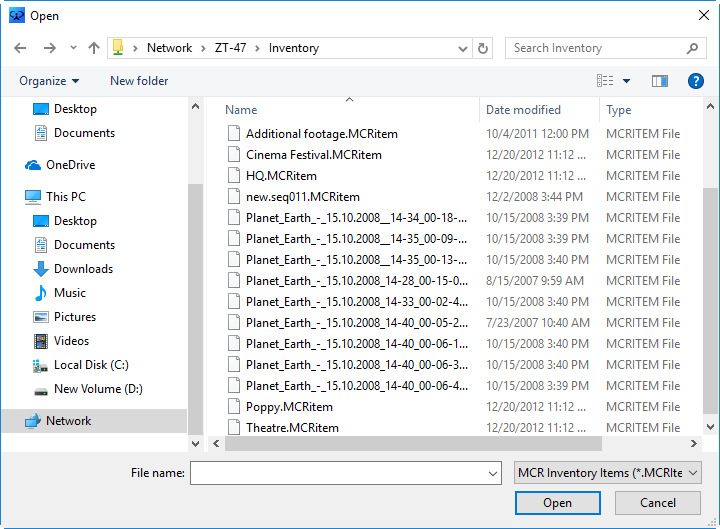

To add the desired MCRitems or item(s) in a Cinegy Air supported format, click the "Insert" > "Item(s)..." command. The "Open" dialog box appears:

Open_menu

Browse for the file storage folder. Select one or several items in *.MCRitem format or change the "Files of type" option to "All files" and select files in any Cinegy Air supported format. Press "Open" to add selected files to the playlist.

The item(s) will be inserted with the aspect ratio, defined in the Cinegy Air Configurator. For more details, see the Aspect Ratio paragraph.

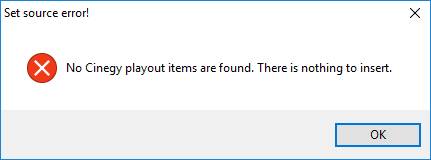

If selected media files are not supported by Cinegy Air, the following error message appears:

error_nothing_insert

There are three other ways to add an item (e.g. Sequence, clip from a Roll or ClipBin or document from a DocumentBin) to the playlist:

  • by dragging-and-dropping it from the shared folder (inventory) via the Windows Explorer or via Inventory Browser in file browser mode;

  • by dragging-and-dropping it from Inventory Browser in Cinegy Browser mode;

  • by dragging-and-dropping it from the integrated browser window of the Cinegy Air PRO main window.

Inventory Browser and the "Cinegy Browser" tab of the integrated browser window are not supported in Cinegy Air SOLO.

You can also add the media material in a Cinegy Air supported format by dragging-and-dropping it directly from the file storage via the Windows Explorer.

If you are using footage from a removable media, and the media becomes unavailable, the item will be shown as media offline in your playlist.
Learn more about media offline in this article.

composing_playlist

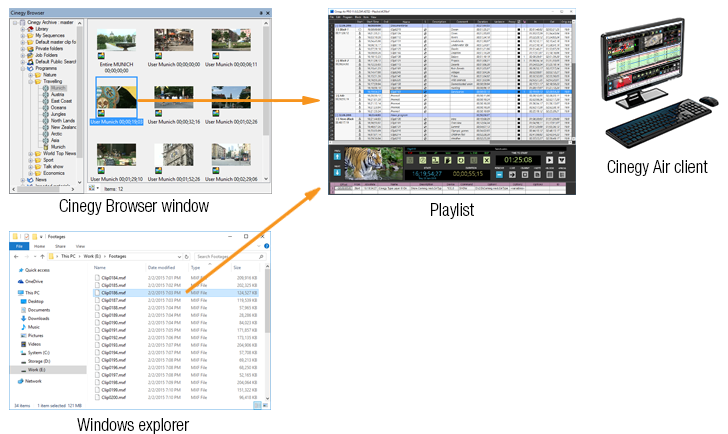

The diagram above demonstrates different ways of adding items to a playlist, as described previously: from Inventory Browser in both modes, from the browser window of the Cinegy Air PRO main window, and from the Windows explorer.

Live, dummy and note items can be added via commands from the right-click menu or by pressing the appropriate buttons.

Drag-and-Drop via Inventory Browser

Inventory Browser is not supported in Cinegy Air SOLO.

Drag-and-Drop in Cinegy Browser Mode

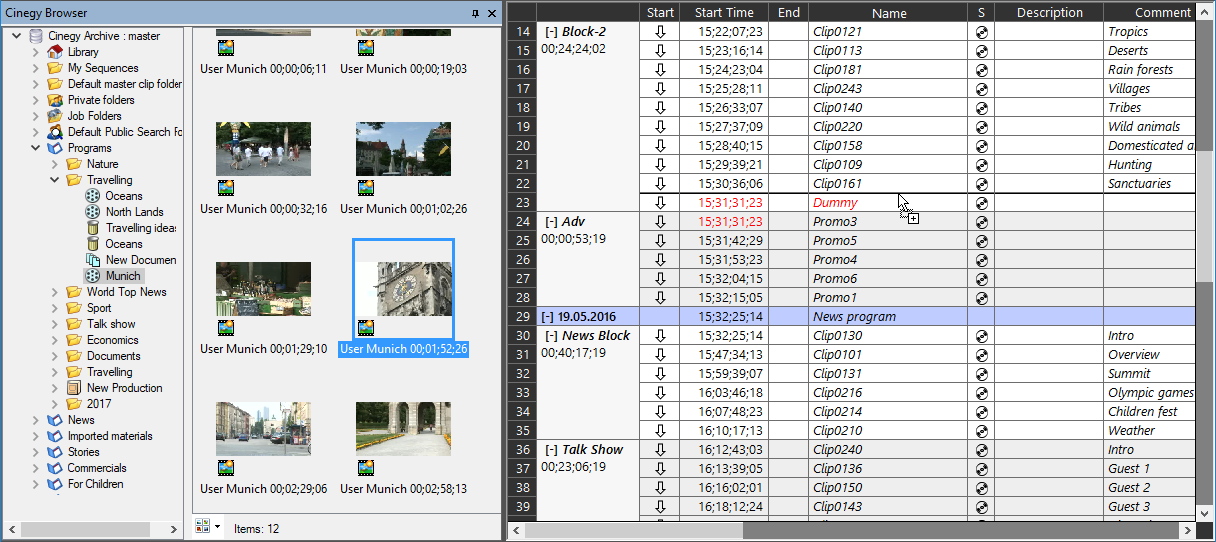

Use Cinegy Browser mode to navigate to the desired item in the Cinegy Archive database; select the item and add it to the playlist via drag-and-drop.

inventory_MAM_mode_small

Drag-and-Drop in File Browser Mode

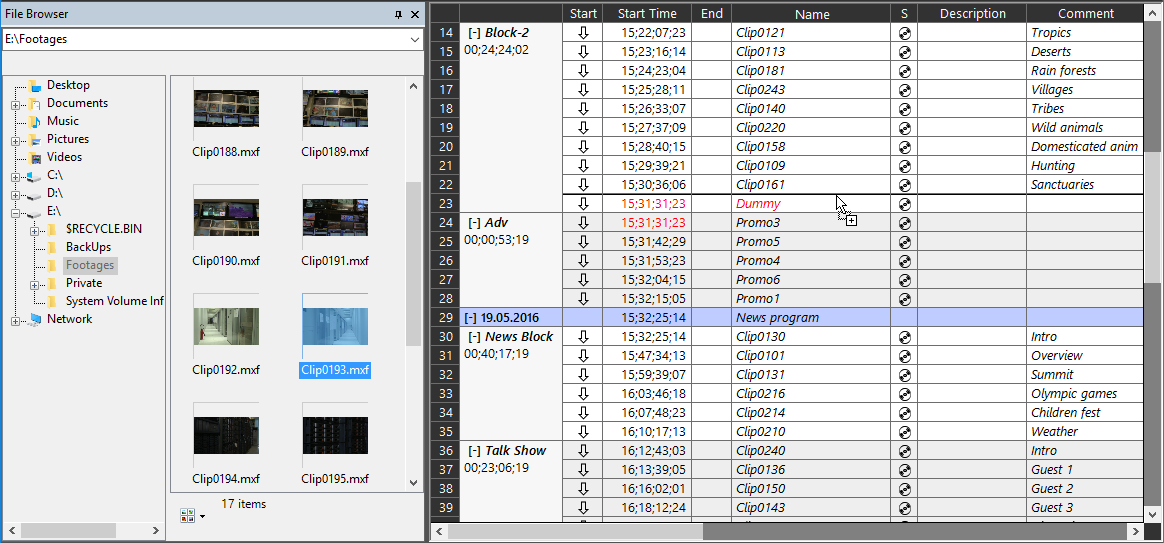

Use file browser mode to navigate through local or removable media or folders (e.g. shared inventory folder) where *.MCRitem files are stored. Select an item and add it to the playlist via drag-and-drop. It is also possible to select multiple items and add them all to the playlist at the same time.

MCR_Inventory_small

Drag-and-Drop via the Windows Explorer

When composing a playlist, single or multiple Cinegy Air playlist items can be dragged-and-dropped from the Microsoft Windows Explorer. Use the Windows Explorer to navigate through local or removable media (e.g. shared inventory folder), select the item or items and add these to the playlist via drag-and-drop.

inventory

If there are existing items already in the playlist, the new items will be inserted above the currently selected item.

Drag-and-Drop of Video Files

Use the Windows Explorer to drag-and-drop video file(s) in Cinegy Air supported format to the playlist.

If you inserting an item into a newly created empty playlist, the program metadata will be substituted by the item metadata. Any subsequent items inserted will not affect the program metadata.

To disable this feature, remove the selection of the "Auto-propagate metadata to a program" option in the "Preferences" dialog.

Inserting Items and Playlists in Control Mode

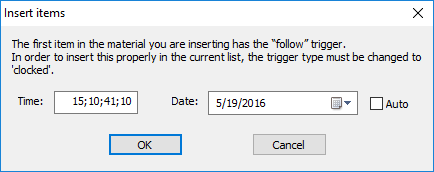

The "Insert items" window appears after you add a new playlist or when you add one or more items to the empty playlist table either in single channel or multi channel control mode:

insert_items

Here you can set the exact time and date when the inserted item will go on-air.

The same window appears after you have added the follow item type to the end of the composed playlist after the last item had been broadcast in one of the control modes.

Refer to the Single Channel Control article for details about working in single channel control mode.
The items in the playlist for the current 24 hours are displayed in bold in one of the control modes.

Source Error

Ensure that all the items being added to the playlist are of the compatible TV formats.

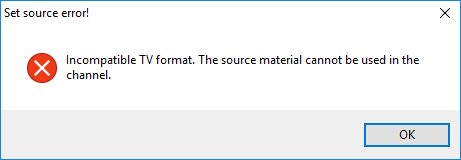

Otherwise, the following error message appears:

TV_format
