Clip Viewer

text 2B displayed insted

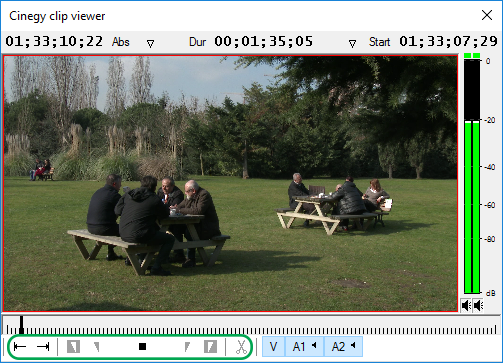

Select the item you wish to play back and press the "View" button on the item editor panel or choose the "Preview" command from the right-click menu. This command is also available from the "Item" main menu. The Clip Viewer window appears. Then press the "Play" button to play the clip in Clip Viewer.

ClipViewer
Note
All the clip editing controls are disabled in this mode.

VANC Data Display

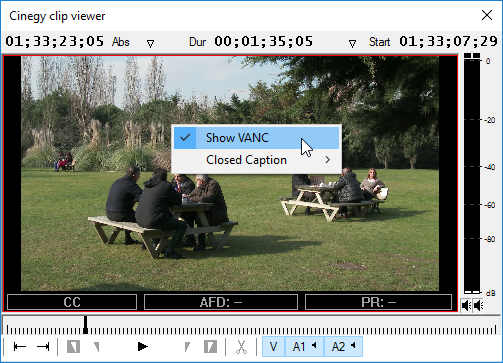

Clip Viewer can be set up to display the embedded VANC data. To enable this feature, right-click anywhere within the Clip Viewer window and tick off the "Show VANC" option:

clip_viewer_VANC

The additional panel will be displayed at the bottom of the window showing the available VANC data.

To hide the VANC data panel, deselect the "Show VANC" option in the context menu.

Closed Captions Display

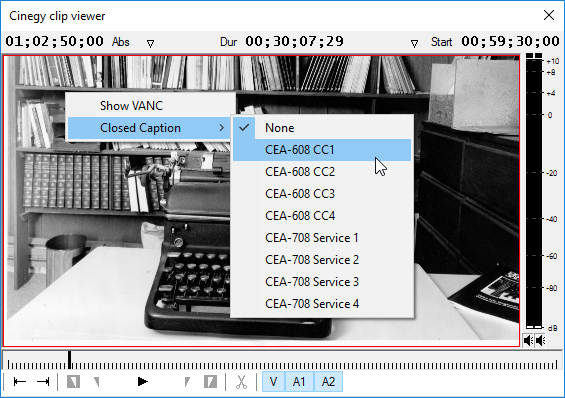

It is possible to display embedded closed captions in Cinegy Clip Viewer. To do this, right-click anywhere within the Clip Viewer window and select the corresponding closed captions channel in the "Closed Caption" cascaded menu:

clip_viewer_CC

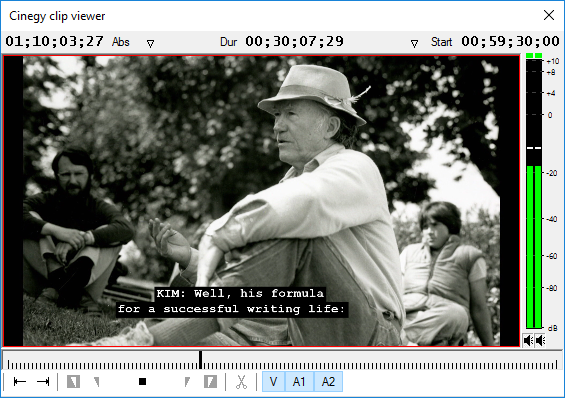

The video display will include the closed captions text:

clip_viewer_CC_display

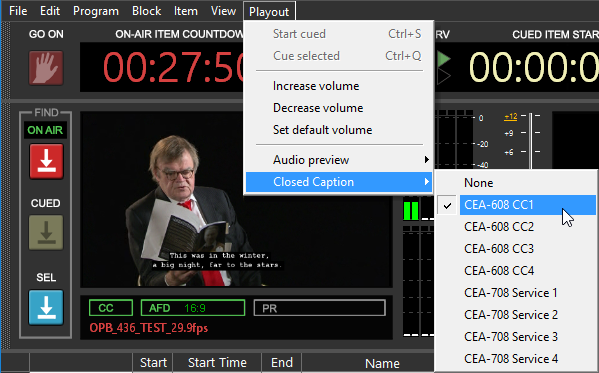

The closed captions preview on the playout control panel can be enabled/disabled via the "Closed Caption" submenu from the "Playout" main menu:

Playout_menu_CC

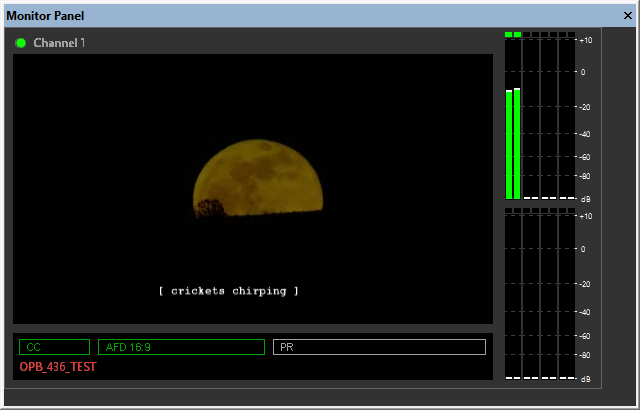

The closed captions text will also be displayed on the monitor panel:

Monitor_panel_CC

Cinegy Type and Cinegy Titler Secondary Events Display

When a playlist item is open in the built-in clip viewer and it has the configured secondary events of Cinegy Type or Cinegy Titler showing or hiding, these scenes will be rendered if they belong to the defined In-Out range. This is useful for fine-tuning or synchronizing CG scenes and video content.

This feature will work with the "Preview secondary events" option enabled in the Cinegy Air application preferences dialog.

Audio Preview

text 2B displayed insted

The VU meter is shown on the right of Clip Viewer. It shows peak and integrated audio levels in the dB scale as the master output for all the enabled audio channels mixed together.
There are two speaker buttons below the audio scale. The speaker buttons allow you to mute an individual left/right audio channel or both audio channels simultaneously.

Important
To learn how to use the VU meter, refer to the Audio Controls article.

Editing in Clip Viewer

edit

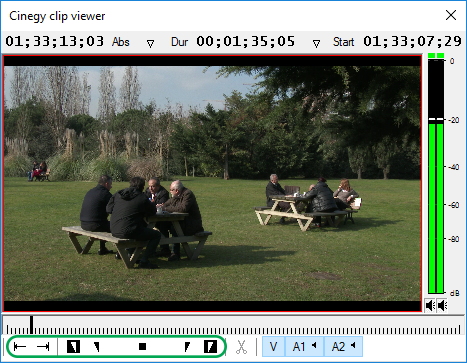

To edit an item, select it in the playlist and press the "Edit" button on the item editor panel or choose the "Edit in the clip viewer" context menu command. This command is also available from the "Item" main menu. The Clip Viewer window appears. You can also preview the clip before and after editing.

ClipViewerEdit

Use Clip Viewer to:

  • cut the clip;

  • set the In and Out points;

  • delete the In and Out points;

  • navigate Edit points.

Note
The In point represents the beginning of the In frame, and the Out point represents the end of the Out frame (or the beginning of the next frame). The duration of the item cannot be less than 0.5 seconds.

Cutting an Item

Razor

The "Razor" command allows you to cut a clip at the current time slider position.

Note
It is not possible to set the In and Out points and split the clip simultaneously. You should first split the clip and then set new In and Out points.

Setting and Deleting In and Out Points

Mark In point

Press the "In" button or hit the I or E key to trim your clip from the left.

Delete In point

To delete the In point, press the "Delete In" button (inversed In).

Mark Out point

Press the "Out" button or hit the O or R key to trim your clip from the right.

Delete Out point

To delete the Out point, press the "Delete Out" button (inversed Out).

Moving to the Next or Previous Edit Point

You can use respective buttons to move from event to event. Events are: start, end of a clip, In and Out points.

Previous Event

Use the "Previous event" button to navigate to the previous edit events. You can also use the A key to jump to the previous clip event.

Next Event

Use the "Next event" button to jump to the next event. You can also use the S key to jump to the next clip event.

Closing Clip Viewer

Press the "X" button or the Esc key to close Clip Viewer.

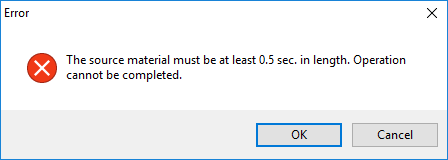

When closing Clip Viewer, the following error message appears if the In and Out points are not set correctly. You should keep in mind that the new duration value cannot be higher than the original or less than 0.5 seconds.

Time_error
Note
All changes made during editing can be undone and redone with the "Undo" and "Redo" commands from the right-click menu.

Playback Quality Degradation

To improve the reliability of the system, the quality degradation feature has been introduced. If the required quality goes offline for some reason, the next lower quality will be played back on-air with the frame-to-frame correspondence, without interrupting playout. When no lower quality is found, the emergency footage or Media Offline will be played back depending on the playout station configuration. If the required quality eventually goes online, the playback quality will be restored.

The In and Out Columns

To correct In and Out timecodes manually, simply double-click the "In" or "Out" table column you wish to change and enter a new timecode. You should keep in mind that the new duration value cannot be higher than the original or less than 0.5 seconds.

The following error messages appear if the In or Out points are not set correctly:

error_in or error_out

Managing Interrupted Items

If the clip was interrupted by an urgent item during the broadcast (by using the "Start Cued" command), the operator can easily resume the playback of this clip. This feature is especially useful if it is a long clip, e.g. a movie.

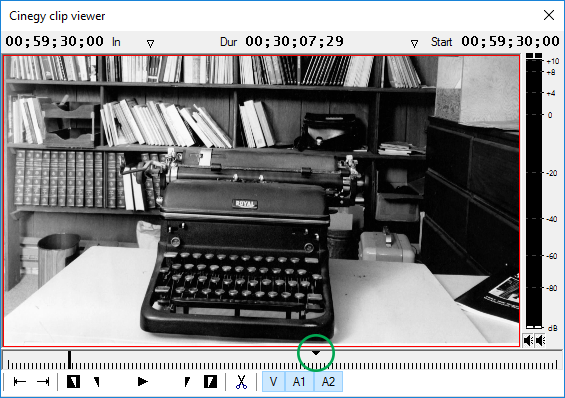

The marker point is created at the time of broadcast interruption.

Interrupted_item

When the interrupted item is copied and pasted or dragged-and-dropped to the lower part of the playlist after the currently broadcast item, you can open it in Cinegy Clip Viewer in the editing mode (using the "Edit" button on the panel or the "Edit in the clip viewer" context menu command), easily find the interruption point and adjust Mark In accordingly.

Note
If several playlist items are copied, and one of them is the interrupted item, the marker point is not created for it.
