The timeline is located under the playlist panel.

timeline_single-channel%20mode_plus%20triggers

Background coloring of items on the timeline is identical to the items’ coloring in the playlist.

Important
Refer to the Item Status, Coloring and Font paragraph to learn more about status coloring.

A light lilac progress bar shows the proxying progress for each item in real-time on the timeline.

The current playback position is marked with a vertical red arrow.

The manual end, clocked and join-in-progress triggers icons are displayed on the timeline according to the specified item play modes in the playlist. The follow items are shown without an icon:

timeline_triggers

Channel Status

The status indicator next to the channel name on the timeline changes its color depending on the channel status.

connected

When connected, the channel is marked with a green indicator.

disconnected

When disconnected, the channel is marked with a dark green indicator.

problems

If there are problems with proxying, the channel is marked with a red indicator. A red blinking indicator warns the operator when problems with the connected channel occur (for example, lost connection).

warning

A yellow blinking indicator warns the operator that the start time of the next manual end item in the playlist is approaching. Also if there is an empty placeholder in the nearest 6 hours, the yellow indicator will blink.

Timeline Options

timeline_context_menu

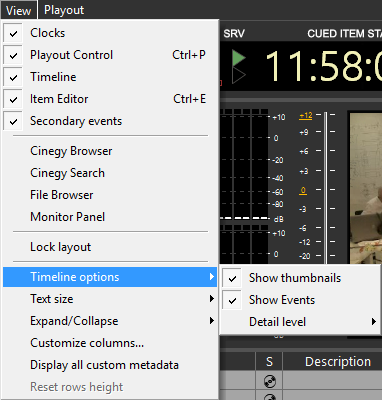

To enable the display of clip thumbnails, select the "Timeline options" > "Show thumbnails" option in the "View" main menu. To hide clip thumbnails, deselect this option.

Select the "Show Events" option in the same menu to enable/disable the display of secondary events available in the current program.

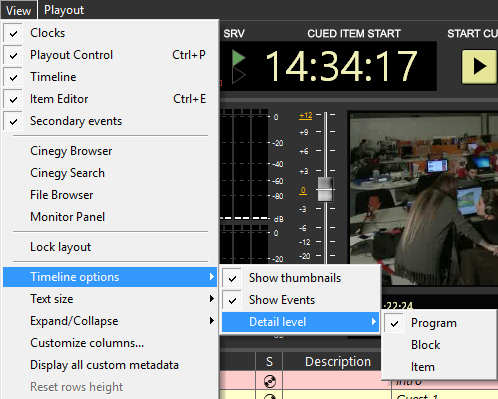

You can change the detail level to program, block or item from the context menu:

context_menu_detail_level

The names of the playlist components (program, block or item) and their duration is displayed in the timeline according to the selected detail level:

duration_name

Timeline Scale

timeline_scale

The timeline slider is shown with a vertical red arrow, located on the time scale. It displays the current playout position and moves synchronously with broadcasting.

Secondary Events Markers

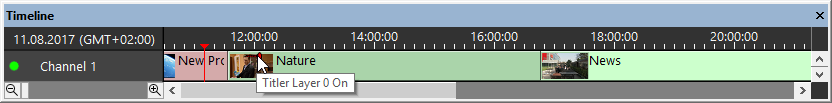

Secondary events configured for the playlist items are indicated with the red marker on the timeline. Hovering the mouse pointer over the secondary event marker displays a tooltip with its name:

timeline_marker

Negative Variance Markers

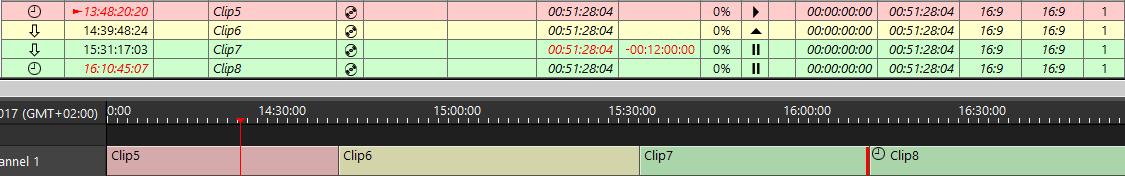

Items with negative variance are highlighted with a red stripe on the right side of the item rectangle:

negative_variance_indication

Failed Item Proxying Marker

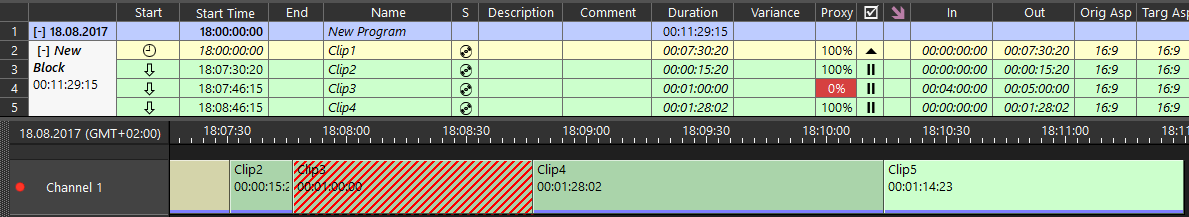

When the item has failed to proxy, it is displayed with red stripes overlay on the timeline:

failed_to_proxy

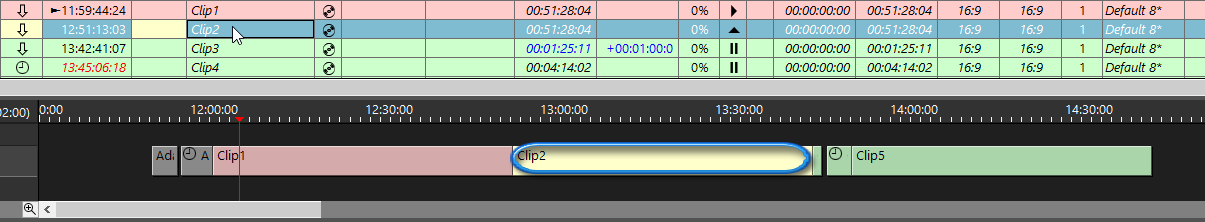

You can navigate within the playlist directly from the timeline. Clicking the item on the timeline highlights it in the playlist and moves the cursor into its position. Clicking the item in the playlist automatically highlights it in the middle of the timeline:

item_timeline
Note
When the the "Program" or "Block" options are selected from the "Detail level" context menu, the navigation within the playlist and the timeline will is enabled on the corresponding playlist component level.

Pressing the "On-air" button brings the on-air playlist item to the middle of the timeline. The timeline scrolls automatically so that the on-air playlist item’s playback marker is always placed in the timeline center.

All actions involving items performed in the playlist (such as jump, start cued, start manual end item) are also displayed on the timeline simultaneously.
