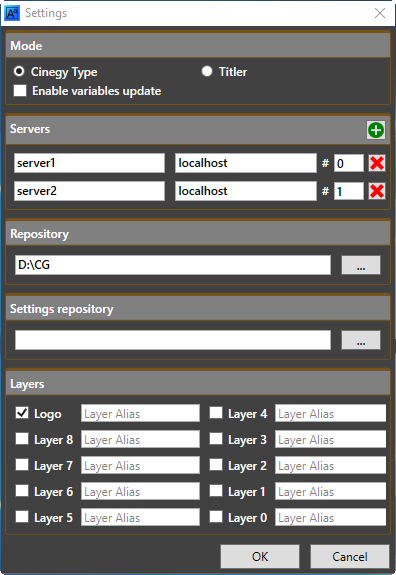

type_control_settings_button Press this button on the main toolbar; the following "Settings" dialog box appears:

type_control_settings

Here define the Cinegy CG settings:

  • Mode – select the corresponding radio button to choose whether Cinegy CG will control Cinegy Type templates or new titler graphics created via the new Cinegy Titler application.

    At the moment, this feature is provided for experimental purposes, i.e. intensive testing is required prior to any live application. The Cinegy Titler tool is only available to customers with valid Service Level Agreement (SLA). Please contact your Cinegy sales representative for details and further guidance.

  • Servers – servers running Cinegy Playout engine. Only one master server is enabled by default, you can add slave servers by pressing the add_server_button button.
    If several Cinegy Playout engine instances are started on the same server, you need to define the Engine instance to be used for processing the specified playlist in the corresponding "#" field next to the server IP address. To remove a server, press the remove_server_button button.

  • Repository – the folder location where the Cinegy Type templates are stored. Press the type_control_browse_button button to choose the desired location in the "Browse For Folder" dialog.

  • Settings repository – the folder location where user profiles (all the Cinegy Type template settings and its variables) in XML file format are stored. Press the type_control_browse_button button and change the default location in the "Browse For Folder" dialog.

In the "Layers" configuration group, define if the logo should be added to your CG scene by selecting the corresponding checkbox. Here also specify the layer(s) to be added to the given CG scene by checking the necessary checkbox(es).

Press "OK" to apply the settings and exit the dialog.

Server Connection Indication

connection_indicators The number of indicators on the left from the CG layer name corresponds to the number of currently configured servers. When connection to the defined playout server(s) is properly established, a green indicator is displayed. The connected server name on the main info panel is displayed in green. When connection to the playout server is lost, the green indicator changes to red; the server name is displayed in red as well.

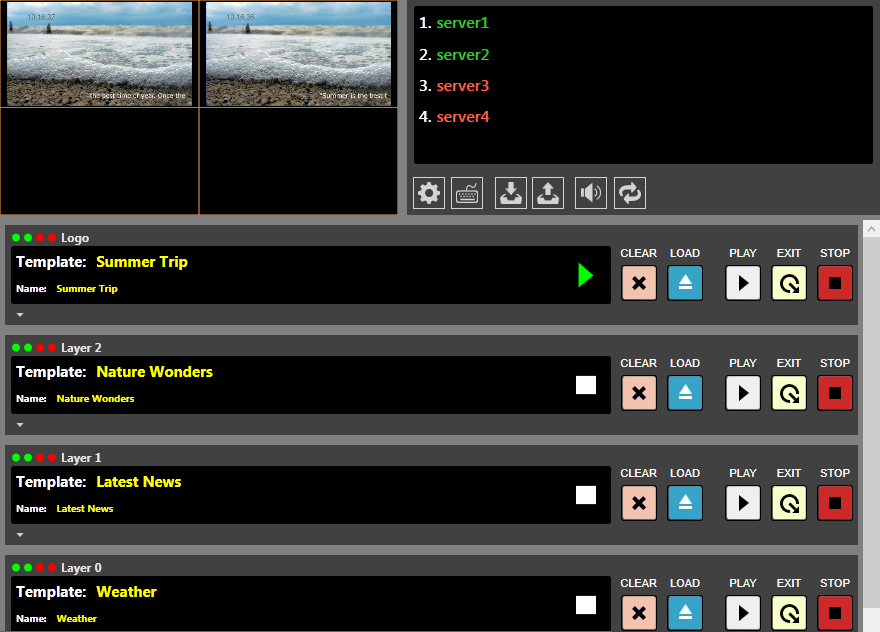

If two or more playout servers are defined in the Cinegy CG "Settings" dialog and all of them are properly connected, broadcasting is carried out on all of them. When connection to either of playout servers is lost, broadcasting proceeds on the connected server(s):

servers_disconnected

reconnect_button Press the "Reconnect" button on the main toolbar to re-establish connection.

Re-established connection to the main server does not automatically resume the CG template broadcasting on all layers. To restart the template, press the "Play" button for the corresponding layers.
