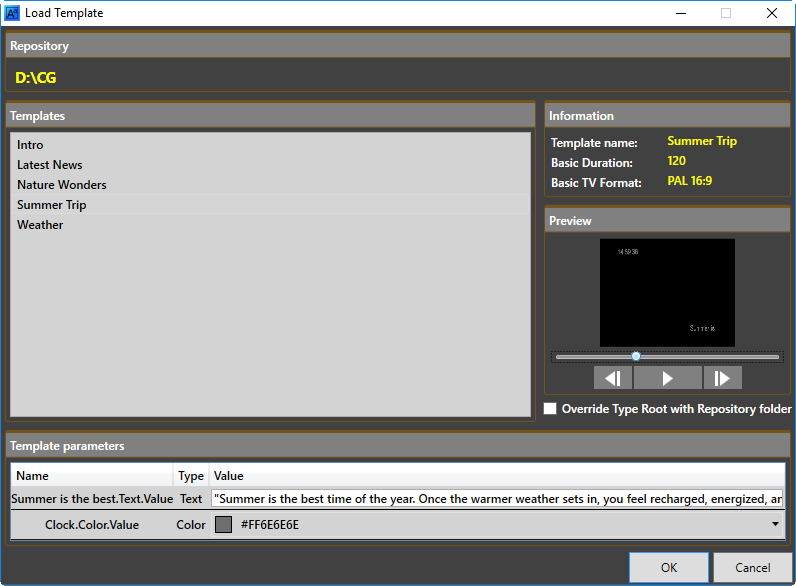

To load an existing CG template, press this button; the "Load Template" dialog appears:

type_control_load_template

The "Templates" panel contains a list of CG templates of the corresponding TV format available for loading. Choose the CG template you want to add; its preview will be displayed in the "Preview" window. You can view any frame of the template by dragging the time slider or using the playback buttons.


The arrow buttons jump to the first and last frame respectively.

load_template_play_button.png load_template_pause_button.png

The "Play/Pause" button toggles the playback mode.

Select the "Override CG Root with Repository folder" option to substitute the Cinegy CG root path with the Cinegy CG repository location for scenes preview.

Important
For more information on Cinegy CG repositories, refer to the Cinegy CG Root Folder paragraph of the Cinegy Playout Manual.

Above the "Preview" window there is the "Information" panel, where the basic CG template data, such as its name, duration and TV format are displayed.

The "Template parameters" table contains the variables of the CG template. You can edit the value of each variable by clicking in the "Value" field and entering the desired data.

Note
The CG template parameters are only displayed when the "Export" checkbox is selected for the respective variable on the "Variable" tab of the Cinegy Titler tool.
Important
For more information on how to make a variable available for export, refer to the Macros article.

Having set up all the necessary parameters, press "OK" to save them and return to the main "Cinegy CG" window.

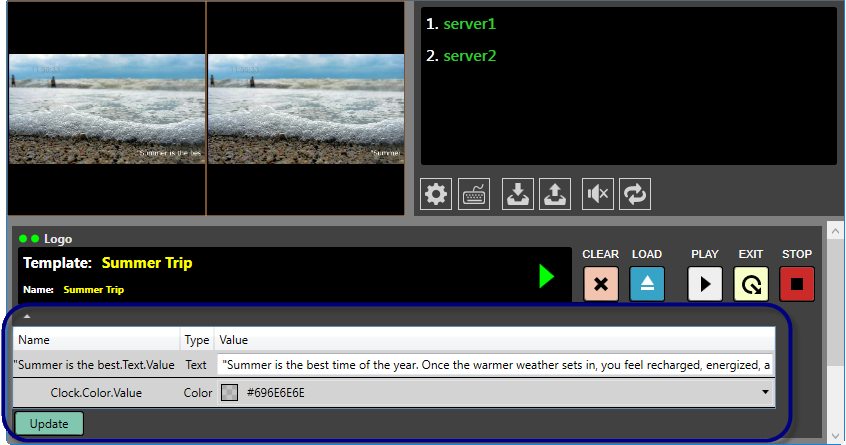

Cinegy CG also supports the ability to edit CG template parameters on-the-fly, when this template is on-air. To do this, expand the variables panel inside the given layer control panel in the main "Cinegy CG" window:

type_control_template_editing
Note
Updating CG template parameters on-the-fly is possible with the "Enable variables update" option selected in the Cinegy CG settings dialog box.

To apply the changes and display them in the "Preview" window, press the "Update" button.

Template Status

For each layer a CG template status is displayed on the left of the corresponding layer control panel. Possible statuses are as follows:


The CG template is on air.


The CG template is ready for playout or stopped.


The CG template is not loaded or not connected on the current layer.

Operating the Template Layers


You can start any CG template layer pressing the "Play" button on the right of the given layer. Alternatively, use F1…​F6 keyboard shortcuts.


Press the "Exit loop" button for the template to leave the loop, if any.


To stop a CG template layer, press the "Stop" button next to the "Play" button on the given layer. Alternatively, use Shift+F1…​F6 keyboard shortcuts.


To remove a template from CG layer, press the "Clear" button. To load another template, use the "Load" button.

mute_button

During the templates preview, it is possible to mute the audio coming from playout engines by pressing the "Mute" button.

mute_button_on

When pressed, the button is changed to indicate that the mute is on.
