To control one device from different Cinegy Playout servers simultaneously, Cinegy Event Manager should be installed on a separate PC connected to this device. The remote access to the computer should be configured via network from each Cinegy Playout server controlling the external device.

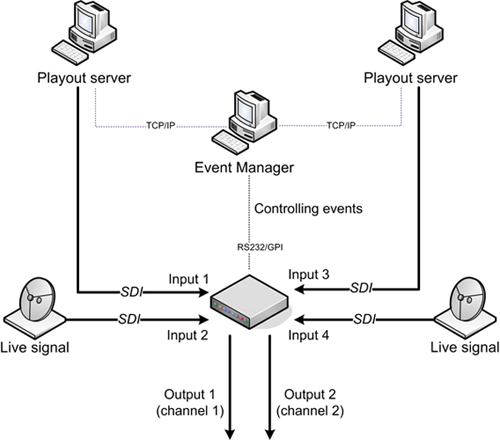

The diagram below shows one of the possible configurations with the remote Cinegy Event Manager.

Local Event Manager

The presented configuration allows you to use one external device for different channels independently.

Installation on Remote PC

To install the external event service remotely, follow the instructions below.

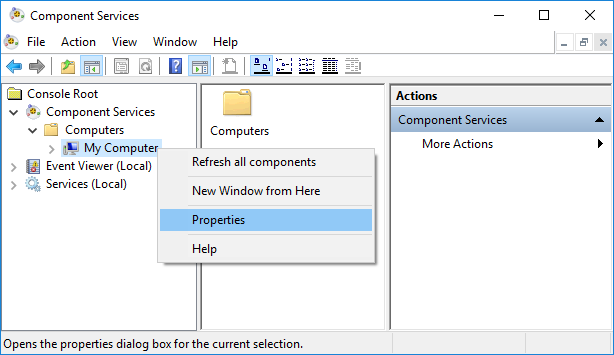

Set all the remote permissions to enable the service start remotely. Open the "Administrative Tools" folder in the Control Panel and double-click "Components Services". Then right-click "My Computer" in the appeared dialog and select the "Properties" command from the context menu:

Components_services_comp_properties

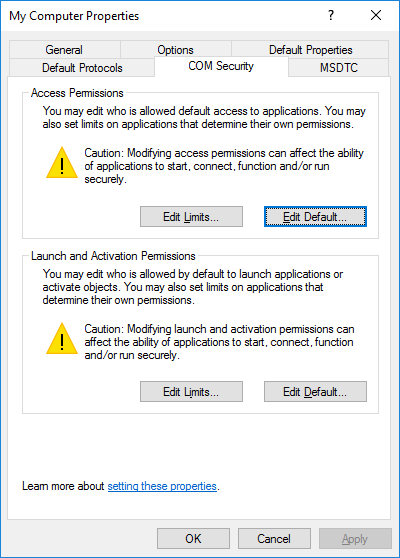

The "My Computer Properties" dialog appears. Here select the "COM Security" tab:

comp_properties

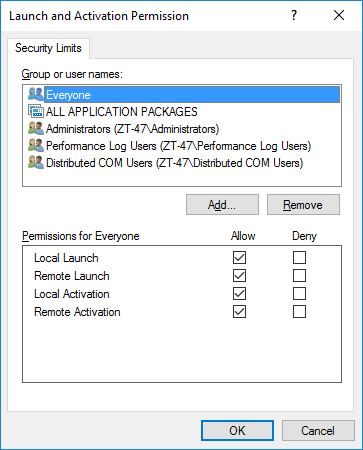

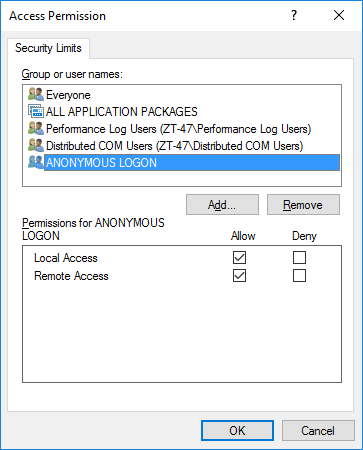

Press the "Edit Limits…" buttons for both sections and allow all the remote rights for the "Everyone" user (or for the appointed user logged on to all the Cinegy Playout servers) as shown below:

access_permission

launch_permission

Press "OK" to apply your settings; return to the "Component Services" dialog.

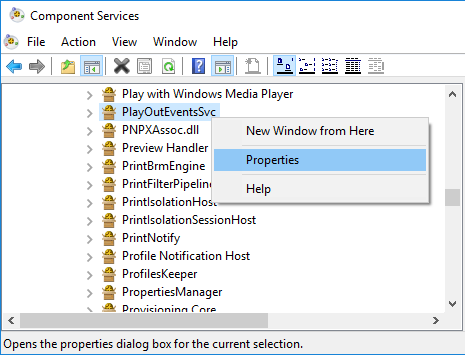

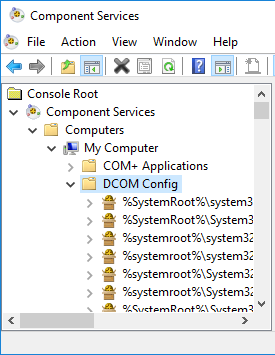

Select the "DCOM Config" folder and find there the PlayOutEventSvc component. Right-click it and select the "Properties" command from the context menu.

Components_services_DCOM

Components_services_PlayOutEventSvc

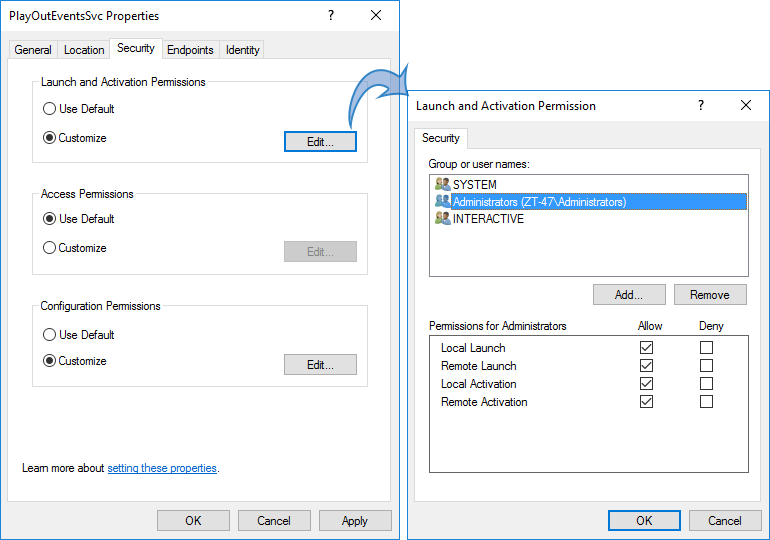

The "PlayOutExSvc Properties" dialog appears. Here open the "Security" tab and set the "Customize" radio button in the "Launch and Activation Permission" section. Press the "Edit" button and set up "Launch Permissions" in the same way as described above for the "My Computer" folder.

Properties_PlayOutEventSvc_LaunchPerm

Installation on Playout Servers

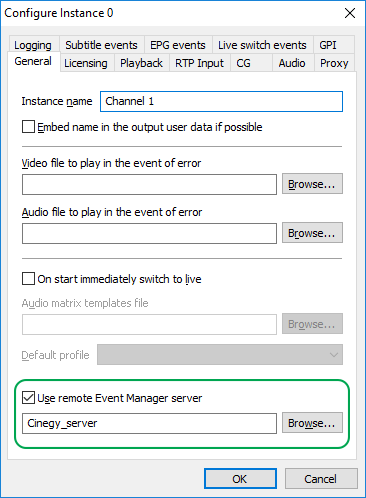

To set up the remote event service locally, use the Cinegy Playout configurator to configure each playout instance that will use the remote Event Manager. To do so, start the start Cinegy Playout Config utility, select the corresponding playout instance and on the "Global" tab define the remote PC (where the Event Manager is installed).

Remote Event Manager server

Make sure that the "Use remote server for external commands" option is enabled. To find the corresponding server, use the "Browse…" button.

From now every event commands will be transferred to the remote event service to control the external device.
