The "General" tab allows user to define the following settings:

Configure_engine_instance_general
  • Instance name – enter the desired title to be used as a custom instance name.

    Select the "Embed name in the output user data if possible" for the custom instance name to be embedded into the output RTP stream, letting other Cinegy applications like Cinegy Multiviewer decode and display this name. For details, please refer to the "Decode UMD info" option in Cinegy Multiviewer Configurator.

  • Video file to play in the event of error – is video file will automatically replace any playlist item which cannot be played or unavailable and play looped until the next valid item is started. If unset, the Cinegy Playout engine will play color bars. No audio will be played until a dedicated audio file is defined (see below).

  • Audio file to play in the event of error – this audio file will automatically play in a loop on top of the replacement video file (see above).

  • On start immediately switch to live – check the option to enable instant live playback directly on the engine start.

If this option is selected, it is possible to overlay the graphics objects over the live item.

Important
Refer to the Live Switch Events paragraph to get more information on graphics overlay implementation for live items.
  • Target aspect ratio – choose between the available options to adjust the graphics objects display over the live item. Select the "From AFD" option to keep the original aspect ratio of a default live item. If the "Squeeze" option is selected, the target video stream is adjusted to fill the entire frame.

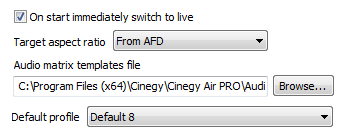

Selecting the "On start immediately switch to live" option allows to define the audio matrix that will be used for audio mixing. Choose the audio matrix template file in the "Default profile" list:

Audio_matrix_templates_cfg
  • Use remote Event Manager server – select the checkbox and specify a remote server running Cinegy Event Manager to control 3rd party baseband routers or other devices.

Important
Refer to the Cinegy Event Manager manual to get more information on its configuration.
Note
To get more information on secondary events, refer to the Secondary Events paragraph.
