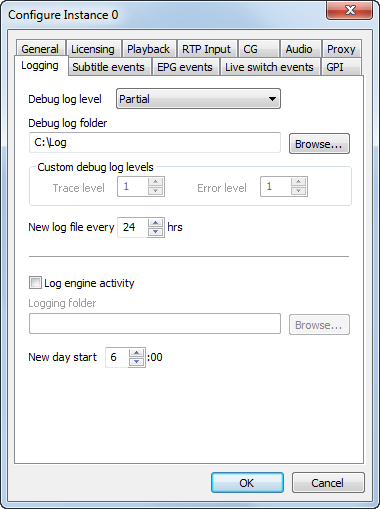

Configure_engine_instance_logging
  • Debug log level – define the level for the log file; you can choose "Full", "Partial", "Custom" level or "None" for no logging.

  • Debug log folder – define the location of the log file where the sequence of operations is recorded. Press the "Browse…​" button to locate the folder where the debug log file in the text format will be stored or simply enter the file path via the keyboard.

  • Custom debug log levels – manually choose the debug log level by changing values of trace level (0 – 10) and error level (0 – 10).

    Note
    This group is available for the custom level logging only.
  • New log file every – define the frequency of a new log file creation.

  • Log engine activity – select the checkbox to enable log files creation for an engine instance activity.

  • Logging folder – define the location of the log file that includes info about the engine activities. Press the "Browse…​" button to locate the folder where the log file in the text format will be stored or simply enter the file path via the keyboard.

  • New day start – define when a new broadcasting day starts using the following menu option:

    New_day

Activity Logging

With the "Log engine activity" option enabled, the information about the launched commands and other activity is added to the log.

The following is an Activity Log file description. All dates and times are in server local time. Events are line-delimited, one event per line.

  • Events to mark that Cinegy Playout has started and stopped (should appear first and last in log in normal operations, unless log has rolled over) are:

    "<date>","<time>","ENGINE","START"
    "<date>","<time>","ENGINE","STOP"
  • Events to show specific actions on the VIDEO output are:

    "<date>","<time>","VIDEO","BLACK"
    "<date>","<time>","VIDEO","BYPASS"
    "<date>","<time>","VIDEO","CLEAN"
    "<date>","<time>","VIDEO","NORMAL"

    Where:

    • BLACK means that video black is an output as a result of pressing the "BLACK" button in Cinegy Air.

    • BYPASS means that the configured video input signal is routed to the output as a result of pressing the "BYPASS" button in Cinegy Air.

    • CLEAN means all graphics and audio elements are now off (as a result of pressing the "CG off" button in Cinegy Air).

    • NORMAL means video output has returned to normal (for example following a BLACK or BYPASS event).

  • Events to show the triggering of secondary event operations on the engine (e.g. router control, Cinegy Type layer activation) are:

    "<date>","<time>","<device>","<command>","<op1>","<op2>","<op3>"
    Important
    Please see relevant device documentation for details of interpreting command and op codes.
  • Events that show activity on individual parts of the output are:

    "<date>","<time>","<device>","<event>","<unique ID>","<name>","<description>","<Traffic ID>","<Subtitle ID>","<EPG ID>","<Mark In/Out>","<duration>","<error flag>"

    Where device is one of the following values:

    • ENGINE means that the event is for Cinegy Playout.

    • VIDEO means that the event is for the primary video output layer; the following error flags are supported:

      • 0000 – no errors;

      • 1000 – media is unavailable or corrupt (the color bars are displayed);

      • 0100 – quality autodegradation has occurred;

      • 0010 – frame freeze has occurred.

    • LOGO means that the event is for the basic logo layer.

    • CG_LOGO means that the event is for a Cinegy Type layer on the LOGO (topmost) level.

    • CG_<n> means that the event is for a Cinegy Type layer on the nth level.

    • OVL_<n> means that the event is for the basic overlay layer on the nth level.

    • EVENT means that the event is for a secondary event (Event Manager device name is specified) layer.
