The "Enable Network Proxy Caching option" ensures quick and safe rundown broadcasting. Having configured the Network Proxy Caching option the Cinegy Playout engine will automatically start background rendering and encoding process in order to create local cache copy for remote footages. Using smart caching algorithm it takes into account the time when the material is going to be on air and the amount of space assigned to this local cache via the corresponding settings.

If this option is selected, only the most recent items will be played from their original location, and the rest of the rundown items will be played from the local proxy media folder. Thus, even if you immediately start playing the item, only its beginning will be played out from the remote footage. The item will be played out from the local cache on condition that there is enough CPU power for real-time or prior local cache creation and timely local chunk generation. In case a playlist has enough proxied material stored in the local cache, the Playout engine will still continue playback even if the access to the original clips is missing.

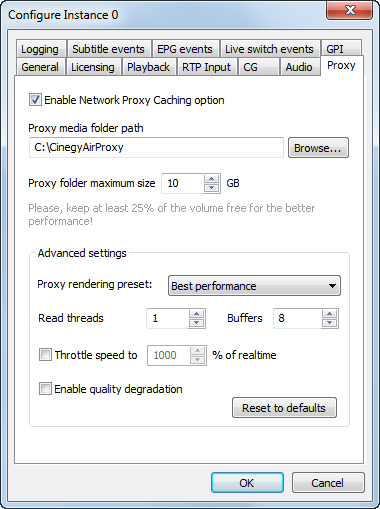

The proxy caching is configurable via "Proxy" tab:

Configure_engine_instance_proxy
Caution
The item proxying feature requires a dedicated license.

To set up proxy configuration, you should:

  1. Set the proxy folder path.

  2. Set the proxy folder size limit.

Caution
Leave at least 25% free space on volume for proxy to ensure stable work and smooth performance.

Advanced Settings

The following settings are available here:

  • Proxy rendering preset – choose one of the following proxy rendering presets: Best performance, High quality or Uncompressed.

  • Read threads – define the number of proxy threads from 1 to 32.

  • Buffers – define the number of proxy buffers from 1 to 16.

Proxy Throttling

The "Throttle speed to <number>% of realtime" option is used to set the proxy speed limit. As a result CPU usage will be decreased by increasing proxy time.

Note
Please note that if the proxy speed does not exceed the defined limit, throttling will not work.

The real time value depends on the current TV format frame rate. For example, PAL format frame rate is 25 fps. If you set the 1000% speed limit (250 fps) and the engine attempts to proxy the material at a speed over 250 fps, the time breaks will be added to the proxy process.

The minimal time of one chunk proxying for PAL format is:

100% of real time is 1000/25 = 40000 ms
200% of real time is 1000/50 = 20000 ms

Quality Degradation

A clip may contain media in three qualities: high, medium, and low. Only high media quality is used for proxying. If for some reason the high quality becomes unavailable, proxy files are not created for this clip. If the "Enable quality degradation" option is selected, the highest available quality (medium or low) of the clip will be proxied.

If a clip has been proxied with quality degradation while the high quality proxy files are needed, it can be reproxied via the "Drop proxy" command in Cinegy Air and Cinegy Studio.

Default Settings

reset_to_defaults_button

Press the "Reset to defaults" button to restore the default proxy settings.

Troubleshooting

To find out whether Cinegy Playout is playing the original media or its proxy copy, you can stamp the frames once they are rendered by creating a "StampProxyFrames" parameter with value set to "1" in the following Windows registry key:

  • if Instance 0 is used – HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Cinegy LLC\PlayOutEx

  • if Instance 1 is used – HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Cinegy LLC\PlayOutEx.1

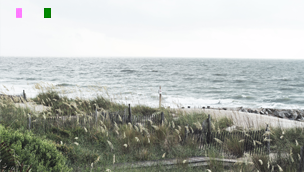

Frames being read from the proxy folder are marked with color boxes:

StampProxyFrames
