Important
For the list of supported video boards refer to Cinegy Air System Recommendations.

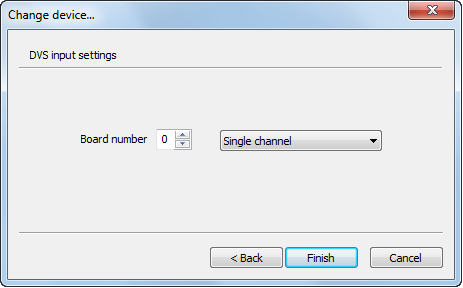

DVS Input

DVS_input

Define the board number from 0 to 9 and the channel mode. Press the "Finish" button to set the DVS input device.

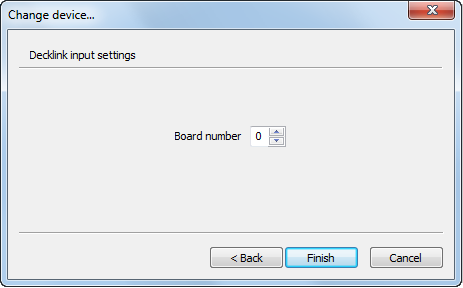

Decklink_Input

Define the board number from 0 to 7 and press the "Finish" button to set the DeckLink input device.

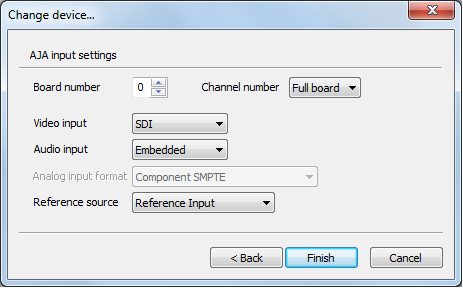

AJA Input

AJA_input

The following AJA input settings can be configured here:

  • Board number – define the board number from 0 to 7.

  • Channel number – use the drop-down list to select the channel number.

  • Video input – define the video input type by choosing SDI, Analog, HDMI or SDI 2 from the drop-down list.

  • Audio input – define the audio input type by choosing Embedded, AES, Analog or HDMI from the drop-down list.

  • Analog input format – choose the appropriate analog video input format from the drop-down list for the analog video input signal.

    Note
    The analog input format can be specified only when the analog video input is selected.
  • Reference source – define the reference source for the AJA input device by choosing between Reference Input, Video Input or Free Run from the drop-down list.

Press "Finish" to complete the setup and assign the AJA as an input device for the current channel.

AJA IP Input

AJA IP Input Settings

AJA_IP_input

On the first tab, define the following settings:

  • Board number – define the board number from 0 to 7.

  • Channel number – use the drop-down list to select the channel number from 0 to 7.

  • Reference source – define the reference source for the AJA IP input device by choosing between Reference Input, IP Input, or Free Run from the drop-down list.

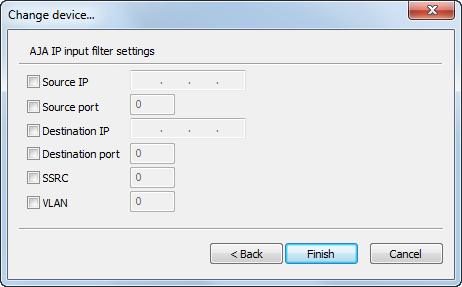

AJA IP Input Filter Settings

AJA_IP_input

Check the options below to define the needed parameters:

  • Source IP – define the source IP address.

  • Source port – define the source port number.

  • Destination IP – enter the destination IP address.

  • Destination port – enter the destination port number.

  • SSRC – define the unique synchronization source.

  • VLAN – define the VLAN interface number.

Once the settings are set up, press the "Finish" button for the changes to be applied.

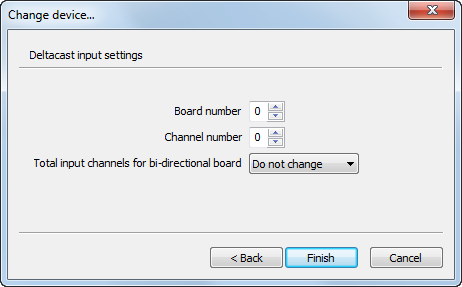

Deltacast Input

Deltacast_input

The following Deltacast input settings can be configured here:

  • Board number – define the board number from 0 to 7.

  • Channel number – define the channel number from 0 to 7.

  • Total input channels for bi-directional board – use the drop-down list to define the total number of input channels. The "Do not change" option means that the previously configured input and output channels division will be preserved.

    Note
    This setting is only topical for the new generation versatile Deltacast cards that support channels direction configuration.

Press "Finish" to complete the setup and set the Deltacast input device.

For.A HVS-100TB2 Input

hvs_input_settings

Define the board number from 0 to 7 and channel number from 0 to 4 for the For.A HVS-100TB2 input device.

Press "Finish" to apply the changes.

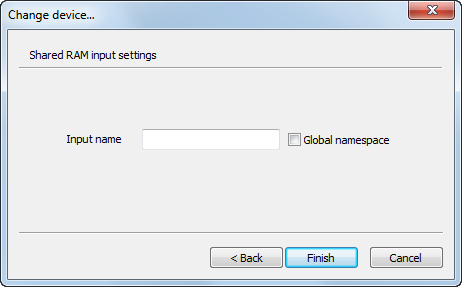

Shared RAM Input

The Shared RAM input can be used to receive a live uncompressed stream from another Cinegy application installed on the same machine, e.g. Cinegy Live or another Cinegy Playout instance.

Shared_RAM_input

The following Shared RAM input settings can be configured here:

  • Input name – define the name for your input device via the keyboard.

  • Global namespace – check the option to enable sharing between several users on the machine, or between applications and services.
