Cinegy Titler supports simultaneous broadcast of CG scenes with several layouts configured separately according to your broadcasting needs. You can add multiple layouts to the current scene from the list of available layouts depending on the original CG scene TV format.

TV System Available TV Formats

NTSC SD, HD, UHD

720x480 29.97 fps 4:3 720x480 29.97 fps 16:9 1280x720p 29.97 fps 1920x1080i 29.97 fps 1920x1080p 29.97 fps 3840x2160p 29.97 fps 1280x720p 59.94 fps 1920x1080p 59.94 fps 3840x2160p 59.94 fps

PAL SD, HD, UHD

720x576 25 fps 4:3 720x576 25 fps 16:9 1280x720p 25 fps 1920x1080i 25 fps 1920x1080p 25 fps 3840x2160p 25 fps 1280x720p 50 fps 1920x1080p 50 fps 3840x2160p 25 fps

Layouts Managing

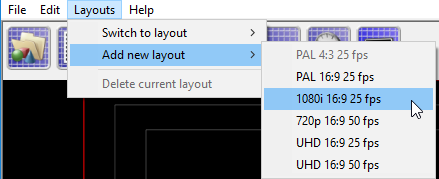

To add a new layout, go to the "Layouts" menu and from the "Add" drop-down list select the desired layout format:

layout_add_new

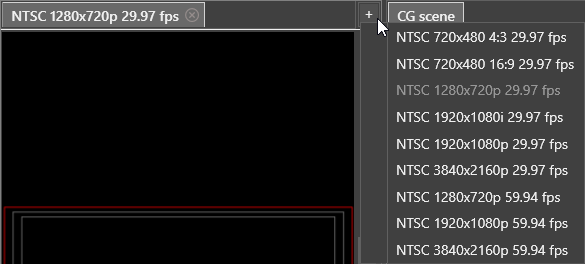

Or press the "plus" button in the top right corner of the canvas panel:

layout_add_new

A new layout will be added, become active, and ready for further setup.

Important
Refer to the Working with Objects article to learn about Cinegy Titler objects and their setup.

To switch between the existing layouts, go to "Layouts" → "Select" and choose the desired one from the list or simply go to its respective tab.

To delete the layout, press the "Remove layout" button on the corresponding tab.

layout_delete

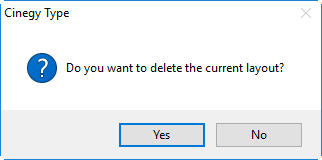

The confirmation dialog box appears:

layout_confirm_delete

Press "OK" to delete the current layout or "Cancel" to cancel the operation.

Note
The set of variables is common for all layouts.

When the CG scene with multiple layouts is sent to playout, each layout will be displayed according to its preconfigured TV format.

Converting Layouts

The created layout can be automatically converted to layout of another format. For this choose the targed format from "Layouts" → "Convert to" drop-down list. The new layout will be added to the template as a separate tab. The placement of the objects will be preserved and adjusted to the new format.

It is possible to have only one layout of each format within the template. The formats that are already used in the template are marked in the "Convert to" drop-down list.
