Cinegy Titler scenes can be used as templates which can be triggered by the Cinegy Air PRO automation. Declared variable parts of the templates can be updated either manually or automatically.

The Cinegy Titler editor offers the possibility to use variables. They are used for changing the parameters values in one place on a separate tab rather than having to change them in different places. These variables can also be exported to be directly edited in Cinegy Air PRO from the control panel before playout.

Creating a Variable

Some parameters controls have a Variable_icon.pngsign near them. This means that this parameter can be linked with a variable. Press this icon for the drop-down menu to appear:

Link_menu

Select the "Create new…​" command to create a new variable for this parameter. The icon will change to Variable_linked_icon.pngsymbolizing that this parameter is linked with the variable. It will also be added to the list of the variables on the "Variables" tab:

Variable_tab

It is also possible to create a new variable directly on the "Variables" tab. Press the "New" button and specify the type of the variable from the drop-down list that appears:

Variable_create_new

Depending on the selected variable type, specify its value. You can also change the default variable name by double-clicking its default name.

To rename the variable, double-click the default name and enter the new one:

Variable_rename

Having created a new variable, you can link it with the parameter of the corresponding type. To do this, press the Variable_iconicon next to this parameter and select the variable from the "Link" context menu:

Variable_linking
Tip
Many items can link to one variable. For example, two distinct text objects can be set to the same name parameter, or have their color controlled from a single color variable.

String Variables

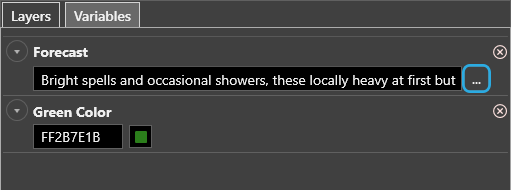

If the variable of string type contains long text, just one line with the beginning of the text will be displayed along with the "…​" button that opens the extended text window:

Variables_string_browse

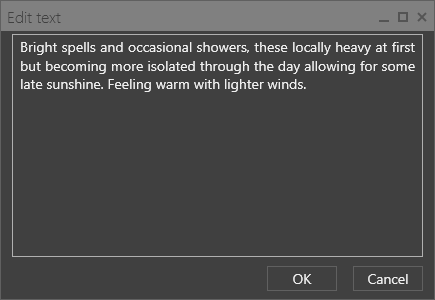

In this window the variable text can be edited:

Variables_string_edit

Linking a Variable to File

It is possible to link any parameter to the variable of the "File" type. The variable value is read from the file and applied for the parameter. If the file is updated or overwritten, the variable value is automatically updated. One file can be linked to several different parameters of the corresponding type.

Caution
Be sure to link the parameter to the file of corresponding type otherwise you will receive the error message.

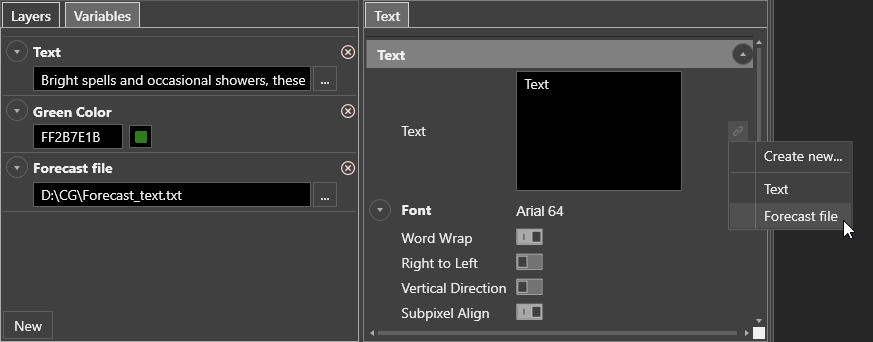

For this, create the variable of "File" type on the "Variables" tab and define the file by pressing the "…​" button. Then choose the parameter which will take the value from the defined file and link it with the newly created variable.

Variable_link_file

Unlinking a Variable

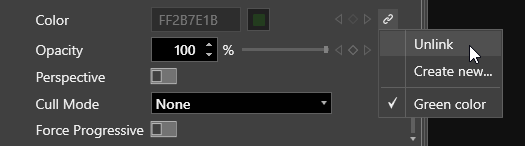

To unlink the defined parameter from the variable, press the Variable_linked_icon.pngbutton near it and choose the "Unlink" command from the drop-down menu:

Variable_unlink

Deleting a Variable

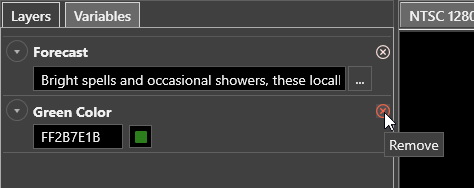

To delete the specified variable, press the "Remove" button:

Variable_delete

If this variable is linked with the parameter, the following dialog box will appear asking you to confirm your decision:

Variable_delete_confirm

If this variable is deleted, the linked parameters will become unlinked, and the values will be set to the last variable value.
