Text-based objects consist of static text, clock, marquee and roll objects. They have common transformation, content and color parameters, as well as respective effects as a preset. They can be transformed back to static text and vice versa.

The following parameters for the text-based objects are discussed here in detail:

Static Text


A static text object is used for different kinds of text fields in a fixed position. To add this object, press the "New Text Object" button.

Content

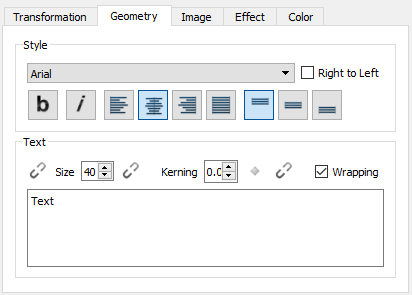

The text for the object can be specified in the "Geometry" tab:

geometry_tab_text_styles

Up and Down buttons

Here enter the text to be displayed and specify its formatting parameters, such as size and kerning. These values can be specified by pressing the ▴ or ▾ buttons or entered via the keyboard.

Select the “Wrapping” checkbox to split long text into lines inside the text object box on the canvas without actual line breaks.

Define the text font by choosing the desired one from the pull-down list.

Note
Please ensure that the custom set of fonts is installed on both working and playout stations.

Press the corresponding buttons to set the font style (bold and/or italic) and horizontal and vertical alignments of the text.

Select the "Right to Left" checkbox to enable the right-to-left languages writing style.

The results of these changes will be visible in real-time within the canvas area.

Marquee / Roll

New_Marquee_Object

The marquee object is most commonly used to create news tickers allowing the text to move from right to left on the screen. To add it to your scene, press the "New Marquee Object" button on the objects panel.

New_Roll_Object

The roll object is similar to the marquee, except that the text slides from top to bottom or vice versa. To add it to your scene, press the "New Roll Object" button on the objects panel.

Specify the text for the marquee (roll) object in the "Geometry" tab.

Note
Refer to Working with Objects to learn more about text formatting.

Parameters

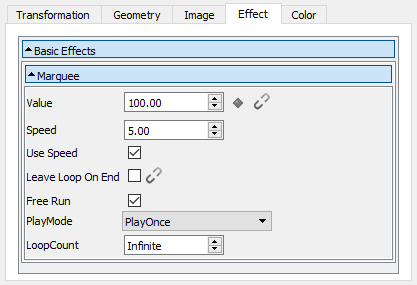

Go to the "Effect" tab to specify the marquee (roll) object parameters.

Effect_Marquee_parameters

Modes of Movement

There are two animation modes for the marquee object – movement by percentage value, and movement by absolute speed.

Value

The "Value" field defines percentage of progression of the text through the complete scrolling animation at any given point. If you look down on the timeline, you will see the "Text.Marquee.Value" channel with start and end points marked with diamonds.

Marquee_value

At the start point the marquee value is 0% which means that no portion of the text is visible on this initial frame. When you scroll through the timeline, you will notice that the value of this field is increasing before reaching 100% at the final frame. This means that for the final frame the text has completed scrolling and the final trailing character will now have moved from view.

No matter how long the text value entered into the object is, the animation will complete within the specified time. However, this can result in text that moves at a rate that is unsuitable.

Speed

The "Speed" value specifies the speed of the characters movement in pixels per frame.

If the "Use Speed" option is selected, the characters move with the speed defined in the "Speed" field, and the "Value" parameter is ignored. This is a great way to be sure that text will move at a readable rate, although consideration of the overall display duration must now be given.

Playback Mode

It is possible to make text scrolling follow a loop or ping-pong playback path. To do this, select the corresponding playback mode (Loop or Ping Pong) from the "PlayMode" drop-down list and specify the number of repetitions in the "LoopCount" field. To play the marquee just one time, set the "PlayMode" to play once. These operations only have an effect when working with the "Speed" mode of movement.

Free Run

"Free Run" feature relates to the global loop. Let us consider its effect by an example.

Suppose you have a very long text for the marquee object. In order not to make a very long duration for the object, you can use the following trick: create a global loop at the end of the object duration and set it to loop infinite number of times.

Free_Run_Loop

As a result, the marquee text will play until the beginning of the loop, and if the "Free Run" option is enabled, the text will continue to slide continuously until stopped manually. If this option is not enabled, the text will constantly jump back to the position of the first loop frame, or in ping-pong mode run backwards.

Leave Loop on End

This option is useful when used together with "Free Run" feature.

When you use the previously described trick, with the "Leave Loop On End" option enabled the marquee will leave the loop automatically as soon as its text ends and play until its end.

Analog Clock

New_Clock_Object

The analog clock object allows you to add time display to your scene and configure it according to your needs. To add it to your scene, press the "New Analog Clock Object" button on the objects panel.

By default, the resolution of a newly created analog clock object is set to 10. It is possible to change this value according to your needs on the "Geometry" tab.

Digital Clock


The digital clock object allows you to add time display to your scene and configure it according to your needs. To add it to your scene, press the "New Digital Clock Object" button on the objects panel.

By default, the digital clock object is created as a running clock. It is also possible to add a digital clock caption on the "Geometry" tab.
