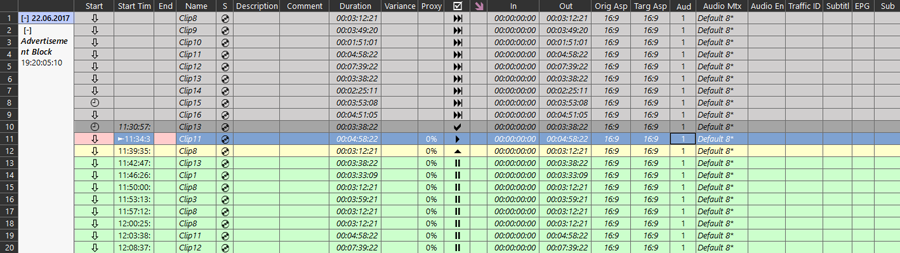

Column headers of the playlist table include the corresponding field names. Numerous fields exist to control the playlist. If the column is out of view in the main window, it can be shown by horizontal scrolling of the playlist table. Each column can be resized by positioning the mouse pointer on the grid line between the field names, and dragging the sizing tool left or right to adjust the column size.
The playlist panel view can be configured using the "Show columns" dialog. To invoke the dialog, right-click the table header and click the "Customize…" command or use the "Customize columns" command from the "Edit" main menu:
The following dialog appears:
Use the "Move up" and "Move down" buttons to reorder the columns.
Press the "Reset" button to return to the default settings.
The column names in the list on the left show the columns that are not included into the current view. The list on the right shows the columns that are included in the current view. To add a column to the view, select the column name from the list on the left hand side and press the "Add –>" button. To remove a column, select it in the right hand side list and press the "<– Remove" button.
Cinegy Air provides the possibility to enter and edit custom metadata values directly in the playlist table.
To create a new playlist column for custom metadata, press the "Create…" button.
The following dialog appears allowing you to set the custom column name and its data type:
The data type in the column can be plain text or boolean value.

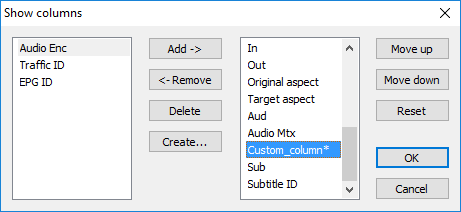

Having specified the column parameters, press "OK". The custom column will be added to the list, marked with an asterisk:
Use the "Delete" button to remove the custom metadata column from the playlist table. This button is active only for custom metadata columns selected in the list on the right.
The leftmost column displays a line numbering. The programs dates and blocks names are shown in a tree-like structure in the next column. Each program or block can be collapsed/expanded if necessary.
A quick overview of the columns available in the playlist panel view is given below.
Cinegy Air uses the following start trigger types displayed in the "Start" column of the playlist panel: "Follow", "Clocked" and "Join-in-progress".
In this column, the manually entered or automatically calculated start time of the Cinegy Air playlist item is shown.
This column displays the "Manual end" trigger. Also the corresponding icons for the items included into the loop playback are displayed in this column.
This column displays the program and block names as well as the Cinegy Air playlist items names.
The icon in the "S" column shows the item source. For example, a live item is indicated by a camera icon, a dummy item is indicated by an empty crossed circle icon.
This column contains the item description.
Here you can add your own comments.
In this column the duration is shown in hours:minutes:seconds:frames.
This column displays any timecode inconsistencies regarding start time and duration of previous and next items.
Here the proxy status of the item is displayed in %.
This column displays each playlist item status. The status of items can be "live", "skipped", "ready for playout" etc.
This column is headed with an arrow icon. It displays the command number and the presence of a logotype specified for the current item.
In and Out
The In and Out timecodes for each item are shown in these two columns.
This column defines the original aspect ratio of a playlist item.
This column defines the target aspect ratio of a playlist item.
This column displays the number of audio channels that a playlist item contains.
This column defines the audio matrix preset used for playlist items playback.
This column defines the audio encoding profile containing Dolby® Digital and Dolby® E Professional Encoder settings.
This column defines the 3rd party Traffic ID of the item.
This column defines the subtitle ID value of playlist item.
This column defines the EPG ID value. This value is editable only for programs; items inherit the value automatically, so that this field is read-only for them.
This column shows if any SRT/STL subtitles are attached to a playlist item.

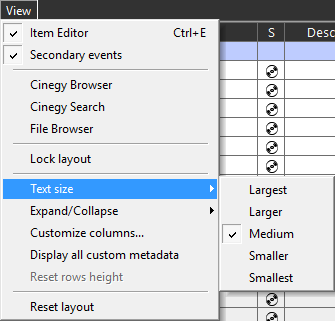

To change the font size of the currently open playlist, select the desired size in the "Text size" submenu of the "View" main menu:
|This option affects the display of the playlist, timeline and monitor panel text size.|
Collapse and Expand

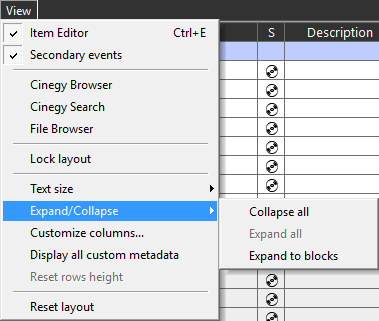

These functions are available for both program and block contents. To collapse or expand all of the playlist components, use the corresponding command from the main menu ("View" > "Expand/Collapse"):
Collapse all – collapse all playlist components up to the program items.
Expand all – expand all playlist components.
Expand to blocks – expand all playlist components up to the block items.
Selective Collapsing and Expanding
To collapse or expand a single program or block, click the corresponding sign, either "+" or "–" on the left of the program date or the block name:
The playlist row height can be changed by positioning the mouse pointer to the first column with the rows numbering and dragging the sizing tool up or down to adjust the rows height. To reset the rows default height, use the "Reset rows height" command from the "View" main menu.
|Using "Reset layout" command from the "View" main menu also resets playlist row height.|
