Cinegy Titler supports simultaneous broadcast of CG scenes with several layouts configured separately according to your broadcasting needs. You can add multiple layouts to the current scene from the list of available layouts depending on the original CG scene TV format.
|TV System||Available TV Formats|
NTSC SD, HD, UHD
720x480 29.97 fps 4:3 720x480 29.97 fps 16:9 1280x720p 29.97 fps 1920x1080i 29.97 fps 1920x1080p 29.97 fps 3840x2160p 29.97 fps 1280x720p 59.94 fps 1920x1080p 59.94 fps 3840x2160p 59.94 fps
PAL SD, HD, UHD
720x576 25 fps 4:3 720x576 25 fps 16:9 1280x720p 25 fps 1920x1080i 25 fps 1920x1080p 25 fps 3840x2160p 25 fps 1280x720p 50 fps 1920x1080p 50 fps 3840x2160p 25 fps

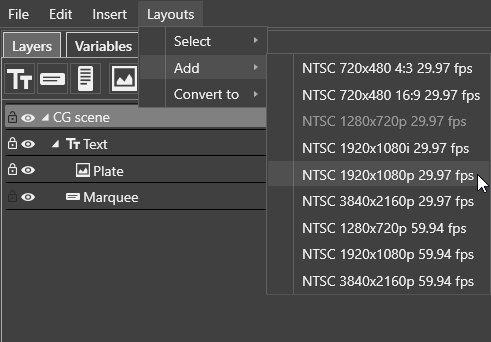

To add a new layout, go to the "Layouts" menu and from the "Add" drop-down list select the desired layout format:

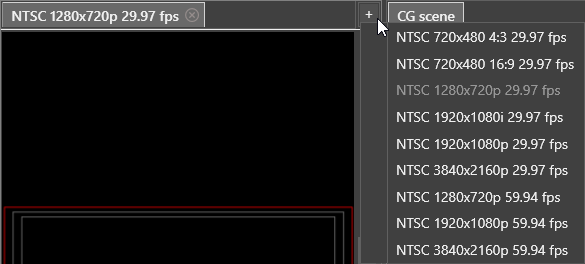

Or press the "plus" button in the top right corner of the canvas panel:
A new layout will be added, become active, and ready for further setup.
|Refer to the Working with Objects article to learn about Cinegy Titler objects and their setup.|
To switch between the existing layouts, go to "Layouts" → "Select" and choose the desired one from the list or simply go to its respective tab.
To delete the layout, press the "Remove layout" button on the corresponding tab.

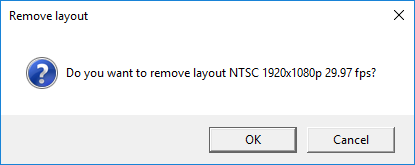

The confirmation dialog box appears:
Press "OK" to delete the current layout or "Cancel" to cancel the operation.
|The set of variables is common for all layouts.|
When the CG scene with multiple layouts is sent to playout, each layout will be displayed according to its preconfigured TV format.
The created layout can be automatically converted to layout of another format. For this choose the targed format from "Layouts" → "Convert to" drop-down list. The new layout will be added to the template as a separate tab. The placement of the objects will be preserved and adjusted to the new format.
It is possible to have only one layout of each format within the template. The formats that are already used in the template are marked in the "Convert to" drop-down list.
|If you try to convert a layout to the format that already exists within this template, you will receive a warning message that content will be overwritten.|
