Cinegy Capture Control

Reading time ~2 minutes

Cinegy Studio layout allows to monitor and control Cinegy Capture recording session. A separate panel is dedicated for these purposes.

Switch to the layout editing mode and select the "Capture Control" command from the context menu:

capture_control
Important
 For complete description of the given panel, please refer to the Capture Panel article in the Cinegy Capture Manual.

The Capture Control layout panel can be adjusted in two display modes: normal and compact. In layout editing mode, select the proper context menu command to apply the corresponding display mode:

capture_control_view

Normal Capture Control display view includes the "Preview" monitor, the detailed information window and a set of buttons used to control the recording session. The compact view contains the same information displayed in the smaller layout window saving the layout space.

Note
 The description of the Capture Control panel further in this article is represented in normal view mode.

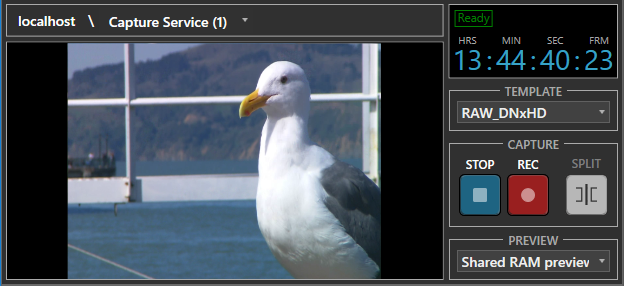

The Capture Control panel has the following interface:

capture_control_interface

The left part contains the "Preview" monitor, which displays the video material in selected preview mode.

The upper part of the monitor contains a window with the server host name, where the Cinegy Capture Control application is installed. The drop-down list next to it displays configured and running Capture Services.

upper_control_panel

To change the current server host, select it by clicking its name and enter new host location in the related field of the "Change Server Host" configuration window that appears:

change_server_host

The upper right part of the Capture Control panel contains time controls with the current status of the selected engine displayed in its topmost part.

Note
 Refer to the Time Controls section to learn more about Capture Engine statuses.

In the "Template" drop-down list the Engine templates configured for the currently selected Cinegy Capture Engine are listed. Choose the needed template to be used for recording session from the drop-down list.

Note
 Refer to the Templates Panel article within the Cinegy Capture Control Manual.

In the "Capture" window the "Stop", "Record" and "Split" buttons are available for direct capture session management:

control_set
Note
 Refer to the Capture Controls section to get information on controlling the capture session.

The "Preview" window allows to choose the preview mode configured in the selected Cinegy Capture Engine:

preview_mode
