Configuration of the Cinegy Air PRO application is performed on the "Cinegy Air PRO" tab:


The settings need to be defined here are described below in this article.

Global Settings


Select the "Connect automatically" checkbox to make Cinegy Air PRO automatically connect to the playout server(s) on startup.

Select the "Swap control monitors" checkbox to swap the position of the control monitors on the playout control panel.

Refer to the Playout Control Panel section for the description of Air control monitors.

Select the "Don’t use Cinegy Browser" option if it is not required to use the built-in Cinegy Browser for browsing through the Cinegy Archive database.


Security settings provide user with the possibility to define the startup protection parameters as well as manage user’s permissions for editing playlist in active mode or enabling broadcast control.

To activate the security protection for Cinegy Air Control, press the "Security" button; the following dialog box appears:


Here enable the password protection by selecting the corresponding checkbox. Press the "Add" button to add a certain user or the whole group to the corresponding user group. The following dialog box appears:


Here define the user or the whole group to be searched for.

Then press the "OK" button to apply the changes. Having set up the security parameters, the Cinegy Air control application will be launched with the security protection activated.

Refer to the Starting the Application article for more details about authorizing the Cinegy Air control application.


Press the "Remove" button to remove the selected member from the corresponding user security group.

All logon events are tracked by the Cinegy Air application and written to the user log file when the security protection is activated.

Channels Configuration

The list of channels to control can be configured under the "Channel" panel. Multi-channel configuration is achieved by adding and configuring more than one channel. Each channel must be configured individually.

Click the empty line underneath the list of channels to add a new channel for broadcasting.!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Once the channel is created, its name stays highlighted by red until you specify its playlist and engine parameters.
In order to prevent the time differences between the control and playout stations, all Cinegy Air clients take the current time from the playout server.
Controlling remote instances and defining the secondary (slave) engine in multi-channel control mode is not supported in Cinegy Air SOLO.


Press this button to delete the selected channel.

Up_button down_button

Use these buttons to change the channels order.

The following diagram represents the multi-channel control mode configuration:


Time Zone

Time zone configuration is based on the DST shift. In order to ensure correct scheduled playback of playlist items during Daylight Saving Changes it is possible to define a time zone or fixed time offset for each channel you are configuring.

Choose the required time zone by selecting one from amongst options presented in the "Time zone" drop-down list. Selecting the time zone ensures the correct time offset for DST.

ISO 8601 UTC-aware time and date strings are used to define time in playlists stored in XML, preventing any ambiguity during seasonal time changes.

Selecting the "Use fixed offset" checkbox enables entering the required time offset in the time picker specifying hours, minutes and seconds. Using fixed offset defines the server’s own time regardless of the set time zone.

If "Use fixed offset" checkbox is not selected, the predefined time zone will be used instead.

Time zone settings are set separately for each channel you are configuring.
After applying time zone changes it is required to restart the Cinegy Air Control application.

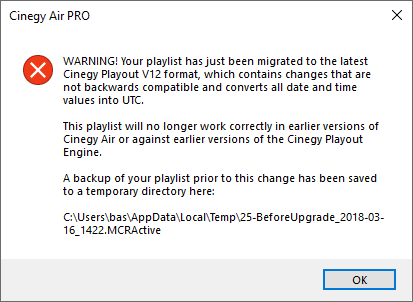

DST change affects playlists created using Cinegy Air v11 and converts them into a new format; once the Cinegy Air control application launches the following warming appears notifying about playlist format change:


TV Format, Playlist and Engines Configuration

In this section define the following settings:

  • Video system – TV system used for broadcasting.

  • Aspect ratio – aspect ratio for the video stream (4:3 or 16:9).!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!1

  • Audio level reference – the zero dB level for the VU meter.

  • Preserve original audio – the option for disabling the audio volume control on the playout control panel.

  • Engine 1, 2 – master and slave playout servers.

    Select the "Local" checkbox if Cinegy Playout is installed and launched on the local computer. In the corresponding "#" field next to the server IP address, define what Engine instance will be used to process the specified playlist.

    Refer to the Multi-Instance Playout Service paragraph in the Cinegy Playout Manual to learn how to create additional Cinegy Playout instances.
    The remote control feature is unavailable in Cinegy Air SOLO, the "Local" checkbox is disabled.
  • Active playlist – file with the *.MCRActive extension that contains the content of the active playlist.

    You can browse for an existing file or simply enter the file name in the defined location for a new file. The playlist will be restored from this file when you launch the Cinegy Air application in one of control modes. The playlist is automatically updated after each applied change. When the Cinegy Air application is closed, the currently used playlist is automatically saved to this file. If the *.MCRActive file is stored on the shared network drive and its location becomes unavailable, the applied changes will not be saved and the following error message will appear:


  • Backup location – specify the backup playlist location for the .MCRActive and .bak files creation in the event when the access to the primary location is lost. In case the location is unavailable or there are no sufficient rights to access it, the corresponding error message will appear:


  • Auto Append Playlist - select this checkbox to enable the auto-append feature. Once selected, the "Auto append folder" field becomes editable.

  • Auto append folder – the watch folder for the playlists to be automatically appended to the end of the current playlist. Once a playlist file is detected in this folder, validation of its TV format compatibility as well as its start date and time is performed automatically. If the playlist is scheduled to start in the future (i.e. it will not start immediately) and has a compatible format, it will be appended to the current playlist and the original playlist file will be moved to the "Processed" subfolder. If the playlist is scheduled to start in the past or has an incompatible format, it will not be appended and will be moved to the "Declined" subfolder. In this case the corresponding error message will be logged to the specified user log folder.

  • Auto item update – this option enables an automatic update of items modified outside the playlist. Refer to the Auto Update of Playlist Items section for more information about this functionality.

    The result of the automatic item update operation is irreversible and may lead to unwanted changes in the playlist.
  • Shared playlist – this option allows editing the playlist from several computers simultaneously. If the playlist is changed on one computer, the changes will automatically appear in the playlist of the Cinegy Air control application running on the second computer. Refer to the Two Cinegy Air Clients, One Shared Playlist and One Playout Server paragraph for more information about this configuration model.

    Please note that the proper system time synchronization between two machines running Cinegy Air control applications ensures the correct work of "Shared playlist" option.
  • No targeted channel override – select this option to prevent overwriting of the channel name value in MCRItems / MCRLists inserted in the playlist.

    Refer to the Insertion into Targeted Channel paragraph for more information on this feature.

CG Setting

  • Remote CG – the server and the instance number of the separate dedicated playout instance that renders Cinegy Titler templates.

  • CG Repository – the folder location where Cinegy Titler templates are stored.

    Cinegy Titler templates are applied to items as secondary events.
    Refer to the Creating a New Titler Scene article within the Cinegy Titler Manual to learn how to create Cinegy Titler templates.

Audio Settings

The audio matrix presets storage location can be defined in the "Audio Matrix presets" field.

If the audio matrix XML file cannot be found, opened or successfully processed, a warning prompt will be shown at the Cinegy Air startup. The Cinegy Air control application will be loaded, but it will not be possible to change any audio matrices or audio encoding profiles. The valid audio matrix XML file should be specified in Cinegy Air configurator.

The "Legacy sequence audio" parameter defines how to process Sequences without master audio tracks prepared in Cinegy Desktop 9.1 and earlier.

Refer to the Sequence Compatibility article for more information on "Legacy sequence audio" handling.

Aspect Ratio

There are two parameters defining the aspect ratio values of the items inserted into a playlist.


Using the "Default original aspect" drop-down list, define the original aspect ratio value to be used by default for the source files inserted into a playlist. To define the aspect ratio value automatically, choose "Auto".

In the "Default target aspect" drop-down list, choose the target aspect ratio to be applied to playlist items. Set this value to "Original" to keep the original aspect ratio of a playlist item. If the "Stretch" value is selected, the target video stream is stretched to fill the entire frame, no cropping is applied.

Refer to the Aspect Ratio section for detailed information about playlist item display on the playout screen.

Variance Threshold

If there are gaps or overlaps between items start times in the playlist, the variance value is displayed in different color in the corresponding playlist column. A different color indication is also applied for the item duration and start time of the next item when there is a time discrepancy between them. In the "Variance threshold" field, you can specify a variance value, exceeding which leads to the use of the following indication: red for negative variance values and blue for positive variance values. If the discrepancy is below the defined timecode value, no color indication is applied; the variance value is calculated and displayed in the corresponding playlist column.

Editing Secondary Events in the On-Air Items

To be able to add, change, or delete secondary events in the on-air item, enable the "Edit on-air item secondary events" option.

Having defined all necessary parameters, press "OK" to finish configuring the Cinegy Air control application.
