Establishing Connection

export

In order to perform export operations it is required to specify the necessary information to connect to the SQL server and Cinegy Archive database.

Source Connection

source_connection_settings

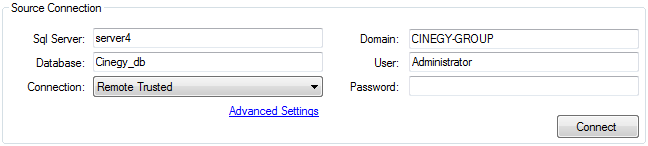

Type in the SQL server name or IP address and database name in the corresponding fields. Choose the connection type from the drop-down list:

export_connection_type

If it is needed to change the plug-in settings, press "Advanced Settings"; the plug-in settings dialog will be launched.

Enter the domain name, user name and password.

Note
The "Domain" parameter is not topical for SQL connection type.

connect_button

Press the "Connect" button to start connection to the source.

The progress bar on top of the window shows the progress of connection process:

source_connection_progress

It is not possible to change connection settings during the process of connection and while being connected to one source, all the options are inactive.

cancel_button

Press the "Cancel" button if you need to stop the connection process.

In case you are trying to connect to a remote server with an incorrect address or using the wrong login or password, an error message appears.

disconnect_button

To stop connection to the server, press the "Disconnect" button, which replaces the "Connect" button when connection is successful.

Target Package

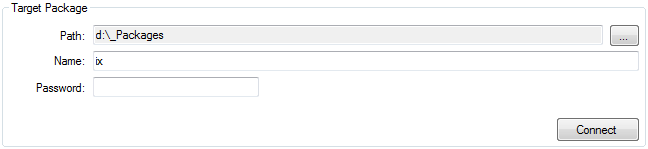

The system automatically generates a target package for the exported data, which is placed in the folder specified in the "Path" field by default:

target_package_settings

define_path_button

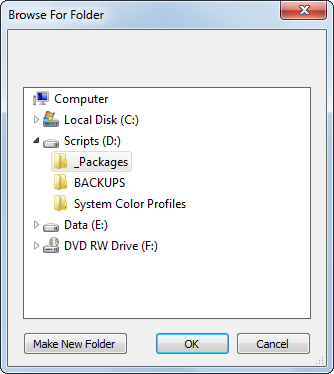

Press the "Browse" button to change the location of the target package. The standard dialog for folder selection will be launched:

browse_for_folder

Select the desired location from the list or create the new one by pressing the "Make New Folder" button. Press "OK".

Define the name of the target package and password if necessary in the corresponding fields. The name of the archive file (*.cxp) will be the same as the name of the folder you are connected to.

Note
It is not possible to overwrite an existing package – either delete it or create a new folder for your package.

connect_button

Press the "Connect" button to establish connection.

Exporting Data

transfer

Having connected to both source and target packages you are able to proceed with exporting files.

next_button

Pressing the "Next" button launches the dialog where you can select the data for exporting. The "Source" tab allows you to choose objects for exporting. In the "Options" tab define export settings.

Source

In the "Source" tab choose the locations from the explorer tree by pressing the and buttons and tick off the nodes you need to export:

choosing_files_for_export

Options

options

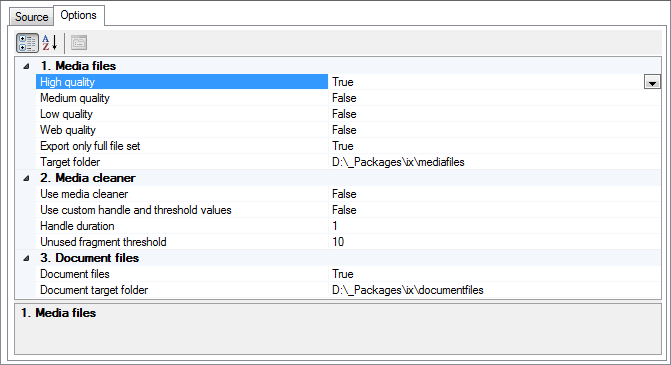

The "Options" tab contains three categories of options:

  1. Media files;

  2. Media Cleaner;

  3. Document files.

export_options

Media Files

  • High quality – select "True" to allow export of high quality media files.

  • Medium quality – select "True" to allow export of medium quality media files.

  • Low quality – select "True" to allow export of low quality media files.

  • Web quality – select "True" to allow export of web quality media files.

  • Export only full file set – select "True" to export media files only in case when a master clip contains files of the previously selected qualities only.

  • Target folder – a read-only field displaying the path to the media files target folder.

Media Cleaner

  • Use media cleaner – select "True" to use media cleaner to export only the needed parts of media files.

  • Use custom handle and threshold values – select "True" to use custom handle and threshold values for cleaning process instead of default values taken from database global parameters.

Important
Refer to the Global Parameters and Settings article in the Cinegy Enterprise Manager Manual for more information on global database parameters setup.
  • Handle duration – enter duration of handles inserted before and after used footage fragments to avoid compression artifacts on the cut edges in seconds (min. value is 1 second).The default value is 1 second.

  • Unused fragment threshold – threshold for an unused fragment to be removed during the cleaning process, i.e. if the value of an unused fragment is less than the value defined in this field, there will be no cuts in the new footage at this point, and the unused fragment will be included in the cleaned footage.

Document Files

  • Document files – select "True" to allow export of document files.

  • Document target folder – a read-only field, which displays the path to the document target folder.

settings_view

Use these buttons to switch between categorized and alphabetical view of the exporting options.

Cinegy Transfer Package Creation

finish_button

Press the "Finish" button to start exporting.

The progress of export process with details is shown in the progress bar on top of the window:

exporting_progress

package_created

When export process is finished, the transfer package with all the contents is shown in the next dialog. You can browse the explorer tree using the plus_button and minus_button buttons:

target_package

The package you receive contains the main *.cxp file and automatically generates separate folders for media files, logs etc.
