Establishing Connection

The process of connection to both source and target locations is similar to the one described in the Export Operation Mode section.

import

In order to perform import operations it is required to specify the necessary information to connect to the SQL server and Cinegy Archive database.

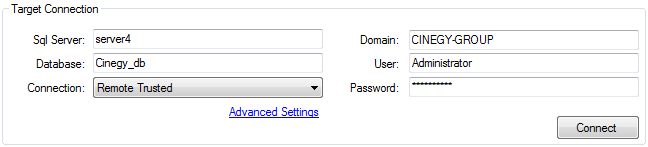

Target Connection

target_connection_settings

Type in the SQL server and database names in the corresponding fields. Choose the connection type from the drop-down list:

export_connection_type

If it is needed to change the plug-in settings, press "Advanced Settings"; the plug-in settings dialog will be launched.

Enter the domain name, user name and password.

Note
The "Domain" parameter is not topical for SQL connection type.

connect_button

Press the "Connect" button to start connection to the source.

The progress bar on top of the window shows the progress of connection process:

target_connection_progress

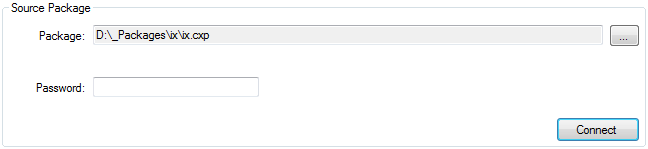

Source Package

source_package_settings

Define the location of the source package using the "…​" button, select the *.cxp file and enter the password if necessary.

connect_button

Press the "Connect" button to establish connection.

Important
The process of target and source package connection is similar to source and target package connection, described in the Export Operation Mode article.

Importing Data

transfer

Having connected to both target and source packages you are able to proceed with files import.

next_button

Press the "Next" button. On this step you can select the data for importing and define the import settings.

Source

The "Source" tab consists of three panels – "Source Package", "Target database" and "Errors":

choosing_files_for_import

The "Source Package" panel lists all objects previously exported from the Cinegy Archive database. To navigate through the tree, use the plus_buttonand minus_buttonbuttons. Check the nodes to be imported into the target Cinegy Archive database.

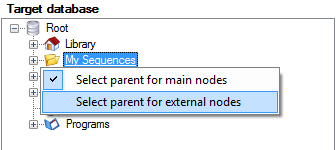

In the "Target database" section, right-click the locations you want to choose as parents for the main and external nodes:

parent_for_nodes

Use the "Select parent for main nodes" option to define the location for the selected node itself, and the "Select parent for external nodes" option to specify the location of the subsidiary nodes contained in it.

The names of selected locations become underlined.

In case of errors or warnings occurring during the import process, they are displayed in the "Errors" panel, which is given as a table consisting of "Error Type" and "Error Message" columns:

import_errors

Options

The "Options" tab allows to configure the import settings:

import_options

Copy Mode Options

  • Copy masterclips – select "True" to copy masterclips to the selected location.

  • Copy empty Bins – select "True" to copy empty Bins to the selected location.

  • Copy empty ClipBins – select "True" to copy empty ClipBins in selected location.

  • Copy empty DocumentBins – select "True" to copy empty DocumentBins in selected location.

  • Create masterclips – select "True" to create new masterclips.

Document Files

  • Document source folder – a read-only field, which displays the path to source folder, from which document files will be imported.

Main

  • Import mode – select copy import mode from the drop-down list:

    import_mode
    Note
    Sync mode is not supported in the current version.

Media Files

  • Media source folder – a read-only field, which displays the path to source folder, from which media files will be imported.

Sync Mode Option

  • Overwrite existing files – "True" is selected to replace the existing files in destination location.

  • Create new nodes – "True" is selected to create new nodes in the destination database.

Imported Data

finish_button

Press the "Finish" button, the import process will start.

The import progress along with details is shown in the progress bar on top of the window:

importing_progress

Wait until the import process is completed. All the data is now transferred into the defined target Cinegy Archive database.

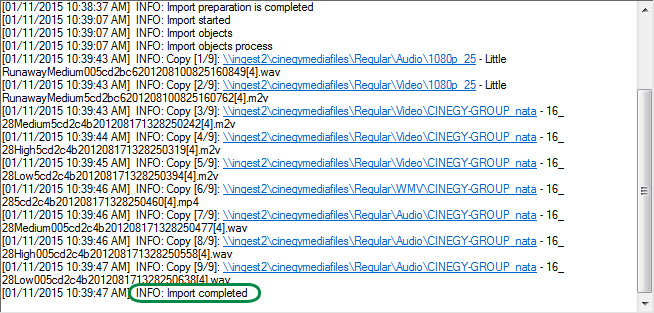

The information about the imported files and the status of the import process is also added to the log. Press the "View Log" button to view the log:

import_completed

exit_button

Having finished working with the utility press the "Exit" button to quit Cinegy Archive Transfer. You will be asked to confirm your decision with the following message:

confirm_exit
