Cinegy Archive does not require any special plug-in to work with digital archive storages. Cinegy File Service, which comes as a part of the Cinegy Archive installation package, provides integration with the 3rd party archive storage systems.

Cinegy Archive/Cinegy File Service requirements for any tape- or non-tape based archive storage systems are minimum:

  1. Archive storage systems should correctly define the "Offline" flag for files. The Win32 function should return FILE_ATTRIBUTE_OFFLINE for the "GetFileAttributes" request.

  2. File retrieve settings are the following: "Partial retrieval" mode should be disabled, "Full file restore" used.

    Important
    Refer to the File Recall paragraph within the Cinegy File Service Manual for more details on Cinegy File Service settings for file retrieval.

Here is a typical "move-to-archive" and "retrieve-from-archive" scenario for working with 3rd party archive storage systems:

  • Manual Media Cleaner, Scheduled Media Cleaner or MediaCleaning job type of Cinegy Convert Legacy can be used to copy/move media to network shares included to media groups with the selected "Archive" check box. Then, media files on these shares can be monitored and managed by archive storage systems after transferring.

    Important
    Refer to the Media Cleaner article within the Cinegy Desktop Manual for more details on Cinegy Media Cleaning tools.
    Important
    Refer to the Media Cleaning Job Drop Folders article within the Cinegy Convert Legacy for more details on Cinegy Media cleaning job drop folders.
  • The 3rd party archive systems should be set up to "watch" Cinegy Archive shares or volumes, with the set of rules to define which files to be transferred to offline archive storage. For example, "all files on share path <…> created/modified more than 6 months ago have to be transferred to the archive library".

  • Then, following these rules, the archive system will transfer files to the offline storage, leaving only small file headers with correct "Offline" flag on the Cinegy Archive shares or volumes.

  • For Cinegy software such essences will be represented using the valid "Media Offline" state.

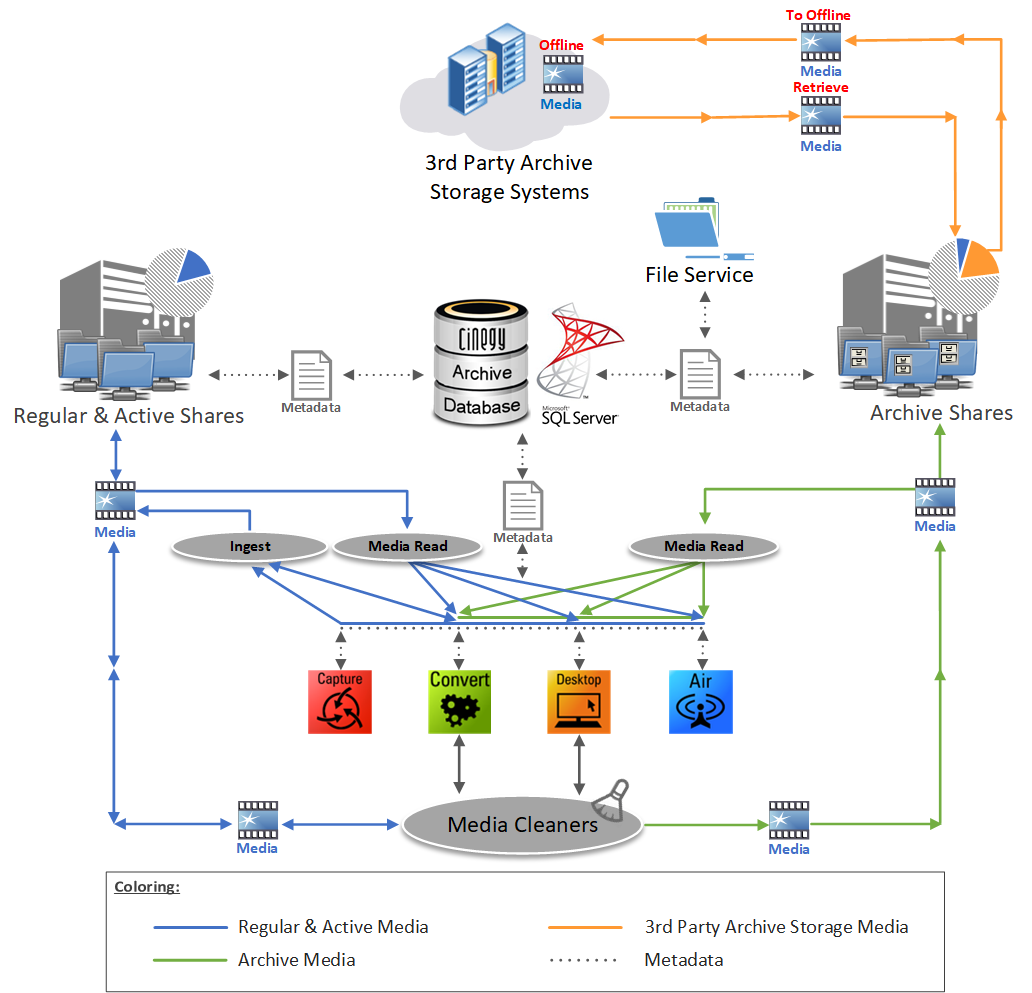

The following diagram graphically represents the process of media file transferring to Regular and Active shares, Archive shares and 3rd party archive storage systems:

3rd party archive storage

As shown on the diagram above, Media Cleaners are used by Cinegy Desktop and Cinegy Convert Legacy to copy/move unused files to archive storages. When the archive storage is full or/and media files meet the requirements for transfer to offline storage, the files are moved to 3rd party archive storage systems and gain the "Offline" state.

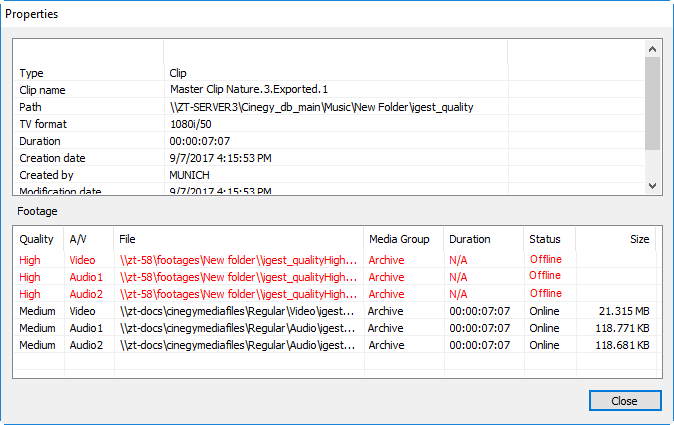

The "Offline" message is also displayed while viewing different media qualities. Use the "Clip properties" option from the context menu of the chosen clip to view where the footage is physically stored and its status.

The list of offline

Modern broadcasters often keep high-resolution video offline to prevent unauthorized access or unexpected damages. Medium/Low/Web quality footages remain online and could be used by journalists and editors (also using remote Web clients) to create programs, news, portfolios, sequences, etc. When Cinegy clips or sequences are ready for output, you can retrieve the required file resolution.

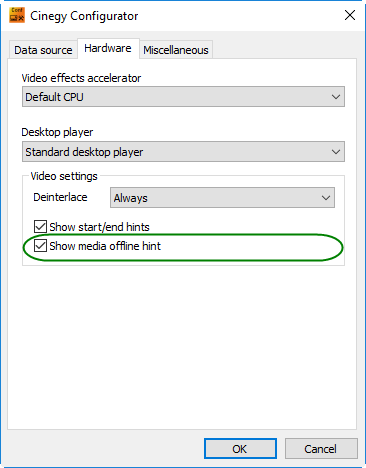

To show that Cinegy sequences and/or clips contain archived media files, it is required to enable the "Media offline" message for the Cinegy Archive items. To do this, select the "Show media offline hint" check box in Cinegy Configurator.

Show media offline
Important
Access to offline media files, different media qualities and "Clip properties" option can be limited by user rights and permissions. Refer to Connection Info section see the rights assigned to the current user.

However, if "Export…", "Send to…", "Convert…" operations are initiated by Cinegy software, the warning window with information that the footage with such quality is offline will appear, and options to cancel, autodegrade quality, or restore from archive storage will be available:

offline footage

Recover Offline Files

If you perform the "Retrieve" operation, Cinegy File Service will try to read the offline file, forcing the 3rd party archive storage system to restore media on its original location.

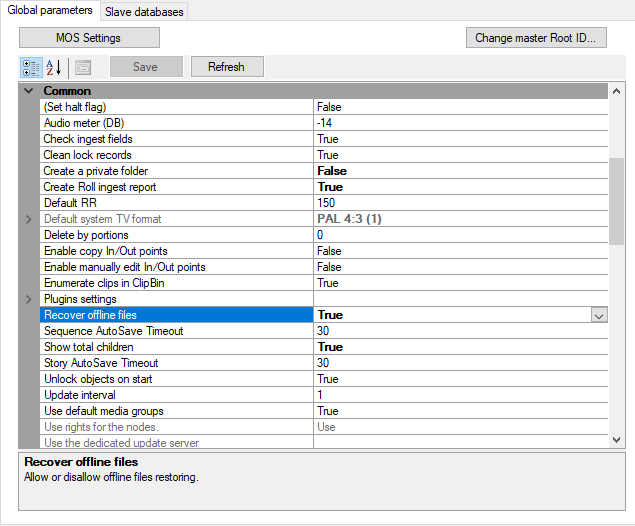

To enable this feature, configure the corresponding global parameters in Cinegy Enterprise Manager. To do this, use the "Global parameters and settings" link to open the "Cinegy system settings" dialog and set the "Recover offline files" option to "True":

Recover offline files

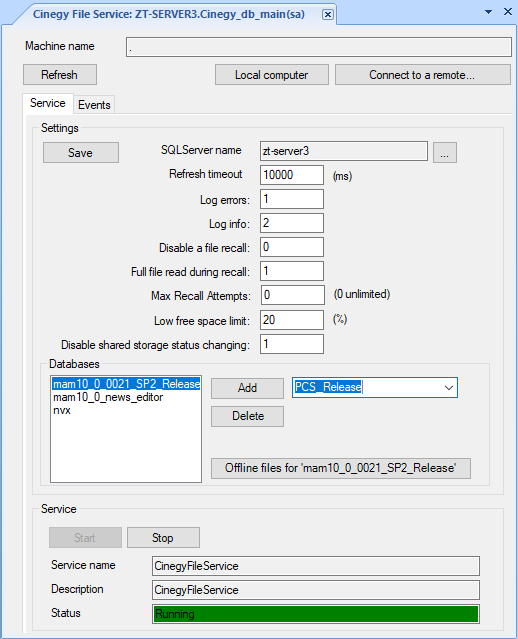

If there any offline files available for retrieving from the chosen database, the "Offline files" button will be highlighted on the "Service" tab of the "Cinegy file service" window:

Offline files

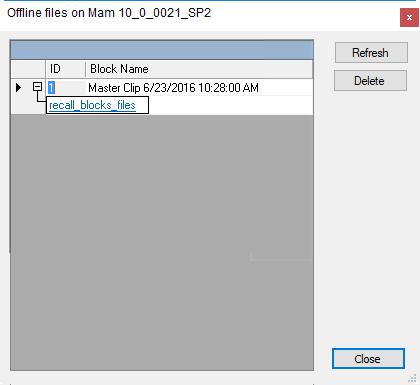

Click the "Offline files" button to open the list of offline files stored in the selected database:

Offline files button

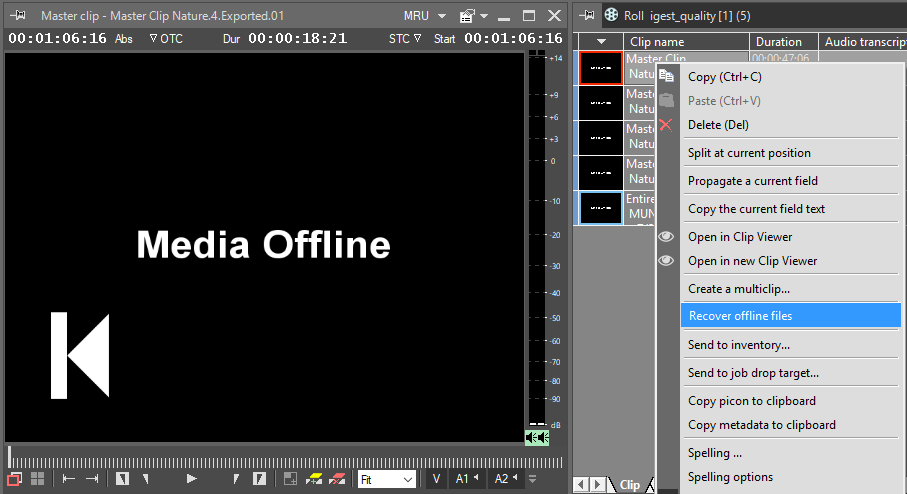

Once configured, the "Recover offline files" option will be available for media files marked as "Media Offline". Right-click on selected archived clip and choose the corresponding command from the context menu that appears:

Recover files using Archive

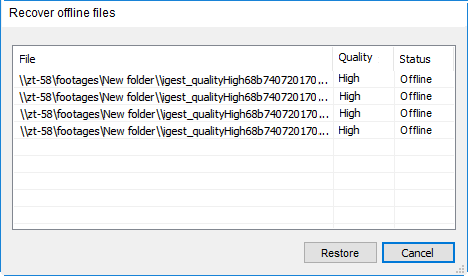

In the dialog that appears, click the "Restore" button:

Recover dialog

The information on the offline files restore process and possible errors will be displayed on the "Events" tab of the "Cinegy file service" window:

Offline files events

If media files are successfully restored, the "Export…", "Send to…", "Convert…" processes will continue, using the restored (previously offline) data and properties.
