Note
For proper Windows file sharing (SMB/CIFS) via TCP/IP protocol it is necessary to have port 445 open in the Firewall.

The pair "Network shares" and "File types" is referred to file locations.

Caution
The base path for different media file type shares nested inside each other cannot be used as file locations; this will lead to the incorrect results when performing the consistency checking operations and to the accidental deletion of media files.

Media groups and files are managed here. The left part of the dialog lists media groups, network shares and file types in a tree-like structure. Selecting the top-level folder displays the group overview in the right part of the dialog box:

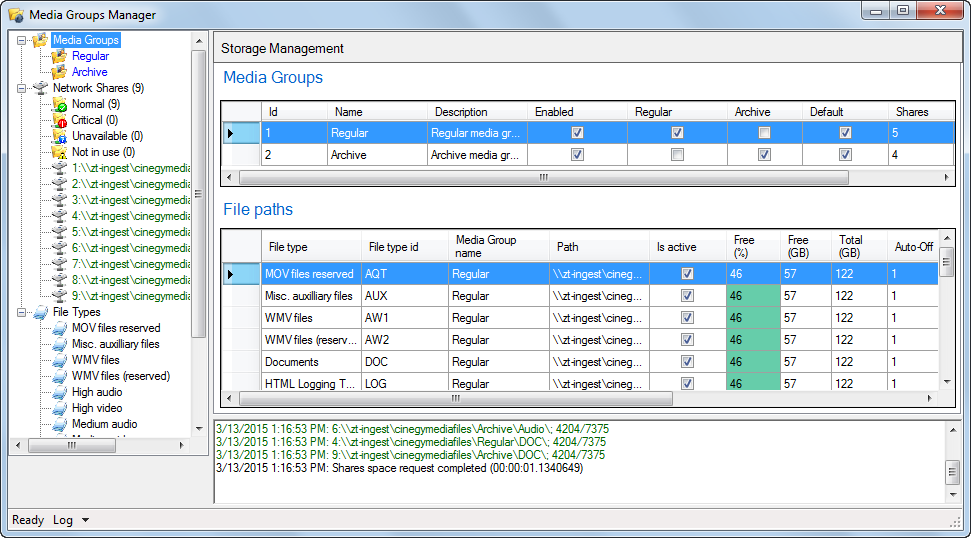

25_DBM_media_group_manager

At the bottom of the "Media Groups Manager" window there is a system log window that contains a record of the media group and network share events as well as storage management, including configuration messages and information on other activities:

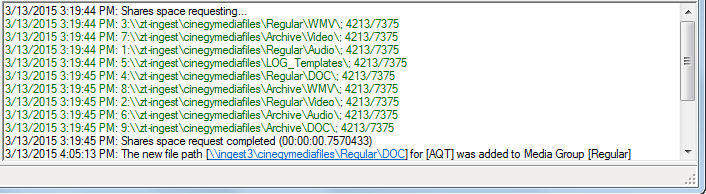

25_DBM_media_group_manager_Media groups_log

It can be useful if something goes wrong to report any error messages to your system administrator.

To save the log as a TXT file, use the "Save to file" option from the "Log" context menu that can be found in the bottom left part of the "Media Groups Manager" window:

25_DBM_media_group_log_menu

In the common "Save As" dialog enter a desired file name and choose the directory for your log file to be saved to.

You can also clear the system log and enable/disable its automatic scrolling using the corresponding commands in the same "Log" context menu.

Media Groups

Media groups are used to support simultaneous work of multiple production teams or use of different program types (e.g. news, drama and documentaries) within one Cinegy Archive database. Dividing into virtual groups covers the following requirements:

  • use of different access rights, which need to be set up on the Active Directory level;

  • use of different storage policy, especially when Linear Tape-Open (LTO) library is used for deep archiving;

  • use of different read/write speed requirements, due to different formats in use.

The "Media Groups" list in the left part of the manager displays all available media groups.

Select the required group to see its details:

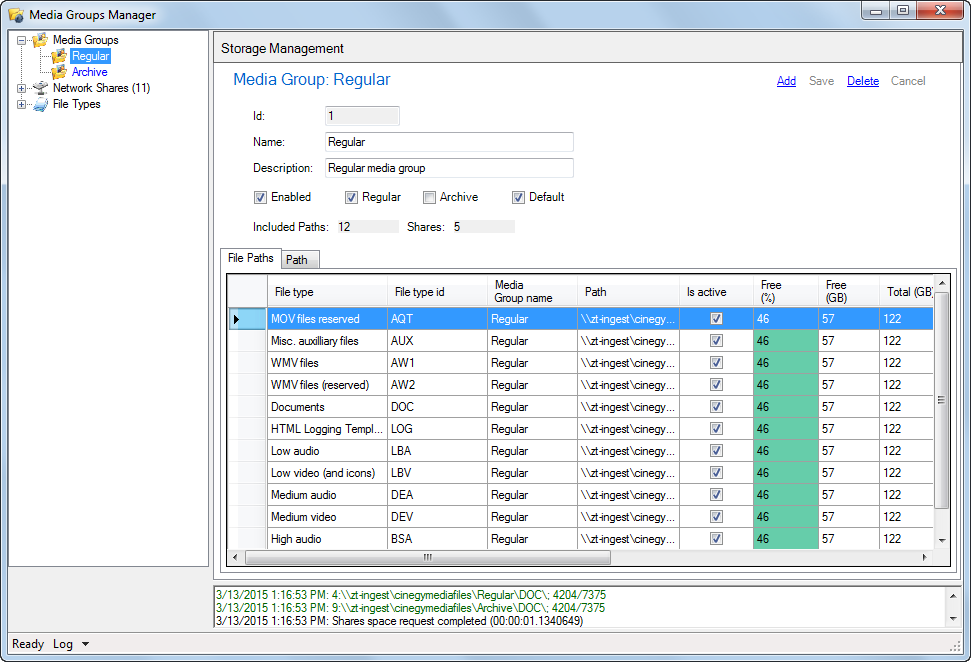

25_DBM_media_group_manager_Media_groups

Here the following media group parameters are displayed:

  • ID – automatically generated internal unique identifier of the media group;

  • Name – the name of the media group;

  • Description – the description of the media group.

  • The Enabled, Regular, Archive and Default attributes are used to filter your media groups according to your needs:

    • Enabled – select this checkbox to make the media group usable within Cinegy Desktop:

      Roll_info_Media_groups
    • Regular – when enabled, the group will logically inherit all media paths marked as "regular"; these paths will be used for storing the ingested files in corresponding file formats;

    • Archive – when enabled, the group will include all nodes marked as "archive"; all the archived files will be written to the location paths defined for this media group.

      Note
      The group should have the "Archive" attribute to be used for archive-related operations such as media cleaning.
    • Default – when enabled, this group will be used by default.

      Important
      The use of media groups marked as "default" is managed via the "Use Default Media Group" option. Refer to the Common paragraph to learn how to enable/disable use of the media groups marked as "default".
      Note
      For proper functioning, only one media group should be marked as "Default".
  • The Included Paths and Shares fields display the number of paths and shares used by the group correspondingly.

Creating a New Media Group

To create a new media group, select any existing group in the directory tree and press Add in the right part of the dialog box. A blank "Media Group" form appears:

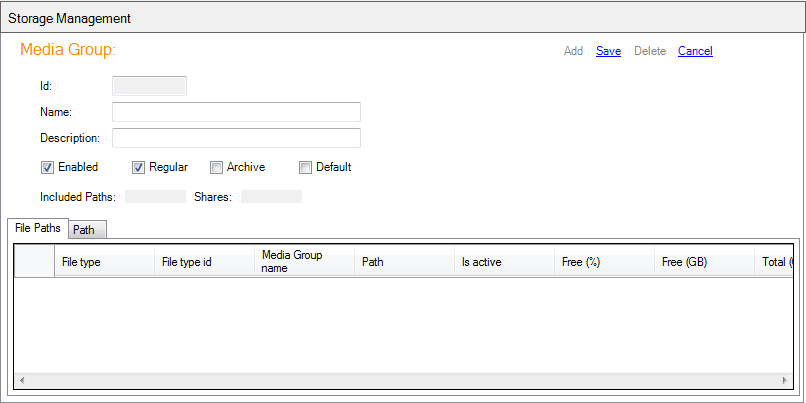

25_DBM_media_group_media_group_form

Fill in the media group fields and select the required checkboxes. Press Save to confirm creation of the new media group or Cancel to reject the changes.

Any parameters of the existing media group can be changed and then saved by pressing Save.

To remove a selected media group, press Delete.

File Paths

All paths for the Cinegy output files are listed here providing easy-to-use monitoring of their status:

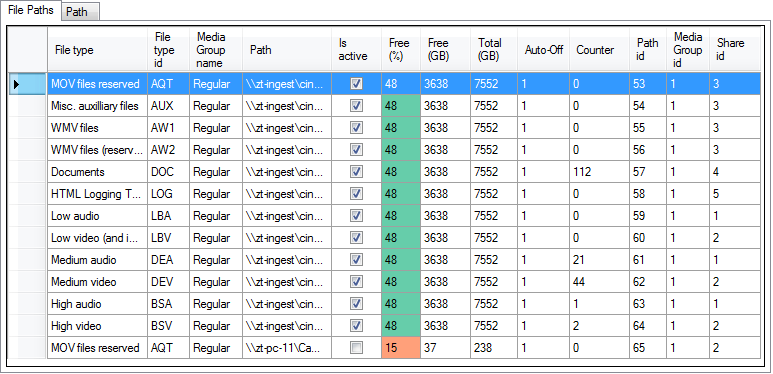

25_DBM_media_group_file_paths
Caution
Make sure you have at least one location for every file type. Missing locations will cause serious system malfunctioning.

The "File Paths" tab provides the following information:

  • File type – the file type used in Cinegy Archive by the corresponding media group.

  • File type id – the file type internal unique identifier (generated automatically).

  • Media group name – the name of the current media group.

  • Path – the path to the location where output files are written to and stored.

    Note
    If multiple locations for the single file type are defined, writing of the files will be performed to each storage in turn.
  • Is active – access indicator that informs if writing to a particular location is allowed or prohibited.

  • Free (%) – free space on location, in %.

  • Free (GB) – free space on location, in GB.

    Note
    The information about free space on location should be checked regularly in order to provide smooth operation of the system.
  • Total (GB) – total amount of space available on location, in GB.

  • Auto-off – when activated, the system automatically makes the location with less than 20% of free space not write-active to avoid disk fragmentation.

  • Counter – the path accesses count.

  • Path ID – the path internal unique identifier (generated automatically).

  • Media group ID – the media group unique identifier (generated automatically).

  • Share ID – the network share unique identifier (generated automatically).

Path

The "Path" tab allows you to add, change, and delete the paths to the network shares:

25_DBM_media_group_paths

Creating a New Path

Cinegy Archive stores its essences on a number of file servers, connected via network shares. For every file type, the list of shares can be defined separately.

Every network share can be used for one or several file types. It is possible to use just one share for all types, as well as multiple shares for one type.

Caution
If there is only one location for a particular file type, the system will continue writing to it. It is recommended to have at least two locations for a file type for a big Cinegy software installation.
Caution
Never use the same file locations for different databases. This may cause deletion of files in another Cinegy Archive database!

In order to create a new network share, follow these steps:

  1. Press Add in the right part of the "Path" tab in this dialog; the following form appears:

    25_DBM_media_group_path_form

    select_button

    Press the "Select" button and navigate to a new file share within a configuration dialog that appears:

    25_DBM_media_group_path_select_share

    Press "OK" to confirm your selection and close the window.

    Note
    Please avoid using the same share for different media groups.
  2. Use the drop-down list to choose the media file type to be operated and then written to the defined network share:

    25_DBM_media_group_path_file_type
    Note
    If you define multiple locations for the single file type, the writing of the files will be performed in turn to each storage (all files ingested during one ingest session will be written to one of the storages, and files ingested in the next session will be written to the second storage and so on).
  3. Use the "Disable" option to define if the system will automatically make the file location with less than 20% of free space not write-active (to avoid disk fragmentation) or if it needs system administrator to be manually switched.

    Important
    Read the Low Free Space Limit paragraph to learn how to change the limit value via Cinegy File Service.
  4. Select the "Active" checkbox to make your file location write-active or remove the tick to prohibit writing to this location.

    Caution
    If there is only one location for a particular file type, the system will continue writing to it. It is recommended to have at least two locations for a file type for a big Cinegy software installation.
  5. Press Save to confirm creation of a new network share or Cancel to reject the changes. The newly created network share automatically gets its own "Id" that is used by the system.

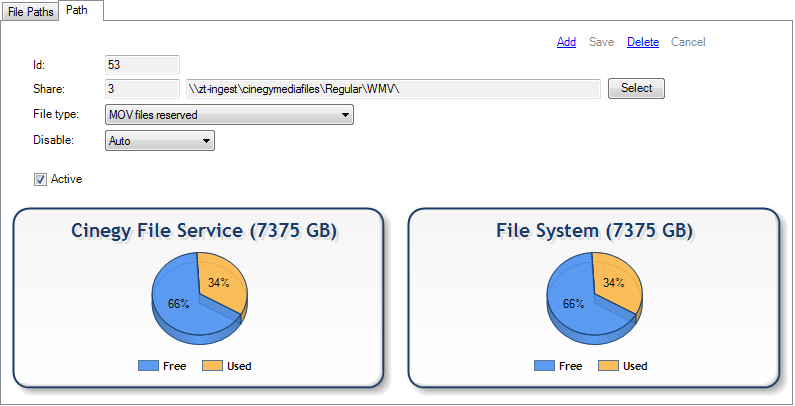

The charts below are the graphical representation of the storage consumption of Cinegy File Service and File System, where the blue parts show you the free storage space, the yellow parts – the used storage space:

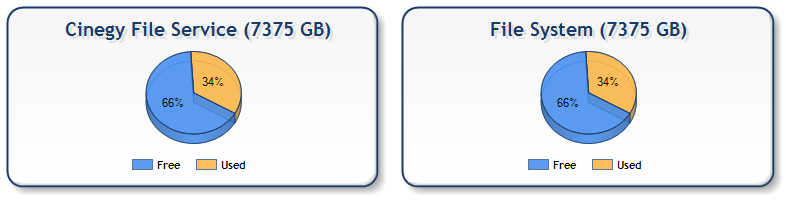

25_DBM_media_group_paths_space

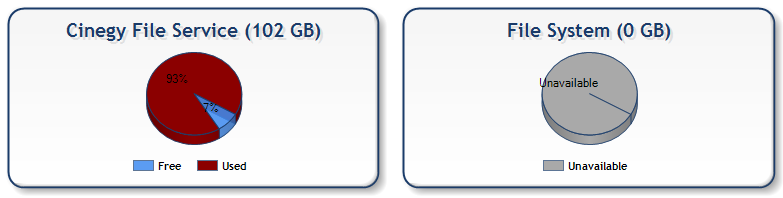

When the free space of the storage is less than 20% of total space, the used space section is shown in red; the unavailable storage is shown in gray:

25_DBM_media_group_paths_unavailable

The main parameters of the existing network share can be changed and then saved by pressing Save.

To remove a selected network share, press Delete.

Network Shares

The "Network Shares" section contains a list of shared resources available in the current database:

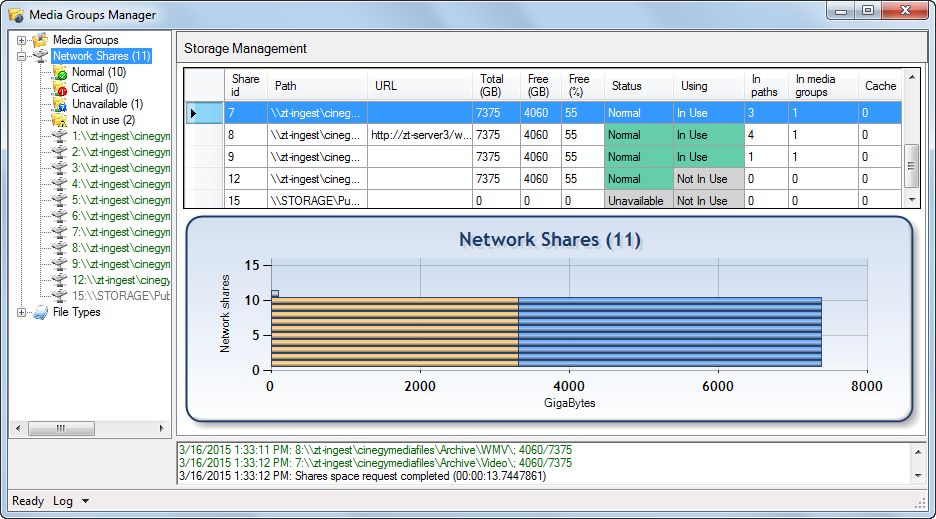

25_DBM_media_group_manager_network shares

All network shares are correspondingly colored to indicate their status and storage consumption.

In the left part of the "Media Groups Manager" window all network shares are displayed; they are allocated in categories and then listed below.

There are 4 network share categories:

  • Normal – lists network shares that can be used for recording without any limitations.

  • Critical – lists network shares the failure of which may cause the recording session to abort.

  • Unavailable – lists network shares that are not available.

  • Not in use – lists network shares that are not currently in use. They are filtered out of the general number of network shares for administrative purposes.

The number in brackets next to each network share category name indicates the total amount of network shares of each type.

Click the category folder to display its network shares information in table view on the right part of the "Media Groups Manager" window, where:

  • Share ID – the internal unique identifier of the network share. It is generated automatically and cannot be changed.

  • Path – the path to the location where output files are written to and stored.

  • URL – the virtual directory name for the WEB quality files.

  • Total (GB) – shows the total amount of space available on location, in GB.

  • Free (GB) – shows the free space on location, in GB.

  • Free (%) – shows the free space on location, in %.

    Note
    The information about free space on location should be checked regularly in order to provide smooth operation of the system.
  • Status – the network share status (normal, critical, unavailable, not in use).

  • Using – indicates if the network share is used in paths and/or media groups.

  • In paths – the number of paths, where the network share is used.

  • In media groups – the number of media groups, in which the network share is used.

  • Cache – the number of cached items in the network share.

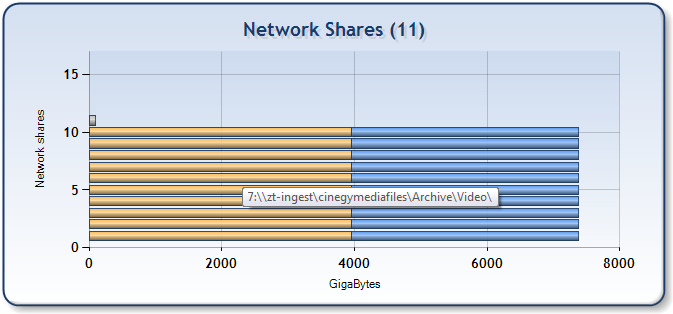

The diagram at the bottom of the "Media Groups Manager" dialog contains the graphical representation of the storage consumption by each network share: the blue part shows you the free storage space, the orange part – the used storage space. Hover over the desired entry on the diagram to see its network share path:

network_shares_diagram

To view certain network share details, select the desired one in the "Network Shares" list or click the corresponding entry on the diagram; the "Network Share" form appears:

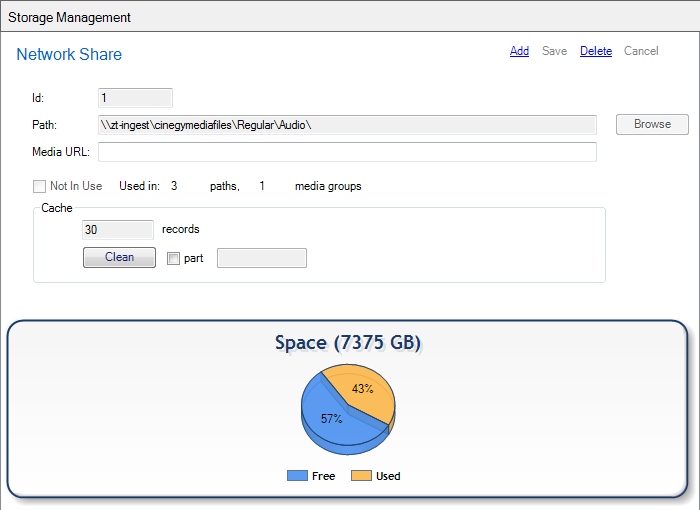

25_DBM_media_group_manager_network shares_view

The network share information, including the graphical representation of its storage consumption, is displayed here.

Note
The detailed explanation of all network share parameters is listed earlier in the current sub-section.

clean_button

Press the "Clean" button to delete cached records for the current network share. To delete a part of cached records, tick off the "part" checkbox and enter the desired records number via the keyboard.

Creating a New Network Share

To create a new network share, press Add in the top right corner of the "Network Share" form with the existing share details; a blank form will appear:

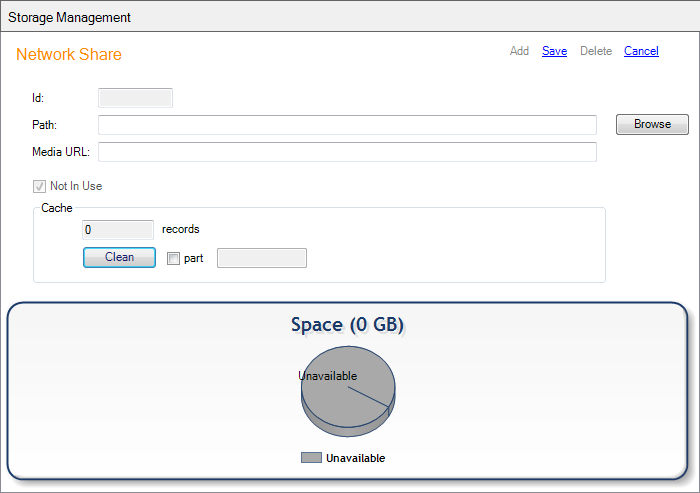

25_DBM_media_group_manager_network shares_form

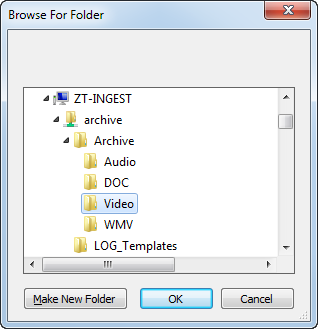

Navigate to a new file share with the "Browse" button.

28_DBM_filelocation_shares_add
Note
Using local network share(s) is not recommended.

Fill in the "Media URL" field with the URL for the WEB quality files:

http://<IIS server name>/<Virtual directory name>/

Press Save to confirm creation of the new network share or Cancel to reject the changes.

Any parameters of the existing network share can be changed and then saved by pressing Save.

Relocating an Existing Network Share

To edit an existing network share, select the desired one and navigate to a new file share using the "Browse" button or enter the desired path manually in the corresponding field.

Fill in the "Media URL" field or edit the current one via the keyboard, if needed.

Important
Refer to the Common paragraph to learn how to enable entering the network shares manually.

Physical Replacement of a File Server

The most typical use of this method is to replace a file server experiencing technical problems or to perform maintenance. The following procedure is recommended:

  1. Prepare a new file server that needs to be at least the same size as the old one.

  2. Deactivate the location you want to replace.

    Important
    See the Creating a New Path paragraph for details.
  3. Copy all the Cinegy Archive-relevant footages to the new server.

  4. Replace the network share.

  5. Activate the location again selecting the "Active" checkbox on the "Path" tab of the "Media Group" form.

Note
Please note that the procedure described above works only if you have more than one location for the file types on that server.

Removing a Network Share

To remove a network share, select the desired one and press Delete in the top right corner of the "Network Share" form. If the network share you are trying to delete is already used at least in one path, its deletion cannot be performed; you will be warned about it with the corresponding message:

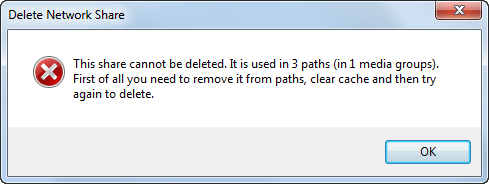

network share_delete_error

File Types

The "File Types" section contains a list of file types used in Cinegy Archive:

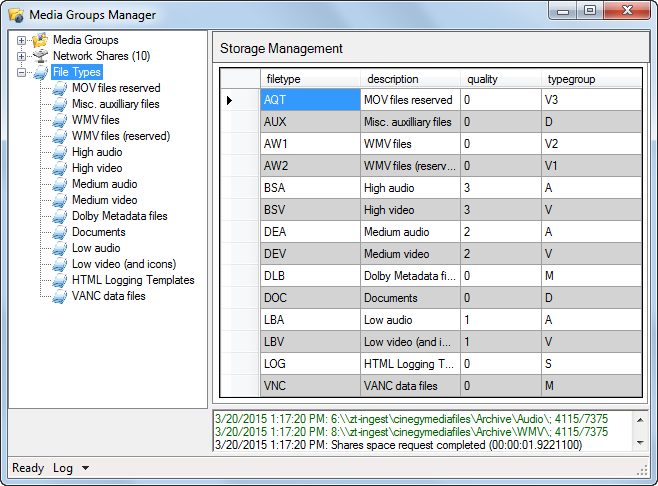

29_DBM_filelocation_filetypes
Type Description See Also

BS*

High quality Audio/Video

The Multiple Qualities article in the Cinegy Ingest Manual

DE*

Medium quality Audio/Video

The Multiple Qualities article in the Cinegy Ingest Manual

LB*

Low quality Audio/Video

The Multiple Qualities article in the Cinegy Ingest Manual

AW*

Web Quality files

The Multiple Qualities article in the Cinegy Ingest Manual

DOC

Documents

The Managing Documents section in the Cinegy Desktop Manual

LOG

Logging Templates

The Logging Template article

Note
Some of the other types that may appear in your setup are for future extensions.
Caution
This table is for internal Cinegy Archive use only. Do not change anything here.
