The nodes management forming the entire content of Cinegy Archive is applied here.

Node Types

22_DBM_nodetypes

Structure

This section describes an expample of the nodes structure in Cinegy Archive.

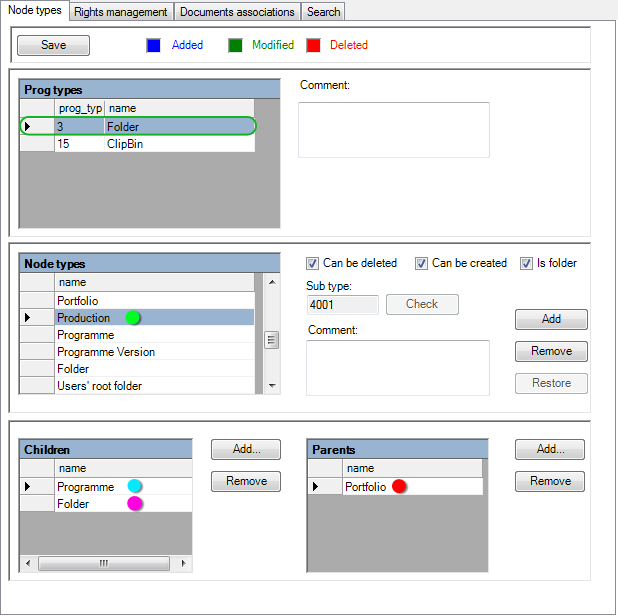

This is the "Manage node types" dialog box, where you can create and manage the nodes in Cinegy Archive:

22_DBM_nodetypes_structure_dbm

Select the "Folder" program type. Also select the node type. Now you will find "Children" and "Parents" of the "Production" folder at the bottom of the dialog. Here you see the structure of the "Production" node.

Compare it with the structure in the explorer window of your Cinegy Desktop client:

22_DBM_nodetypes_structure_cmd

Status of Entries

At the top of the dialog there is the "Save" button, used to store changes to the database, and markers in different colors, which show the status of changed entries.

22_DBM_nodetypes_added

The text/name of a newly added node type will be displayed in blue.

22_DBM_nodetypes_modified

The modified entry text will be displayed in green.

22_DBM_nodetypes_deleted

The deleted entry text will be displayed in red.

22_DBM_nodetypes_save

If all changes are done, press the "Save" button. This will also switch the colored text back to black.

Adding a New Node Type

22_DBM_nodetypes_add

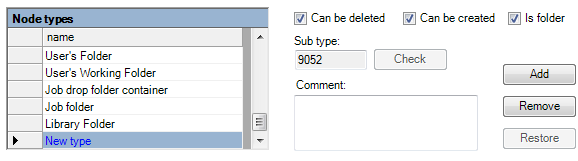

  1. Press the "Add" button. A new node type will appear named "New type".

  2. Rename the new node type and enter its short description into the "Comment" field.

  3. Select or deselect the appropriate attributes:

    • Can be deleted – allows the node type to be deleted by Cinegy Desktop user.

    • Can be created – allows the node type to be created by Cinegy Desktop user.

    • Is folder – assigns the node type as folder.

  4. The next step is the assignment of any "Children" and "Parents".

    22_DBM_nodetypes_create_childrenparents

    22_DBM_nodetypes_create_childrenparents_exa

    Example: Children and Parents

  5. Press the "Save" button to save all changes.

  6. Open Cinegy Desktop and right-click the portfolio icon. Open "New" and you will see the new node type.

    22_DBM_nodetypes_structure_newtype
Important
As you can see, the new node type has been assigned the default icon (a red square). Read the Icons, Log Templates, Colors, Error Messages article to learn how to give nodes suitable icons.

Rights Management

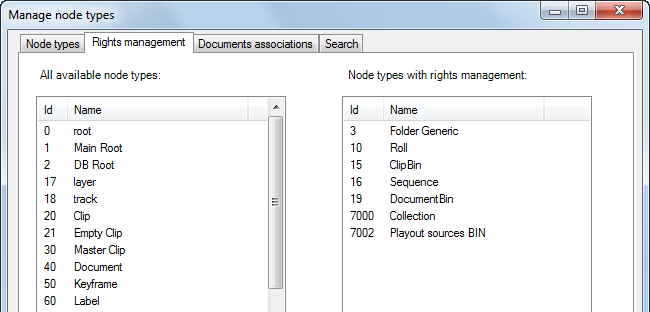

On the "Rights management" tab, you can see all the available nodes on the left side; all node types with rights management are on the right side.

23_DBM_nodetypes_rights
Important
For more information, read the Rights Management article in the Cinegy Desktop Manual.

Documents Associations

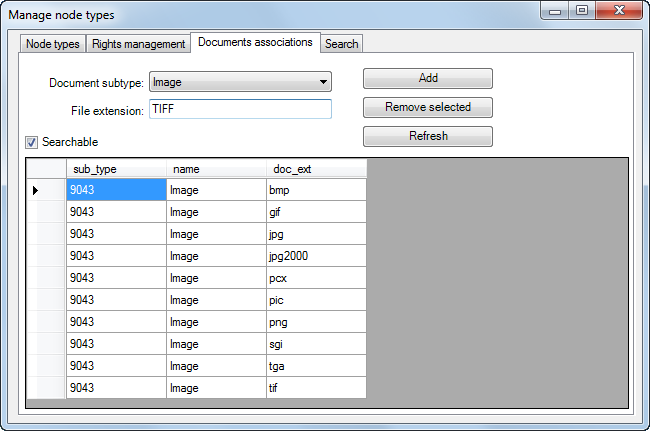

You can assign the file format extension for different document subtypes using this dialog:

22_DBM_nodetypes_documents associations

22_add_button

To create the association, choose the node type from the "Document subtype" drop-down list, specify the file extension and press the "Add" button. The new association will be added to the list of associations.

All document files with specified extensions will be associated with the corresponding document subtype and will have the appropriate set of metadata.

22_remove selected_button

To delete the desired association, select it from the list and press "Remove selected".

22_refresh_button

Press the "Refresh" button to force the list of associations to refresh. If any of the available associations have been changed, the list will be updated immediately.

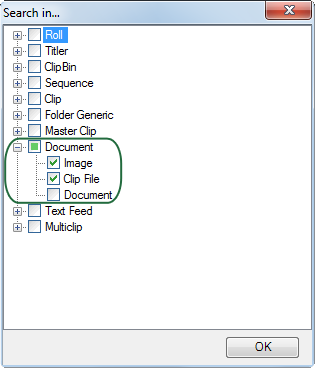

Select the "Searchable" checkbox to enable users with the ability to search documents in Cinegy Desktop by their types. When this option is activated, the document type for search will be displayed in Cinegy Desktop:

search_document_type

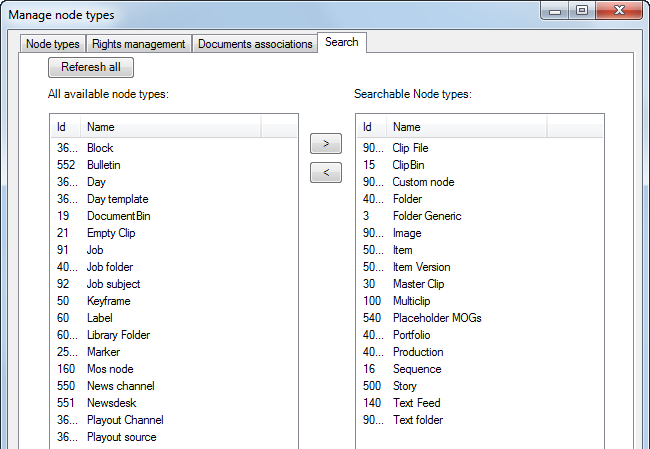

For the specified node type to be included in search, it should be added to the list of searchable node types on the "Search" tab:

22_DBM_nodetypes_search

To make the specified node searchable, select it in the list of available nodes on the left and press the add_buttonbutton. It will be moved to the "Searchable node types" list on the right. To remove the node type from the "Searchable node types" list, select it and press the remove_buttonbutton.

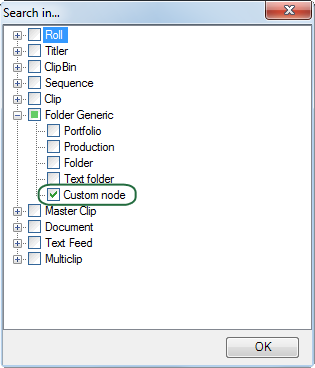

The specified node type will be available to choose during the advanced search configuration:

Search_custom_node
