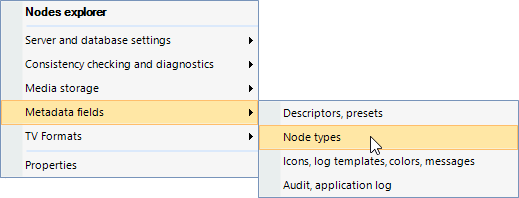

The nodes management and forming of the entire content of Cinegy Archive is performed here. The corresponding panel can be launched via the "Node Types" command from the "Metadata fields" submenu of the database context menu:

node_types_submenu

Node Types

22_DBM_nodetypes

Structure

This section describes an example of the nodes structure in Cinegy Archive.

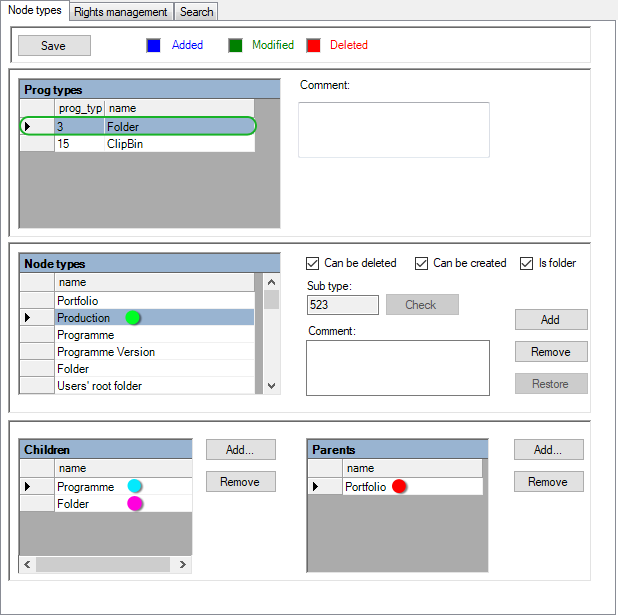

On the "Node types" tab, the Cinegy Archive nodes can be created and managed:

22_DBM_nodetypes_structure_dbm

Select the "Folder" program type. Also choose the required node type. Having selected the "Production" folder, you can find its "Children" and "Parents" at the bottom of the dialog and see the entire structure of the "Production" node. Compare it with the node structure in the explorer window of your Cinegy Desktop client:

22_DBM_nodetypes_structure_cmd

Status of Entries

At the top of the dialog there is the "Save" button for appling changes to the database, and markers in different colors, which show the status of changed entries.

22_DBM_nodetypes_added

The text/name of a newly added node type will be displayed in blue.

22_DBM_nodetypes_modified

The modified entry text will be displayed in green.

22_DBM_nodetypes_deleted

The deleted entry text will be displayed in red.

22_DBM_nodetypes_save

Once the changes are done, press the "Save" button. This will also switch the colored text back to black.

Adding a New Node Type

22_DBM_nodetypes_add

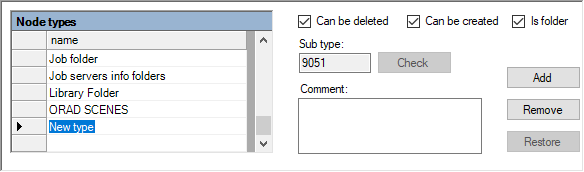

  1. Press the "Add" button. A new node type named "New type" will appear.

  2. Rename the new node type and enter its short description into the "Comment" field.

  3. Select or deselect the appropriate attributes:

    • Can be deleted – allows the node type to be deleted by Cinegy Desktop user.

    • Can be created – allows the node type to be created by Cinegy Desktop user.

    • Is folder – assigns the node type as folder.

  4. The next step is the assignment of any "Children" and "Parents".

    22_DBM_nodetypes_create_childrenparents

    22_DBM_nodetypes_create_childrenparents_exa

    Example: Children and Parents

  5. Press the "Save" button to save all changes.

  6. Open Cinegy Desktop and right-click the portfolio icon. Open "New" and you will see the new node type.

    22_DBM_nodetypes_structure_newtype
Important
The default icon (a red square) is automatically assigned to new node type. Refer to the Icons, Log Templates, Colors, Error Messages article to learn how to give nodes suitable icons.

Rights Management

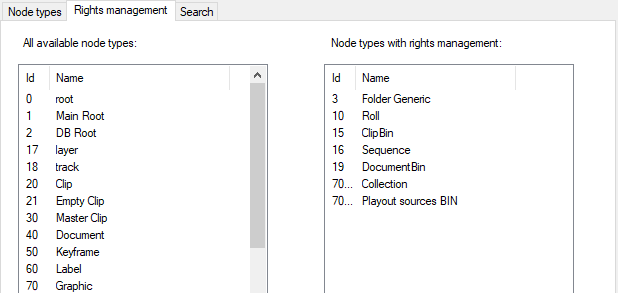

On the "Rights management" tab, all the available nodes are displayed on the left side; all node types with rights management on the right side.

23_DBM_nodetypes_rights
Important
For more information, refer to the Rights Management article within the Cinegy Desktop Manual.

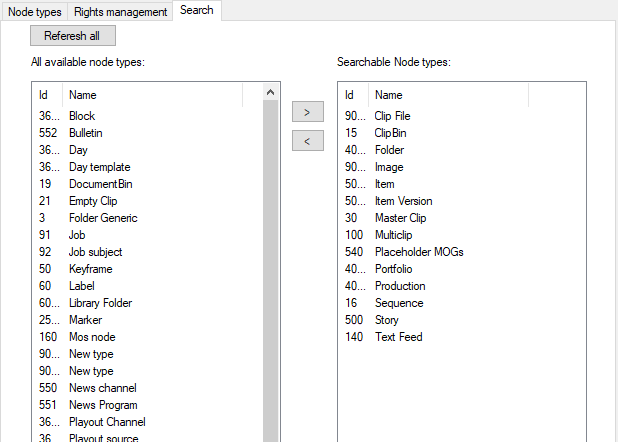

To include a specific node type in search, first add it to the list of searchable node types on the "Search" tab:

22_DBM_nodetypes_search

To do it, select the required node from the list of available nodes on the left and press the add_button button. It will be moved to the "Searchable node types" list on the right. To remove the node type from the "Searchable node types" list, select it and press the remove_button button.

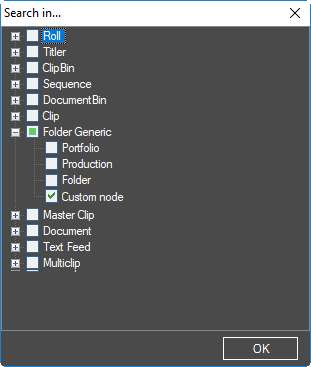

The specified node type will become available for choosing during the advanced search configuration:

Search_custom_node
