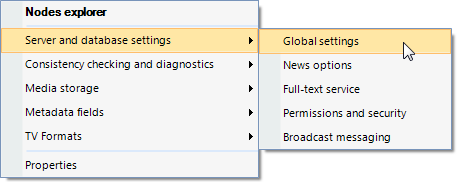

Select the "Global settings" command from the "Server and database settings" submenu of the required database context menu in Object Browser:

global_settings_command

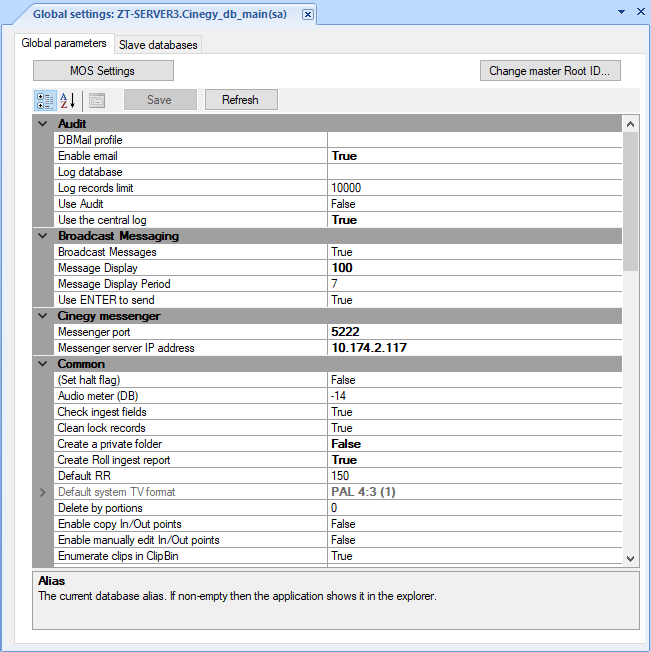

The "Cinegy system settings" panel appears:

global_settings

Global Parameters

The "Global parameters" tab provides an access to a number of global system settings.

Audit

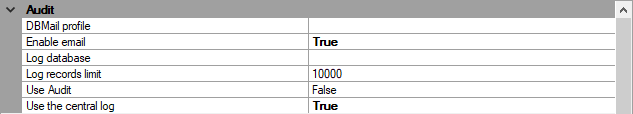

global_settings_audit
  • DBMail profile – defines the database mail profile, containing settings used for event notifications sent from the SQL Server.

  • Enable email – enables/disables sending of the event notifications via email.

  • Log database – defines the name of the Cinegy Archive database to which audit and application logs will be written. This log database can be created via Cinegy Archive Database Wizard.

    Important
    Refer to the Creating New Database article within Cinegy Archive Database Wizard Manual to learn how to create Cinegy Archive databases.

    It is possible to write application logs to a separate database to reduce the size of the main database and prevent it from growing at the expense of the log records. Therefore, the performance of the main Cinegy Archive database will not be affected by the central log operations.

    If this field is empty, all audit and application logs will be written to the current database.

    Note
    Note that the log database must be on the same SQL Server as the main database.
    Note
    Please note that all audit parameters are configured in the main database, while all audit and application logs are written to the log database.

    To view the logs, open your log database in Cinegy Archive Manager and go to Audit and applications log.

  • Log records limit – defines the maximum number of logs that can be created in the log database. When the defined number is reached, approximately third of the oldest logs is automatically deleted. Regular number of logs is maintained within the current maximum number range.

  • Use Audit – enables/disables the audit functionality.

  • Use the central log – enables/disables the use of the applications log.

Broadcast Messaging

global_settings_broadcast_messaging
  • Broadcast Messages – enables/disables the broadcast message subsystem.

  • Message Display – defines the number of broadcast messages allowed to be displayed at the same time.

  • Message Display Period – defines the time period value in days before the current date, during which the broadcast messages were created. For instance, if you set the "Message Display Period" parameter to "10", all messages created 10 days before the current date will be displayed.

  • Use ENTER to send – enables/disables the broadcast message sending by hitting the Enter key.

Cinegy Messenger

global_settings_cinegy_messenger

If you are using the Cinegy Messenger tool, define the messenger server name and server IP address (5222 is default).

Note
To disable Cinegy Messenger for all the clients, leave the fields empty.
Important
Cinegy Messenger is described in the Cinegy Messenger article of the Cinegy Desktop Manual.

Common Settings

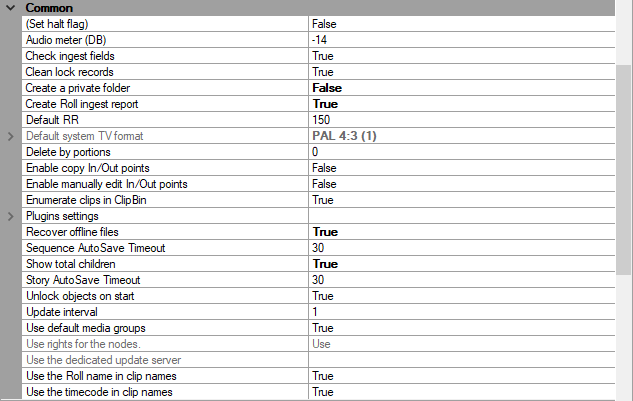

global_settings_common
  • Set halt flag – if set to "True", all active database connections will be disrupted and no applications will be able to connect to the database via SQLMAMAccessor, CASAccessor or directly via Cinegy Archive Service.

  • Audio meter (DB) – defines the 0 dB audio level for the VU meter for all clients.

    Audiometer

    Enter the value between the 0 dB and the digital maximum (0dBFS; FS = full scale) or press the audio_meter_arrow_down_button button and use the scroll bar to select the audio value. Press the "Apply" button to save changes.

    Audio_meter_scroll

    Important
    Refer to the Working with Audio section in the Cinegy Desktop Manual for more details on the VU meter.
  • Check ingest fields – if set to "True", it is required to fill in all mandatory ingest fields before the user can proceed with the ingest session (out of date).

  • Clean lock records – enables the Cinegy Archive database to delete the lock records after you have unlocked the item. When this option is not set, the lock record remains in the Cinegy Archive database and this may cause growing of the table sizes for large databases.

    Note
    This feature can be useful when using large databases.
  • Create a private folder – if set to "True", a private folder in the database will be created for the user, logged for the first time. This option is recommended for a more organized Cinegy Archive database.

  • Create Roll ingest report – enables generation of a specific report in PDF format for any imported Roll in Cinegy Desktop.

    Important
    Refer to the Ingest Reporting section in the Cinegy Desktop Manual for details on the ingest report feature.
  • Default RR – defines the default reading speed value used to calculate duration of the SOT blocks, PRESENTER blocks with no Presenter specified and VO blocks with no Author specified. The range of values is from 1 to 999.

    Important
    Refer to the News Settings article in the Cinegy Archive Manual for more details.
  • Default system TV format – defines the preferred TV format (e.g. NTSC 16:9) selected from the drop-down list. The selected TV format will be used by the system as the default TV format for all applications working with Cinegy Archive database.

  • Delete by portions – defines the number of portions, according to which the user can delete a large amount of nodes.

    Note
    Set "Delete by portions" to "0" to delete all nodes in a single operation.
  • Enable copy In/Out points – if set to "True", the In and Out points can be copied.

  • Enable manually edit In/Out points – if set to "True", enables user to edit In and Out points manually directly from the clip metadata form.

    Important
    Refer to the Changing In and Out Points section for more details.
  • Enumerate clips in ClipBin – if set to "True", enables clip numbering globally in the entire Cinegy Archive database and displays clip numbers in user bins in Cinegy Desktop:

    global_enumerate
  • Plugins settings – defines target fields for captured closed captions/subtitles or for speech-to-text recognition (out of date).

    Use "Add" or "Remove" buttons to add or remove closed caption members. You can choose the descriptor for the selected closed caption members from the drop-down list and edit its "Name" in the plug-in properties menu:

    pluginItemCollection
  • Recover offline files – if set to "True", enables offline files restoration on the Cinegy media storage.

  • Sequence AutoSave Timeout – defines the timeout in seconds after which the Sequence is saved automatically. Values below 30 sec will be replaced with the minimal value of 30 sec timeout. The negative value means no autosaving.

  • Show Total Children – set this option to "True" to get the information about the total number of child objects located on the node. When the node is hovered over for the first time in the session, its number of children is calculated in the background. Next time the node is hovered over the tool-tip, it will display the total number of children.

    Two variations of the tooltip are shown below: with the "Show total children" function enabled and disabled accordingly.

    children_total_true

    children_total_false

    "Show total children" option set to TRUE

    "Show total children" option set to FALSE

  • Story AutoSave Timeout – defines the timeout in seconds after which the Story is saved automatically. Values below 30 sec will be replaced with the minimal value of 30 sec timeout. The negative value means no autosaving.

  • Unlock objects on Start – locked objects are available for editing only to the user who locked them. Thus, all other users will have "read only" access to the locked objects.

    This option allows to unlock all locked objects on Cinegy Desktop launch. If for some reason there are locked objects left when a user session is finished, they will be unlocked when the owner logs in again.

    Important
    Refer to the Actions paragraph within the Nodes Explorer article to get details on nodes unlocking.
  • Update interval – defines time interval (in seconds) for SQLMAMAccessor update queries.

  • Use default media groups – this attribute is reserved for future use. Currently does not affect the system functionality.

  • Use Rights for the nodes – Cinegy Archive Manager has a rights management read-only parameter for the node access control. It displays the mode in which the Cinegy Archive database is working:

    • Use

      Node access is performed according to the permissions settings in the database.

    • Write, but not use

      Storing of the actual node permissions is retained, but not used when reading nodes. Newly created child nodes inherit permissions of parent nodes as usual.

    • Not use

      Recording of the existing node permissions is retained, but not used when reading. Newly created children do not inherit the permissions of the parent nodes.

  • Use the Roll name in clip names – if set to "True", Cinegy Desktop names the media files on the Cinegy Archive content server using the actual Roll name at the beginning of the file name.

    Important
    This option is obsolete.
    roll_name

    Before you capture anything, the "Roll info" dialog comes up. At the top, the "Roll Name" field is presented as a normal word or macro. In the example below, the following macros are used – %O (ingest operator), %D (date) and %T (time). The file name will be written on the Cinegy Archive content server as:

    roll_name_used

    Used Roll name in clip names

    roll_name_not_used

    Not used Roll name in clip names

  • Use the timecode in Clip names – if set to "True", the system is forced to add the start timecode to every master clip name on capture.

    global_autotimecode_off

    Autotimecode off

    global_autotimecode_on

    Autotimecode on

    Important
    Refer to the Working with Timecodes article within the Cinegy Desktop Manual to learn more about timecodes.

Database

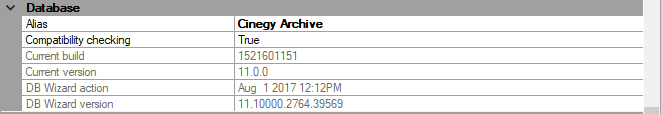

global_settings_database
  • Alias – defines a user-defined name of the current database to be displayed in the Cinegy Desktop explorer tree. Leave this field empty to keep the default Cinegy Archive database name.

  • Compatibility checking – if set to "True", the compatibility control of currently installed Cinegy applications on your machine is enabled, with the Cinegy Archive database(s) to which you are connecting.

    Note
    The compatibility checking is performed on the Cinegy Desktop startup. In case the database is incompatible with the release version, the error message appears.
    Caution
    It is not recommended to disable this option. This may lead to unexpected behavior.

    The compatibility checking is performed on the Cinegy Desktop startup. In case the database is not compatible with the release version, the corresponding error message will appear:

    DatabaseMissmatchXP
  • Current Build – here the current Cinegy Archive database build is displayed in the following format: xxxyymmddv,

    where:

    • xxx – the Cinegy Archive database version;

    • yymmdd – the database creation date in the YearMonthDay format;

    • v – the Cinegy Archive Database Wizard version used for the database creation/upgrade.

  • Current Version – current database version.

    Note
    The current version number is set automatically depending on the specified database.
  • DB Wizard action – the date and time of the latest database action performed via Cinegy Database Wizard.

  • DB Wizard version – the version and build number of Cinegy Database Wizard used for database manipulations.

Default Folders, Bins

global_settings_default_folders
  • Default Cinegy eXtreme folder – Cinegy eXtreme is a postproduction application that can be integrated with Cinegy products. Here you can define the location for the Cinegy eXtreme export Rolls. To do this, press the "Browse" button to select a different folder instead of "Default master clip folder".

    select_default_folder

    Select the new folder to be used for the Cinegy eXtreme Rolls in the "Nodes" window and "Select" it.

  • Default voice-over folder – defines the path to the voice-over bin the same way as to the Cinegy eXtreme folder.

ENPS, MOS

global_settings_enps_mos

For proper connection to a supported newsroom system (e.g. Associated Press ENPS or Octopus), define correct settings for the MOS server and ENPS gateway:

  • Default MOS version – version number of the supported MOS protocol.

  • Disconnect on deactivation – if set to "True", enables disconnection of the ActiveX component when closing its window.

  • ENPS identifier – the name of the MOS identifier for the ENPS server.

  • Media group ID – the media group identifier for the MOS ActiveX component.

  • MOS identifier – the name of the MOS identifier, used in the CynMOS.ini.

Expiration

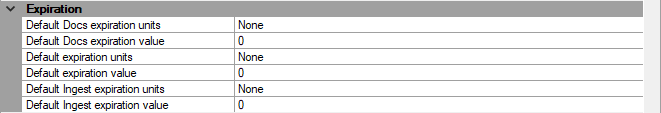

global_settings_expiration
  • Default Docs expiration units – the time units to define the default documents expiration date: days, months or years. To disable the documents expiration monitoring, set this option to "None".

    Important
    This option is obsolete and is used only for Cinegy Convert Legacy.
  • Default Docs expiration value – the default documents expiration value measured in the specified expiration units.

    The default documents expiration date defined here can be used during the document import if the expiration period is set to "Database default" in the watch folder settings configurator.

    Important
    This option is obsolete and is used only for Cinegy Convert Legacy.
  • Default expiration units – the time units to define the default expiration date: days, months or years, that can be used in the operations with expired objects by Cinegy Desktop plug-ins.

    The default expiration date may be set in the following units: days, months or years. To disable the expiration monitoring, set this option to "None".

  • Default expiration value – the default expiration value measured in the specified expiration units.

  • Default ingest expiration units – the time units to define the default capture expiration date: days, months or years, used as the "Roll info" default expiration date.

    Important
    This option is obsolete and is used only for Cinegy Convert Legacy.
  • Default ingest expiration value – the default capture expiration value measured in the specified units.

    Note
    You can change this expiration date for the selected Roll manually from the "Roll info" dialog in Cinegy Desktop.
    expiration_date
    Important
    This option is obsolete and is used only for Cinegy Convert Legacy.
Note
This functionality is obsolete and is no longer in use.
global_settings_federated_search

Federated search can be used to divert the search request to a specified web search engine. For example, if you want to use the Google search engine, enter http://www.google.com/search in the "URL" text field.

Note
To disable the Federated search feature, leave the field empty.

Interdatabase Operations

global_settings_interdatabase_operations

The "Allow to copy Rolls without footages" option is used when performing interdatabase operations. Set this option to "True" to enable copying Rolls between databases without their footages. The Rolls will share the same footages in Cinegy Archive.

Important
This option should be used with caution as it may cause issues with media cleaning when used incorrectly. Refer to the Coping Rolls without Footages section in the Cinegy Desktop Manual for more details.

Media Cleaner

media_cleaner_operations
  • Handle Duration – defines the amount of extra material preserved at every boundary of the referenced material during media cleaning. Using handles allows you to avoid compression artifacts occurrence and enables proper de-trimming of the clips.

    Note
    The duration cannot be less than 1 second.
  • Remove original files – if set to "True", enables the original files removal after media cleaning.

  • Unused fragment threshold – the threshold value for unused fragment that will be removed during media cleaning. If unused fragment is less than defined value, there will be no cuts in a new footage at this point and the unused fragment will be included in the cleaned footage.

    Note
    The default value of the unused fragment threshold is 10 seconds.
    Important
    Refer to the Media Cleaner section in the Cinegy Desktop Manual to learn more about Cinegy Media Cleaner.

Newswires

Newswires
  • Breaking news count – defines the amount of latest breaking news to be displayed in the Newswire browser.

  • Breaking news only from master - if set to "True", the breaking news are shown only for master database.

Reconnection

global_settings_reconnection

This option performs automatic reconnection to the server when Cinegy Desktop loses the connection.

  • Attempts – defines the number of attempts to reconnect to the server. A value of "-1" indicates that the number of reconnection attempts is unlimited (the client runtime attempts to connect to the server until it succeeds).

  • Timeout – defines the time delay in seconds between reconnection attempts.

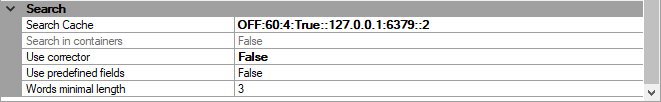

global_settings_search
  • Search Cache – enables caching the search requests for accelerating the repeated search results return.

    Tip
    This feature is especially useful for large databases.
  • Search in containers – enables/disables the object metadata search inside the containers.

  • Use corrector – if set to "True", enables the fuzzy search in Cinegy Desktop.

  • Use predefined fields – enables/disables the usage of the predefined descriptor fields during the full-text indexing and search operations. This can be useful for faster search and copying operations in large databases.

    When this option is set to "False", these fields will not be included in full-text indexing. The predefined fields, created or modified when the option is disabled, can be not found in some cases (for example, during the simple search). However, they can be found with advanced search or via direct search (with *).

    It is possible to rebuild the indexes and make these fields searchable. To do this, set the "Use predefined fields" option to "True" and run Cinegy Archive Database Wizard one more time or upgrade/patch the database.

    Caution
    For large databases this operation may take a long time.
  • Words minimal length – specifies the minimal length of searchable word in a search query.

Search Cache

Press the audio meter arrow down button button in the dedicated field to launch the "Search Cache Options" dialog:

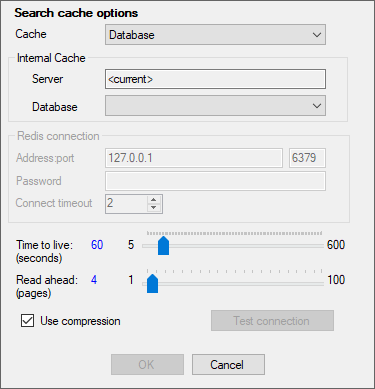

search cache options

Use the "Cache" drop-down list and select the corresponding option to cache the search withing the database or externally:

cache_list
  • OFF – to cache search results within current database;

  • Database – if selected, the cache search within defined database is enabled. Use the "Internal Cache" section to define the following parameters:

    • Server – defines the server address. Leave the default value to use the current one;

    • Database – the drop-down list to select the database.

  • External – if selected, the cache search within external server is enabled.

Redis connection

Redis is an in-memory data structure store, used as a database, cache and message broker, designed to store and retrieve data in a faster way. To use the Redis database, it should be installed and set up on the machine in advance.

Note
Refer to the Redis user manual to get details on the Redis installation and setup.

Define the following settings in the "Redis connection" to enable caching for external search:

  • Address:port – define the remote machine IP address and port of the machine;

  • Password – enter the password for access to the machine, if any;

  • Connect timeout – define the timeout for connection to the remote machine using the keyboard or the arrow up and down buttons.

For both database and external search caching, you can define the following settings:

  • Time to Live – the time interval in seconds for the cache to be saved upon the first search request processing.

  • Read ahead – the number of pages with the search request results to be cached.

  • Use compression – select the checkbox to enable the search request results compression for faster repeated request processing.

test connection button

Press the "Test connection" button to verify the defined connection settings. A corresponding message will appear to inform whether connection is successful:

test_connection

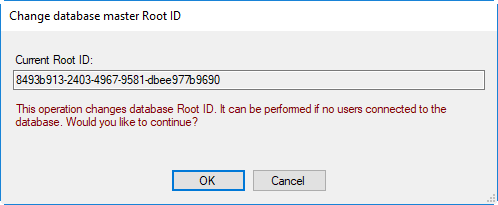

Change Master Root ID

Each root node in the database on the SQL Server is labeled with a Globally Unique Identifier (GUID) for their recognition.

Nevertheless, the situation can arise when root nodes in databases are labeled with identical GUIDs (e.g. when both databases are restored from the same backup). In this case, make GUIDs different for simultaneous work with these databases.

change_master_root_ID_button

Press the "Change master Root ID" button to change the root ID for the current database. The following dialog box appears:

change_master_database_root_ID
Caution
If there are any users connected to the current database, you ought to disconnect them before changing root ID.

Slave Databases

This functionality enables you to work with multiple databases simultaneously.

An example of the slave database usage is shown in the figure below:

slave_db_in_explorer

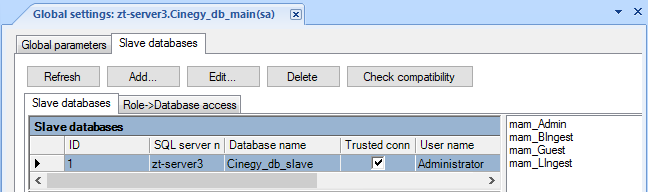

The "Slave databases" tab in the "Cinegy system settings" window is used for the setup and Cinegy Archive roles management of slave databases.

slave_database

Configuration

slave_database_refresh_button

The "Refresh" button updates the parameters of the slave databases that are listed in the table.

slave_database_add_button

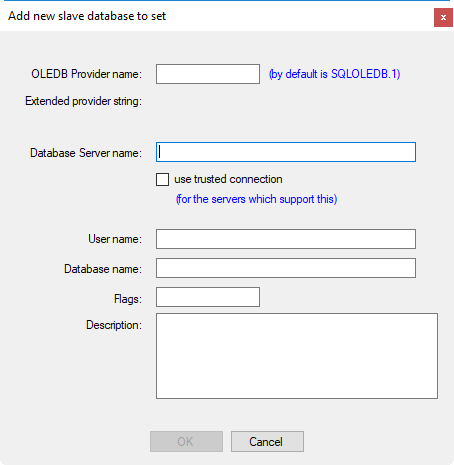

To add a new slave database, press the "Add…​" button. The following dialog box appears:

add_new_slave_db

The following parameters should be set:

  • OLEDB Provider name – defines the OLEDB provider name.

    Note
    Use the SQLOLEDB.1 provider name by default.
    Note
    To use the SQL Server Native Client OLE DB provider, set the "OLEDBProvider" parameter to "SQLNCLI.1".
  • Extended provider string – defines the provider specific connection parameters.

  • Database Server name – defines the server where the Cinegy Archive database is located.

    Note
    "Use trusted connection" means that Windows user account is used for authentication on the SQL Server. Corresponding user account should have at least read-only permissions assigned. If you deselect "Use trusted connection", you will need a dedicated username and password on the SQL Server.
  • User name – defines the SQL Server login.

  • Database name – defines the name of the slave database being used.

  • Flags – defines the database flag.

  • Description – allows you to add the description for the slave database being used.

Having specified all parameters, press the "OK" button. The new slave database will be added to the list.

slave_database_edit_button

The "Edit" button is used to edit the parameters of a selected slave database.

slave_database_edit_button

The "Delete" button is used to remove a selected slave database from the list.

slave_database_check_compatibility_button

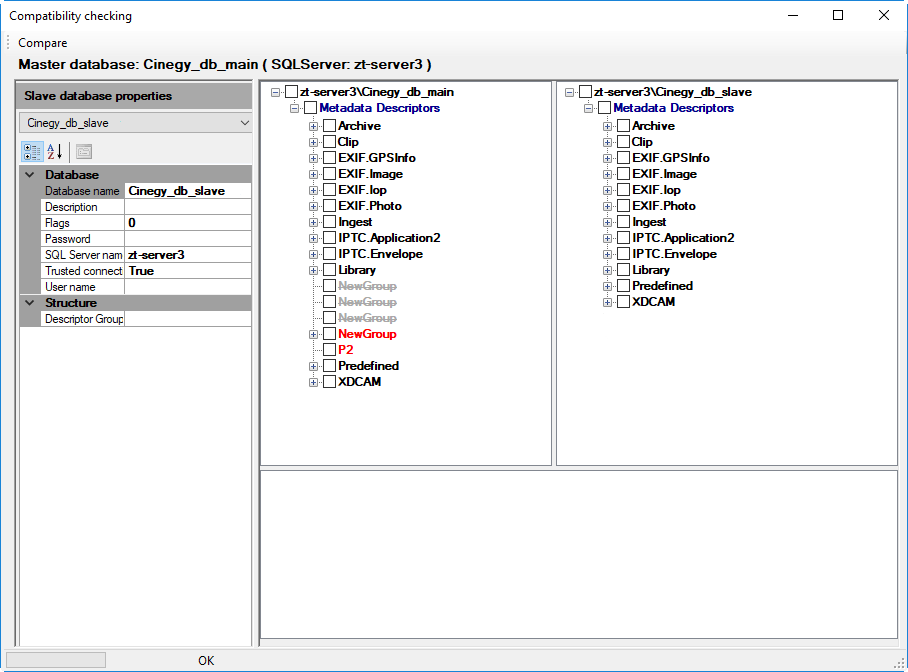

This option allows to compare the metadata model of the master database with the defined slave database(s). Press the "Check compatibility" button to open the "Compatibility checking" dialog:

compatibility_checking

Select the slave database from the drop-down list and press the "Compare" button located in the top left corner of the dialog box. Differences in metadata descriptors are colored in red.

Database Access

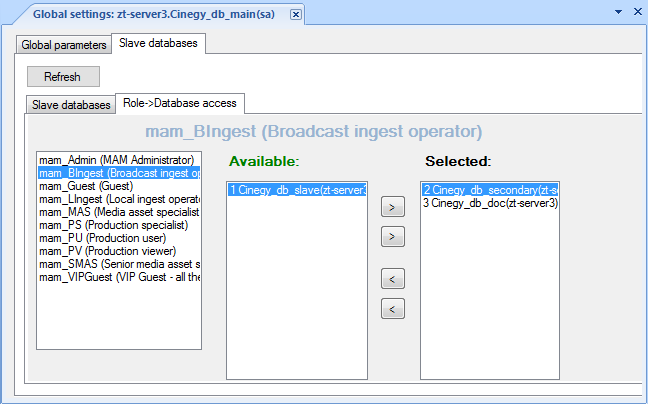

The "Role→ Database access" tab allows to perform role access management for slave databases.

database_access

You can permit access to selected databases to any Cinegy Archive role. To do this, select the Cinegy Archive role; then select the required database from the list and press the add_button button. Users will only have access to the specifically selected for their role slave databases.
