Cinegy Capture Control is very easy to manage due to its fully customizable interface where all panels are scalable and most of them are collapsible.

Servers/Templates Panel Customizing

The Servers / Templates panel comprises two tabs by default: "Servers" and "Templates". There are 2 ways to separate this panel into two individual ones:

  • via drag-and-drop;

  • via making the panel undockable.

Drag-and-drop

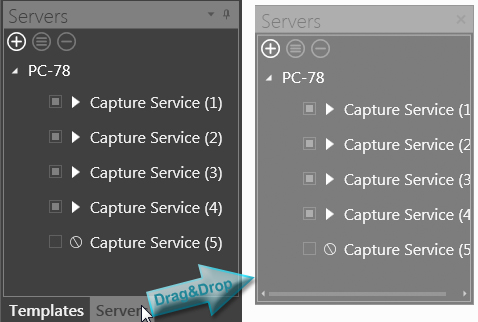

Click the tab title at the bottom of the panel and drag-and-drop it to the desired position:

Servers_tab

Floating

The Servers / Templates panel is docked by default. Right-click the panel caption and select the "Floating" context menu command:

Floating

The panel becomes floating and can be dragged to the desired position.

Dockable

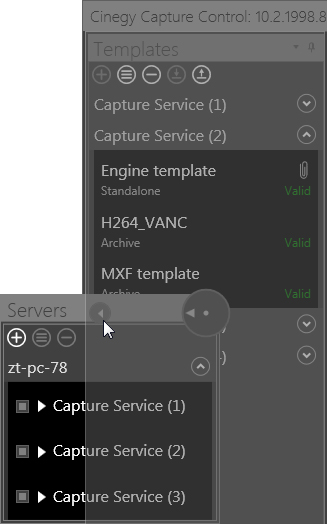

To dock a floating panel, select the "Dockable" command from its context menu. Then click the title bar of the panel and drag until you see the visual hints (see the screenshot). When the desired position of the dragged panel is reached, move the pointer over the corresponding portion of the hint. Destination area will be shaded. To dock the panel to the indicated position, release the mouse button.

Panel_Docking

Docking to the left window edge

Auto Hide

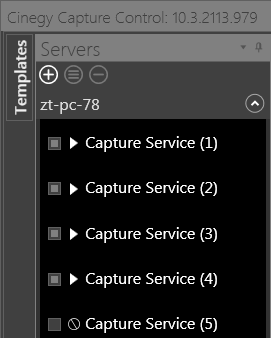

The dockable panel can either be pinned to be always shown on the screen or automatically hide and reappear when hovering the mouse pointer over the tab:

Pinned_andhidden

The "Servers" panel is pinned and the "Templates" panel is hidden

The panels are pinned by default, which is indicated by the Pinicon on the panel caption bar. To auto hide the panel, click this icon or choose the "Auto hide" context menu command:

Autohide_command

Resizing Panels

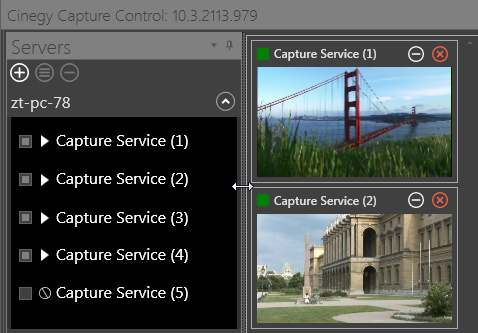

The width can be adjusted by positioning the mouse pointer on the grid line and dragging the sizing tool left or right:

Resizing

The minimum width of the rightmost panel is fixed in order to fit all control elements.

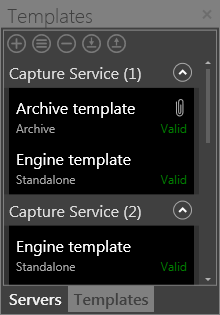

You can also use vertical scroll bar to display the information that does not fit the panel height:

Scrollbars

Collapsing Panels

The Cinegy Archive, Capture, Timeline Details, and Gang Control panels are collapsible.

Toggle_compact_view_button

Press this button on the panel caption bar to toggle a panel to compact view:

Cinegy_Archive_panel_collapsed

Compact view of the Cinegy Archive panel

In this view, only the most important information and main controls are displayed.

Toggle_detailed_view_button

Press this button on the panel caption to toggle a panel to detailed view:

Cinegy_Archive_panel_detailed

Detailed view of the Cinegy Archive panel

Detailed view shows the complete set of controls and comprehensive data.

Hiding/Showing the Panels

Some panels can be hidden to adjust the interface layout according to your needs. Select the relevant toolbar button to hide/show the corresponding panel.

Important
Refer to the Toolbar article to learn how to show/hide panels.

Scale Rule

Scale_Rule

The scale rule is a zoom slider used to change the interface scaling from 80% to 200%. Drag the slider to change the scale or simply click the ruler on the right or left from the slider to step the interface scale up and down accordingly.
