The following capture source types are currently supported:

AJA Video Board

The following settings can be configured for this input device type:

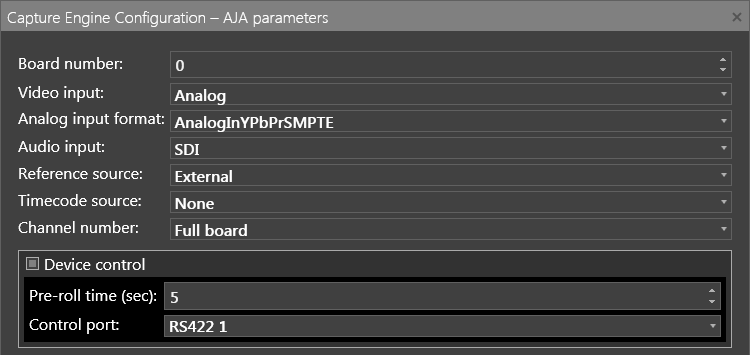

Engine_AJA_parameters
  • Board number – the AJA board number.

  • Video input – the video input type used for capturing.

  • Analog input format – the format type for the analog video capturing.

  • Audio input – the audio input type.

  • Reference source – the reference source for the AJA board.

  • Timecode source – the timecode type to be used for capturing.

  • Channel number – the channel number of the board. From the pull-down list select the required number from 0 to 5 for multichannel board or "Full board" for a single channel solution.

  • Device control – enables/disables device control and specifies the pre-roll time in seconds, as well as port used for control.

File Based Capture

For this input device you only need to specify the file path:

Engine_diagnostic_input_parameters
Note
This parameter is mandatory.
Note
File input device should be used only as a diagnostic input.

RTP/UDP Transport Stream

To set up capturing from the RTP/UDP stream, specify the following parameters:

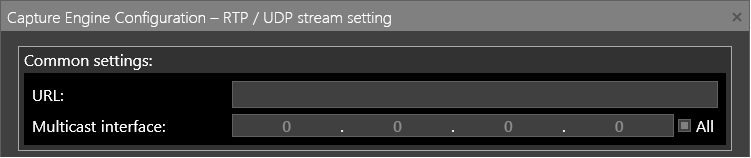

Engine_RTP_parameters
  • URL – the URL of the RTP/UDP source stream.

  • Multicast interface – uncheck the "All" option and define the IP address of the local network adapter to be used to get the stream. It can be useful when you need to divide the multicasting subnet from the working subnet.

For this input device you should specify the following parameters:

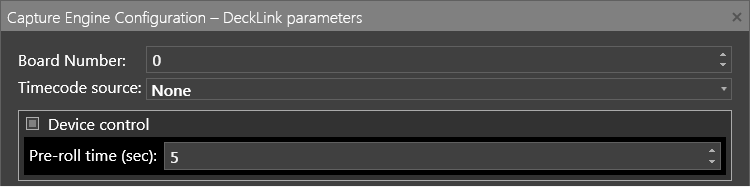

Engine_Blackmagic_parameters
  • Board number – the Blackmagic Decklink board number.

  • Timecode source – the timecode type to be used for capturing.

  • Device control – enables/disables device control and specifies the pre-roll time in seconds.

DVS Input Device

For the DVS Centaurus family specify the following parameters:

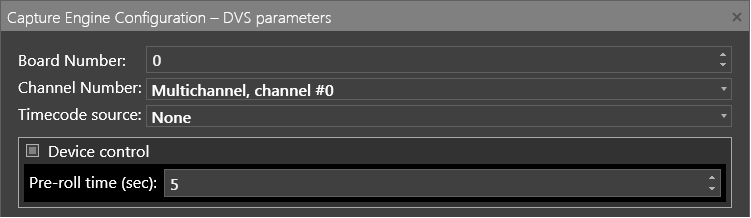

Engine_DVS_Centaurus_parameters
  • Board number – the DVS Centaurus board number.

  • Channel number – the audio channel(s) to be captured.

  • Timecode source – the timecode type to be used for capturing.

  • Device control – enables/disables device control and specifies the pre-roll time in seconds.

Deltacast Video Board

For this input device specify the following parameters:

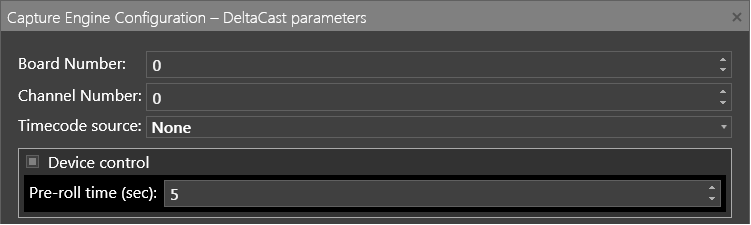

Engine_DeltaCast_parameters
  • Board number – the Deltacast board number.

  • Channel number – the audio channel number to be captured.

  • Timecode source – the timecode type to be used for capturing.

  • Device control – enables/disables device control and specifies the pre-roll time in seconds.
