The Planner host service provides interaction between the Cinegy Capture Engine services and web interface for scheduling recordings.

Planner Host Service Settings

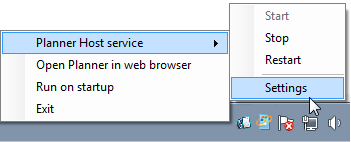

To configure the service, right-click the Cinegy Capture Planner Manager icon on the taskbar and select "Planner Host service" > "Settings" from the context menu:

Planner_host_settings

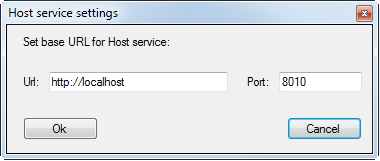

Specify the URL and the port of the machine with the running Host service:

Service_settings

Press "Ok" to apply settings.

Running Service

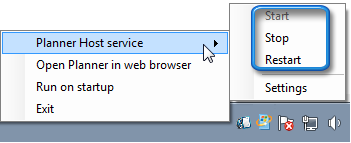

The service can be managed using the corresponding commands from the context menu of the Cinegy Capture Planner Manager icon in the notification area of the taskbar:

Planner_service_management

Launching Planner

To launch Cinegy Capture Planner Manager, use the "Open Planner in web browser" command from the context menu of the Cinegy Capture Planner Manager icon in the notification area of the taskbar:

Planner_open_web

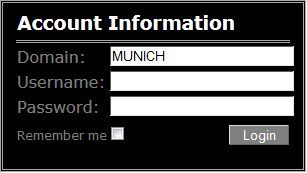

The application will be open in your web browser asking you to enter user account information:

planner_account_information

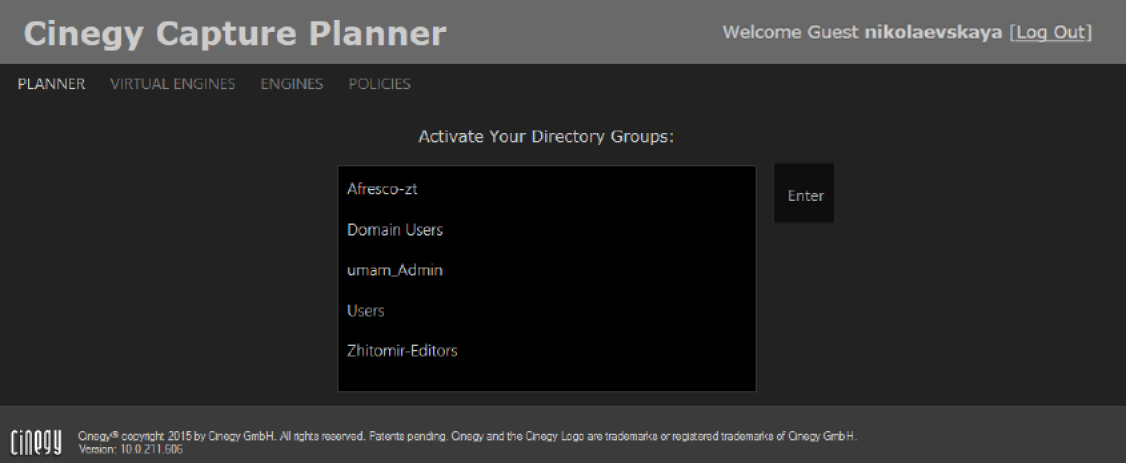

Access to the Planner is limited by the domain user rights. During the first launch the "Guest" rights are assigned to the user. Select the corresponding user group from the list and press the "Enter" button:

Planner_directory_group

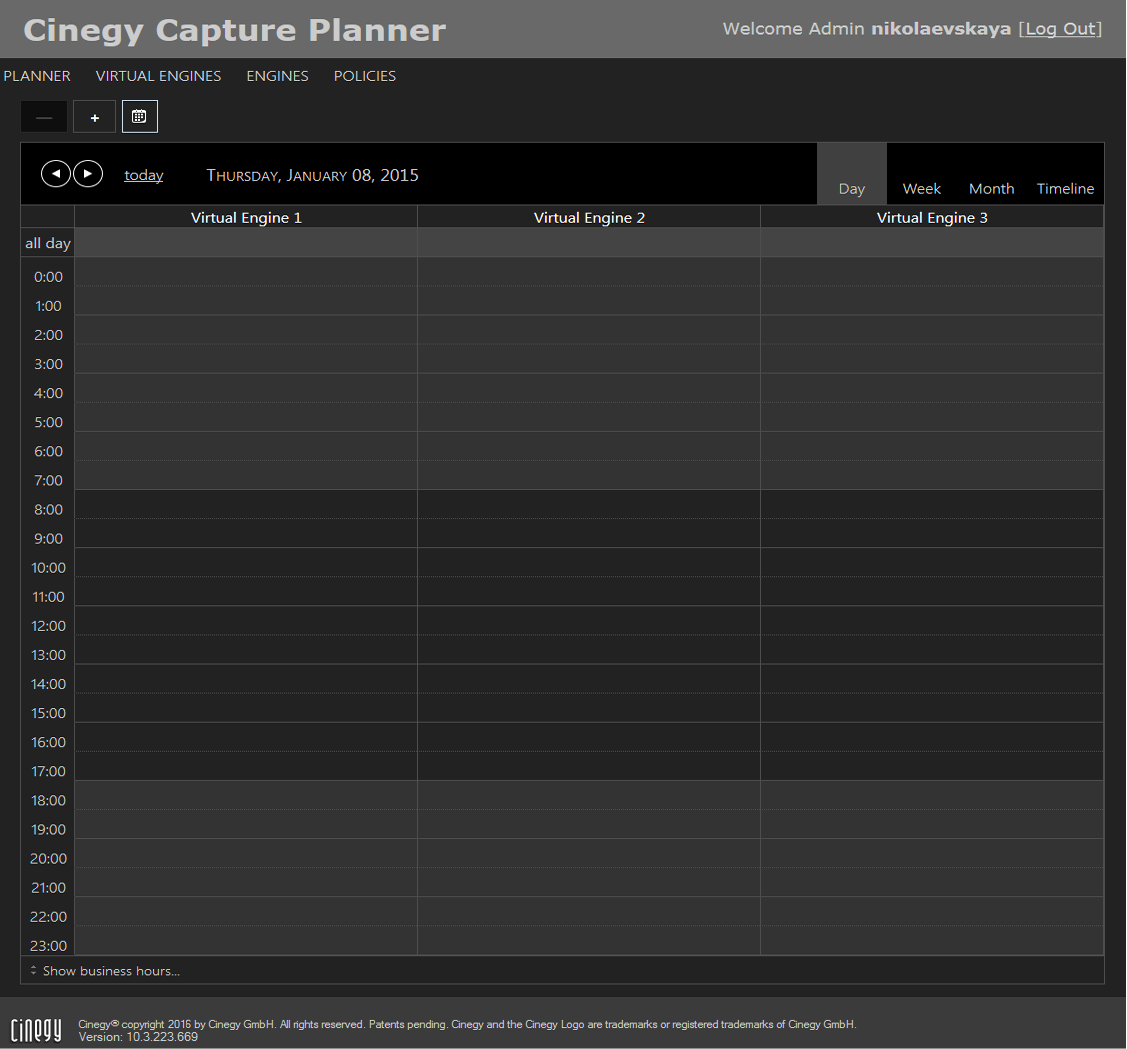

Having successfully logged in, the following window is open:

planner_schedule

In order to start creating schedule with Cinegy Capture Planner Manager, a number of settings should be configured as described in other articles.
