In order to begin the Cinegy Capture Planner installation, run the Capture.Planner.Setup.msi file from your Cinegy Planner installation package. Your system will be checked for the required components. If any components are missing, they will be installed automatically.

Then the setup wizard will be started:


Press "Next" to proceed with the installation or "Cancel" to abort and exit the setup wizard.

Read and accept the license agreement.

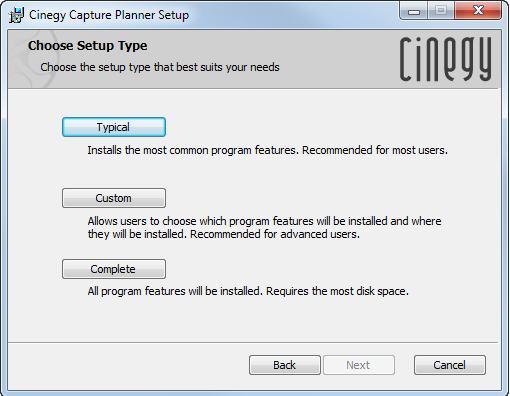

Define the Cinegy Capture Planner installation type and press "Next" to proceed.


The following installation types are available:

  • Typical – the most common features will be installed.

  • Complete – all program features will be installed.

  • Custom – allows user to choose manually the components to be installed. Pressing this button will open the following dialog:


    Here select the required components and press the "Next" button.

The confirmation dialog asks you to confirm your decision about the Cinegy Planner installation.

Press the "Back" button to return to previous steps of the installation wizard and make changes, if needed. Press "Install" to begin the installation.

During the Cinegy Capture Planner installation a number of necessary Windows features are installed.

The following dialog will inform you that the installation is complete:



The Cinegy Capture Planner Manager installer creates the program icon on the Windows desktop for all the users of the PC.

When started, the Cinegy Capture Planner Manager icon is displayed in the notification area of the taskbar.

To make Cinegy Capture Planner Manager automatically run on Windows startup, right-click the icon on the taskbar and select the corresponding option from the context menu:
