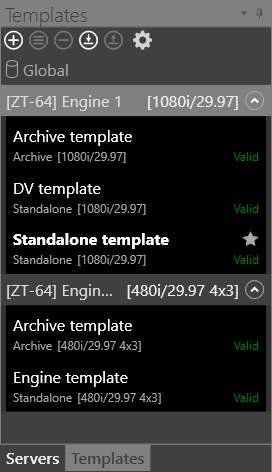

The Templates panel provides means for creating and customizing Engine templates:


The Engine templates individually configured for each Cinegy Capture Engine service as well as for the global PCS storage are listed here. The type and validity information is displayed for each Cinegy Capture service template and only type information is displayed for PCS templates.

To create a new local template, select the required service on the "Templates" panel. To create a new global template in the global PCS storage, click "Global". Press the Add button, Template Editor will be launched. The configuration groups and parameters to be set up depend on the template type chosen: Standalone or Archive.

You can create as many Engine templates for each Engine service as you need to meet your capturing requirements.

Global PCS Storage

The global PCS template storage serves as a centralized database where preconfigured Standalone and Archive templates are held and can be easily accessed.

Refer to the Cinegy Process Coordination Service Manual to learn about PCS installation and database configuration.

Press the Global_storage_settings button to launch the PCS configuration form:


In the dialog box that appears, specify the machine name running Cinegy PCS service and press "OK". The templates from the specified PCS storage will appear in the "Global" section:


Standalone Templates

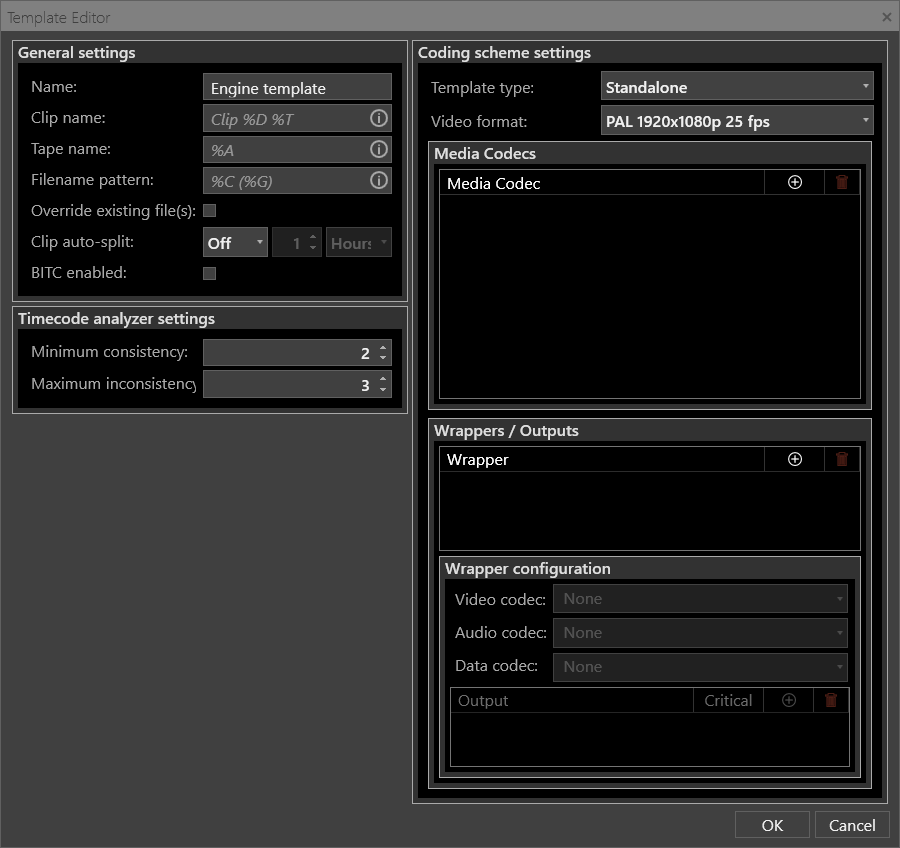

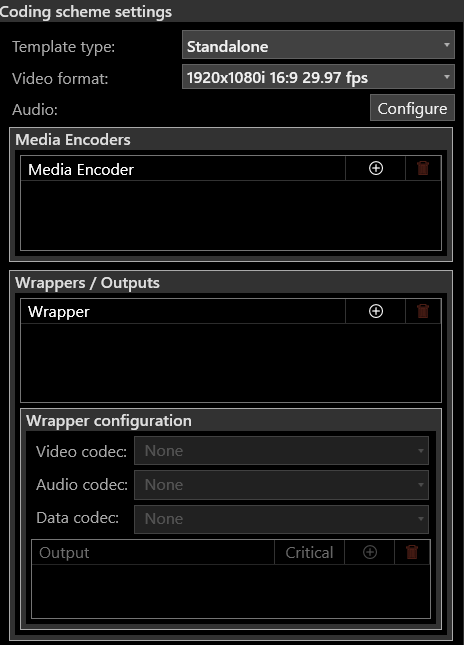

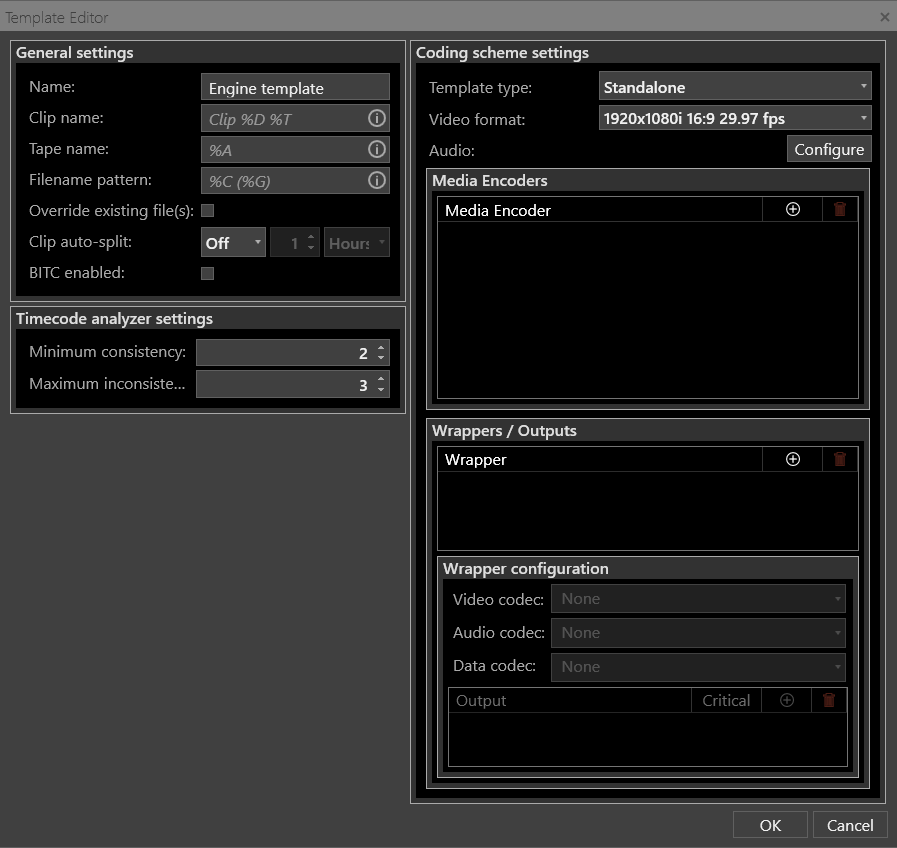

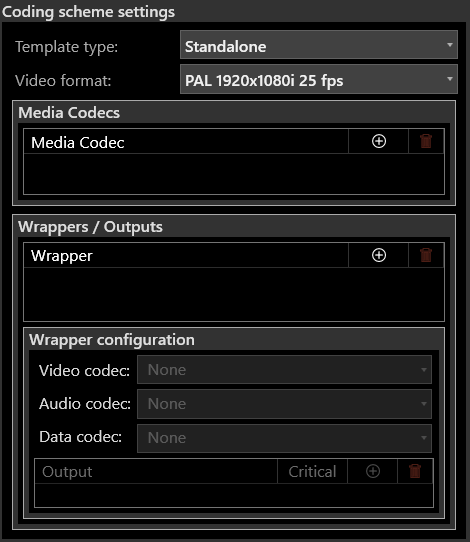

When the "Standalone" template type is selected, Template Editor looks as follows:


General Settings

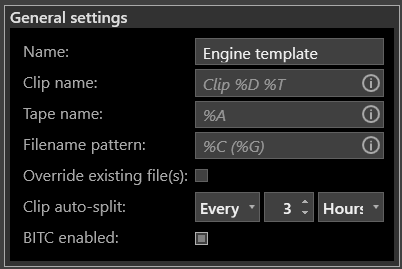

Here specify the following parameters for your recording session:

  • Name – the name of the Engine template being created/edited.

  • Clip name – the name of the clip(s) to be created during the recording session.

  • Tape name – the tape name to be created during the recording session.

  • Filename pattern – the name of the output file(s).

    For "Clip name", "Tape name" and "Filename pattern" you can use the following macros to apply naming automation:



    Generates random alphanumeric tape ID.

    The %A macros is only available for the "Tape name" field.


    The specified clip name. The unsafe characters are replaced with the "-" symbol.


    The recording session start date.


    Generates unique GUID for the recorded resource.


    The recording session start time.


    The ordinal number of the file when the recording session is set up to be split into several files.


    The ingest operator.


    The TV format.

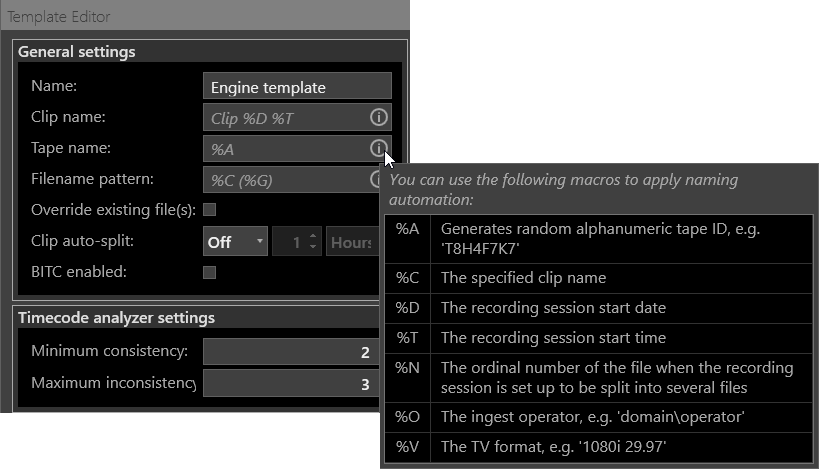

Hovering the mouse over the info_signsign displays additional information on macros usage in a tooltip:

  • Override existing file(s) – with this option enabled, the existing files having the same names will be replaced with the ones being captured during the recording session.

  • Clip auto-split – the frequency of a new clip creation during the recording session. Use this option during continuous capture sessions to avoid creating huge files, splitting them into smaller ones instead.

  • BITC (Burnt-in Timecode) enabled – select this option to overlay the timecode onto the output during the recording session.

Timecode Analyzer Settings

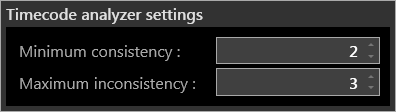

This parameters group allows you to specify values for analyzing timecodes received from the timecode normalizer, both in frames. Minimum values of 2 and 3 frames respectively are used by default. Maximum values are 18 and 19 frames respectively.

If inconsistency between timecodes is less than the "Maximum inconsistency" value and the number of inconsistent timecodes is less than the specified "Minimum consistency" value, the TC break is ignored, and the capture session continues.

Here is an example where the TC can be restored: 1 2 3 4 x x 7 8 x 10 11 12 13 14 15…​

In this example, timecodes are inconsistent between frames 4 - 7 and 8 - 10. In both cases, maximum inconsistency does not exceed 3 frames (7–4=3 and 10–8=2) and the number of consistent timecodes does not exceed 2. As a result, this timecode inconsistency is ignored, and the capture session continues with no TC break; the consistent timecodes are generated.

Coding Scheme Settings in Standalone Mode


The "Standalone" template type means that only media files will be created on the hard disks with no registration in MAM systems. Any number of the output streams, formats and files can be supported in standalone mode. All the encoder parameters should be set individually for each encoder and wrapper.

Video Format

The "Video Format" field indicates the Cinegy Capture Engine video format. When creating a new template or editing existing one, the current video format can be changed by choosing the desired one from the drop-down list. The compatible codecs and wrappers will become available for the newly selected video format.

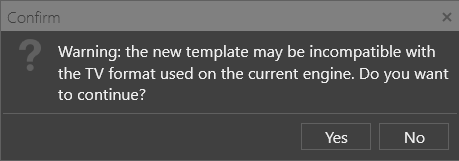

If the chosen format differs from the input TV format, the following dialog appears asking you to confirm your decision:


Media Codecs


Press the "Add" button to add a new video, audio and data codecs to be used by the current template for the recording session. The list with all compatible codecs will appear:


In the corresponding sections select the required video, audio and data codecs. To select several codecs within each section, click them holding the Ctrl key down or use Shift+ click to select a group of consecutive items.

The list of available codecs may vary depending on the selected template video format. The audio and data codecs are only available when audio and data streams are properly configured via Cinegy Capture Manager for your Engine service.

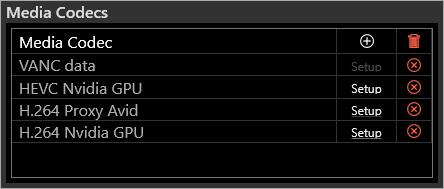

After you select the required codecs and press "OK", they will be represented in a table view as it is shown below:



Some codecs have additional settings. Press "Setup" next to the corresponding codec or simply double-click its name to specify the required parameters.

Refer to the Codec Settings paragraph for details on codec configuration.


Pressing this button will remove all encoders from the list. You will be asked to confirm your decision with the following message:



Press this button next to the corresponding encoder to remove it from the list. Alternatively, select the unnecessary encoder and hit the Del key to delete it.

Wrappers / Outputs


Press the "Add" button to add wrappers to be used for output by the current template for the recording session. The list of all available wrappers will appear:


Here select the required wrapper(s) from the list with the Ctrl key pressed or Shift+ click an item to select all the items between the last selected wrapper and the clicked one.

Only one wrapper type can be selected in Capture SOLO Edition mode.

After you select the required wrappers and press "OK", they will be represented in a table view as it is shown below:

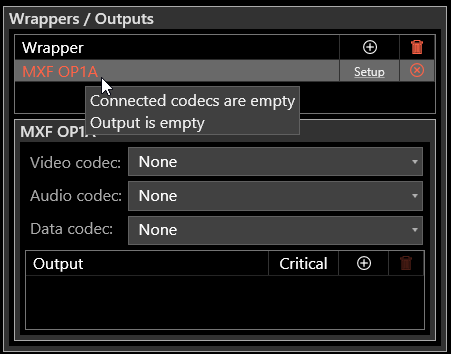

All the wrappers are displayed in red until they are properly configured; do the following:

  1. Select the required wrapper from the list.

  2. Some wrappers have additional settings; press Setup_link next to the corresponding wrapper or simply double-click its name to specify the required parameters.

    Refer to the Wrapper Settings paragraph for details on video encoders configuration.
  3. Select the desired codecs from the lists of compatible video/audio/data encoders that have been previously added to the "Media Codecs" list:

  4. Press the Add_template button to specify the output location. In the "Add Output" window that appears, press the browse_button button and browse for the desired location:


    Any individual output location can be marked as "critical" meaning that the failure of this output should cause the recording session to abort. Set the "Critical output" option to mark the required location as critical output. Alternatively, this can be done directly from the "Output" panel by checking the Critical" option.

    It is possible to add several output locations for each wrapper.
Only one output location can be added for a wrapper in Capture SOLO Edition mode.

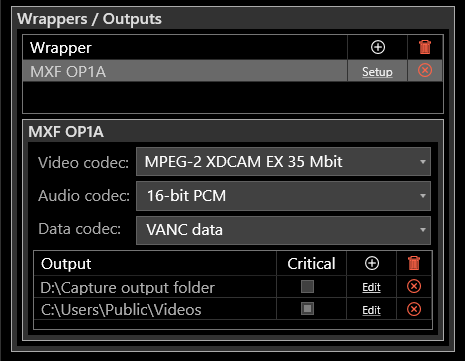

Multiple wrappers with individually configured connected codec(s) can be added to each template as follows:



Press the "Edit" link next to the corresponding output location to change it, if needed. You can also edit the output location by double-clicking the output name.


Press this button next to the corresponding wrapper / output location to remove it from the list. Alternatively, select the unnecessary wrapper / output and hit the Del key to delete it. You will be prompted to confirm your decision.


Press this button to clear all the selected wrappers / output locations from the list.

Archive Templates

Archive mode is only available with Cinegy Archive Service installed and running as well as with running and properly configured Cinegy Capture Archive Adapter.
Capture SOLO Edition mode does not support Archive templates creation.

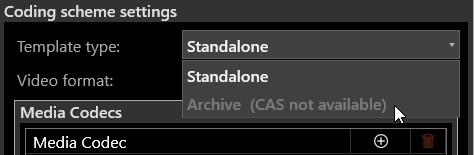

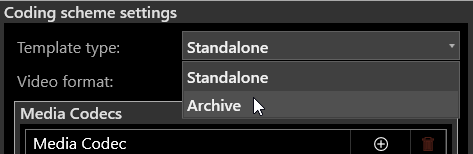

Select the "Archive" option from the "Template type" drop-down list:

Please note that changing the template type causes the reset of your coding scheme settings.

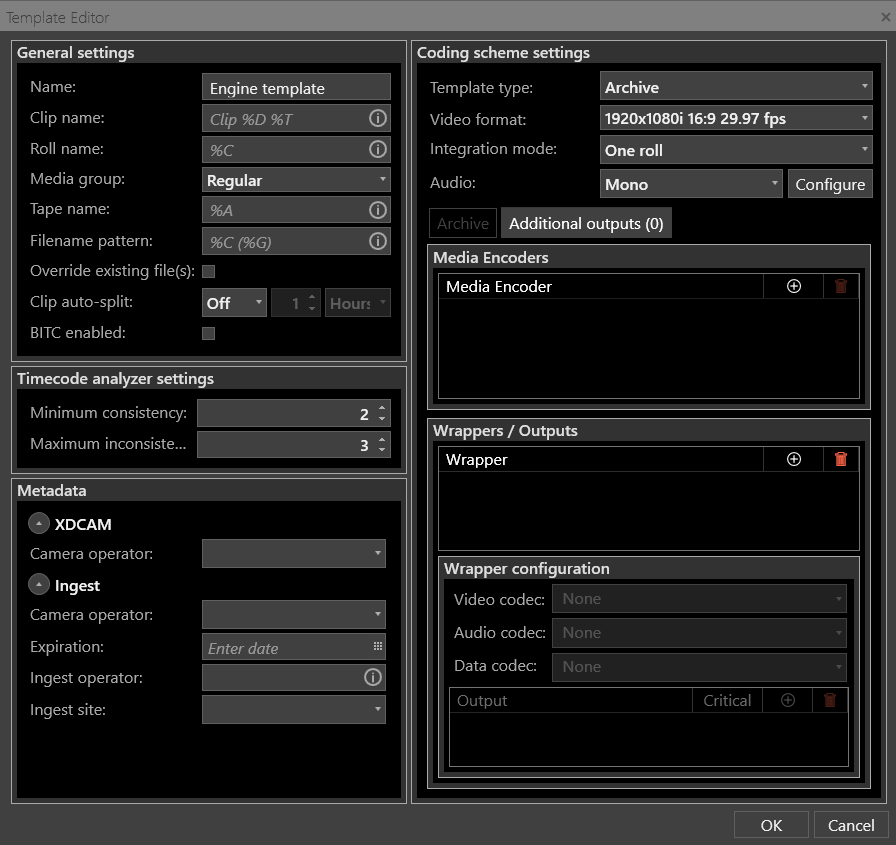

When the "Archive" template type is selected, the Template Editor looks as follows:


General Settings

The "General settings" configuration of an archive template is similar to that of a standalone template except for the following parameters:

  • Roll name – the name of the Roll(s) to be created during the recording session;

  • Media group – the media group to be used for the recording session (selected from the drop-down list).

    Refer to the Media Groups paragraph in the Cinegy Enterprise Manager Manual to learn about media groups, their configuration and management.

Use macros in the corresponding fields to apply naming automation.

The "Timecode analyzer settings" are identical for both the standalone and the archive template types.

Metadata Settings

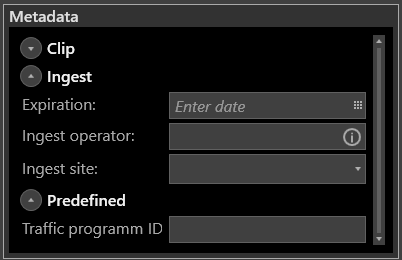

In the "Metadata" parameters group specify the necessary ingest metadata in the corresponding fields.

The list of metadata fields depends on your database settings.

Coding Scheme Settings in Archive Mode

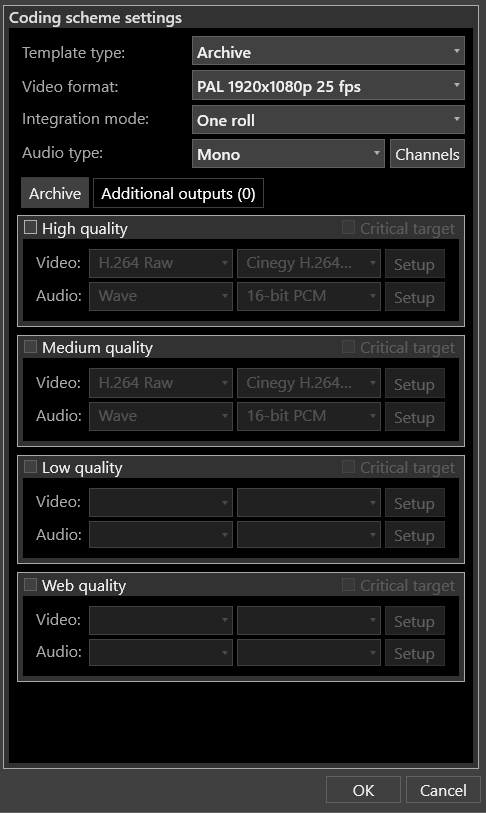

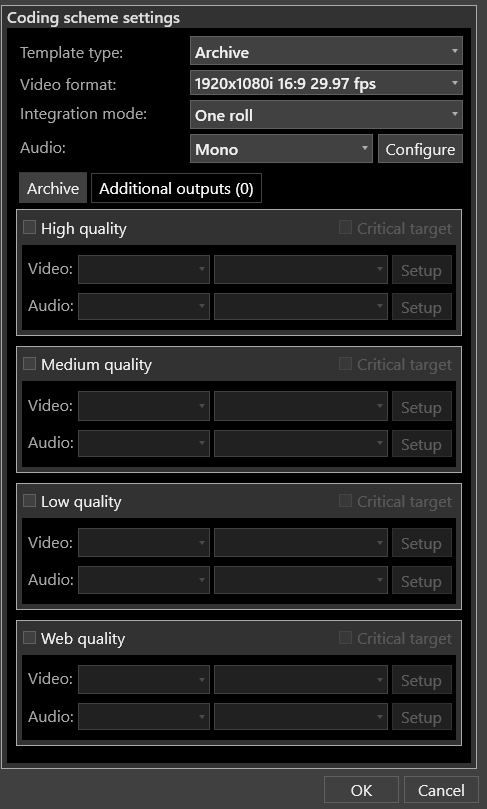

Here define the Roll creation rules for your capture session choosing the appropriate parameter from the "Integration mode" drop-down list:

  • One roll – all the captured clips will be recorded into a single Roll.

  • One roll per day – all the clips captured on a particular day will be recorded into a single Roll.

  • One roll per session – all the clips captured during a particular capture session will be recorded into a single Roll.

  • One roll per TC sector – each timecode segment of the particular capture session will be recorded into a separate Roll. Each timecode break will cause a new Roll creation.

If macro is specified for the Roll name within the "General Settings" configuration group, the corresponding Roll creation rule is applied regardless of integration mode defined.

Define the audio type to be used for encoding audio streams. All the available in Cinegy Desktop audio allocators can be configured here. Choose between stereo and mono from the "Audio type" drop-down list. Clips will have mono or stereo audio tracks depending on the audio type used for capturing. Select the "Channels" option next to the defined audio type; the "Audio Channels" configuration dialog appears:

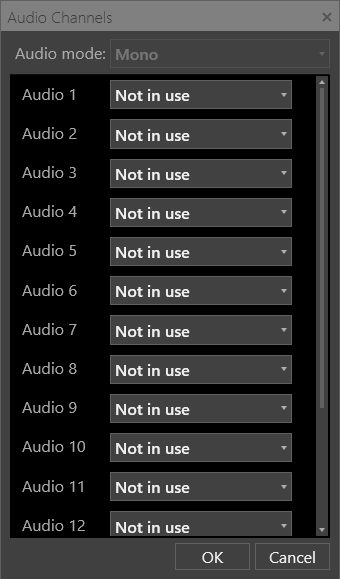

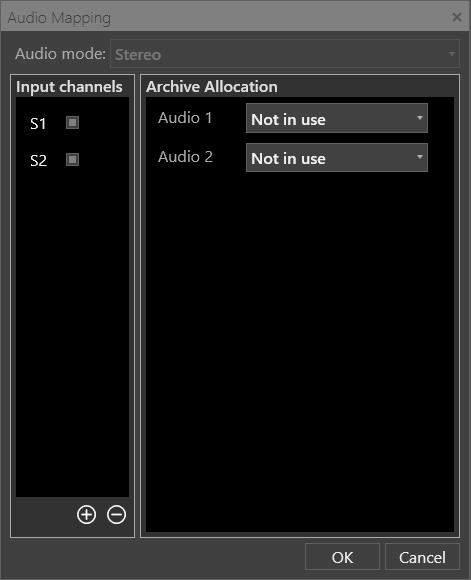

Here the 16 audio allocation channels can be configured independently, regardless of the audio channels number configured for your Engine service. For each audio channel it is possible to define its type or disable it by selecting "Not in use" option.

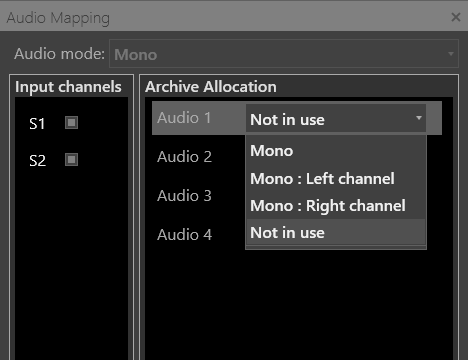

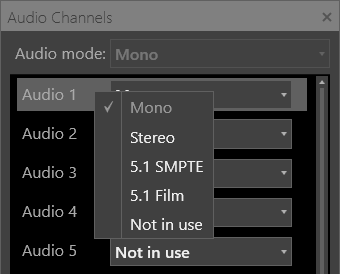

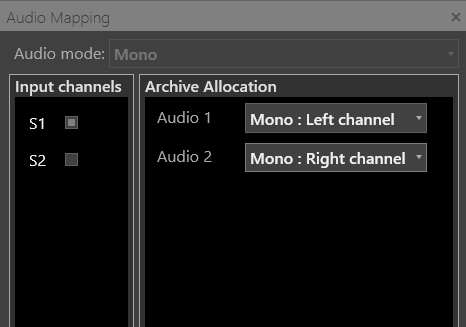

In mono audio mode it is possible to set the channels to be captured and define the type they will be captured to – mono, stereo or 5.1 SMPTE or 5.1 Film. For this, right-click anywhere within the channels table and select the desired type:

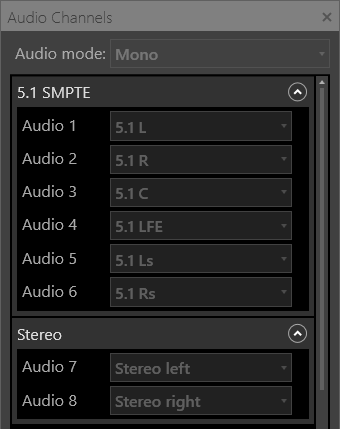

Mono channels will be grouped accordingly:


Having specified the audio channel types for your capture session, press "OK" to apply the changes.

The separate sets of encoders are available for mono and stereo audio types.
The Material Exchange Format (MXF) wrapper is available only for mono audio encoding type.

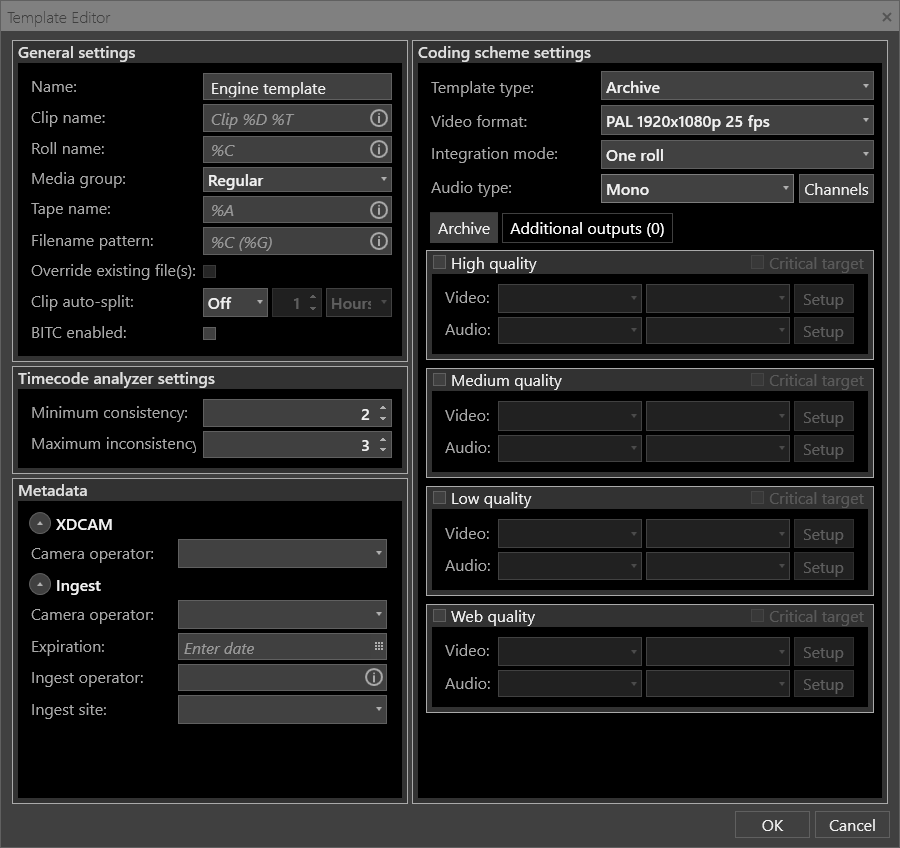

Multiple quality levels can be captured concurrently in one session. The typical qualities are:

  • High

  • Medium

  • Low

  • Web

Select the desired material quality, choose the required video and audio encoders, and define their configuration. Having chosen the quality, select the "Critical target" checkbox to set both video and audio as critical outputs for the recording session. In case of video or audio failure, the whole recording session fails as well.

Refer to the Multiple Qualities article within the Cinegy Ingest Manual for detailed information on quality levels used for capturing.
Refer to the Codec Settings article for details on encoders configuration.

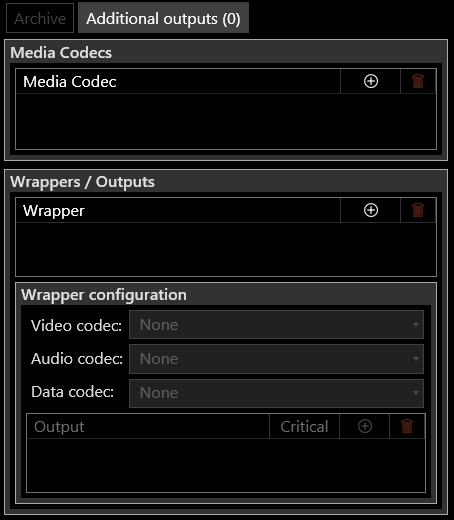

Go to the "Additional outputs" tab to define additional output formats supported in your template:

The outputs configuration is similar to one described in the Coding Scheme Settings in Standalone Mode paragraph.
Note that the archive outputs are captured into the target folders and registered in the Cinegy Archive database, while additional outputs are written as standalone files (with no Cinegy Archive registration).
For better usability, the number in the "Additional outputs" caption corresponds to the quantity of specified additional outputs in the current template.


Having specified all the necessary capturing session parameters, press the "OK" button to finish the template creation process. To close Template Editor without changes, press the "Cancel" button.

Templates Management

Exporting and Importing


Use the "Export template" button to save the selected template in the *.TSchema or *.xml file formats. The following dialog box appears asking you to define the location where your template will be stored:


It is also possible to import several templates at once.


Use the "Import template" button to load the previously saved template in the *.TSchema or *.xml file formats to the currently selected Capture Service. The following dialog box appears asking you to select the needed file to be imported:

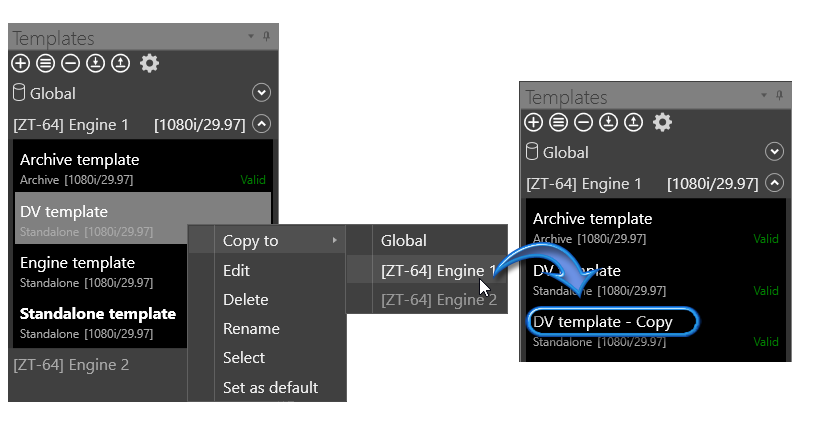

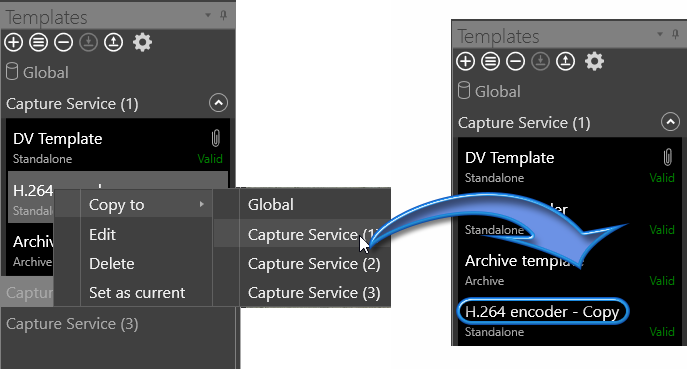

To copy a template within the same or to another Engine service, use the "Copy to" context menu command. The preconfigured templates from the global PCS storage can be copied to Engine service(s) similarly. The Engine templates can be copied to the global PCS storage as well:


Alternatively, use simple drag-and-drop holding the Ctrl key down or the usual key combinations Ctrl+C to copy and Ctrl+V to paste the copied template.

It is also possible to copy multiple templates at a time.


To move a template to another Engine service or to the global PCS storage, use simple drag-and-drop. Alternatively, use the common Ctrl+X and Ctrl+V key combinations.



You can edit any selected template by pressing the "Edit template" button or using the "Edit" context menu command:



In order to rename a template, select it and press F2 key or simply double-click it on the Templates panel; then enter a new name in the corresponding field.



You can remove any selected template (or several templates) by pressing the "Remove" button or by selecting the "Delete" command from the context menu:


Alternatively, select the template and hit the Delete key.

You will be prompted to confirm the deletion.

Setting Current Template

Having several Engine templates configured, it is possible to choose the current one that will be used for recording session.

This option is available for valid templates only.

To do this, right-click the template you need and select the "Set as current" command from the context menu:


The PCS templates can be set as current for a certain Engine service by using the "Set as current for" command from the context menu:


This option is available for the PCS templates using the same input video format as defined for the Engine service.

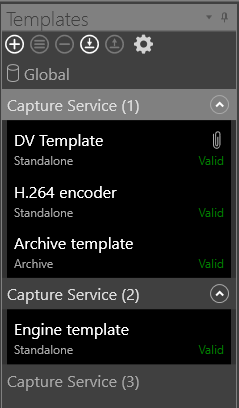

The paper clip icon next to the template name identifies the current template being used for recording session.


All the templates of the Engine services are automatically checked for validity and have a respective indication (valid and invalid):


Hover the mouse pointer over the "Invalid" indicator to display the tooltip describing a problem.

Archive templates are not supported in Capture SOLO Edition mode. Previously created valid Archive templates are displayed as "Invalid".
