All capturing parameters and controls of the currently selected Capture service are displayed on the Capture panel:
Choose the created Cinegy Capture Engine template from the "Capture template" drop-down list. This template will be used for the recording session.
|DEV controls are only available for the SDI boards with device control enabled. Refer to the Capture Source paragraph for more information on capture source configuration.|
Having selected the valid template, you are ready to start the capture session by pressing the "REC" button and monitor this process in real-time.
Press the "SPLIT" button during the capture session to force a new Roll / file creation starting from the current position.
Press the "STOP" button to stop a running capture session.
|The same actions are possible with Cinegy Capture Web Control.|

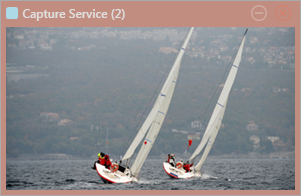

The Engine performing a recording is marked with a blue button and red window frame:
