Cinegy Capture Control is very easy to manage due to its fully customizable interface where all panels are scalable and most of them are collapsible.
Servers/Templates Panel Customizing
The Servers / Templates panel comprises two tabs by default: "Servers" and "Templates". There are 2 ways to separate this panel into two individual ones:
via making the panel undockable.

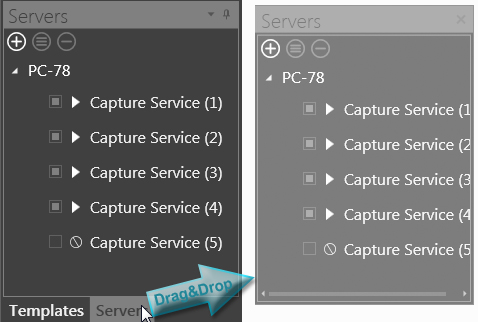

Click the tab title at the bottom of the panel and drag-and-drop it to the desired position:
The Servers / Templates panel is docked by default. Right-click the panel caption and select the "Floating" context menu command:
The panel becomes floating and can be dragged to the desired position.

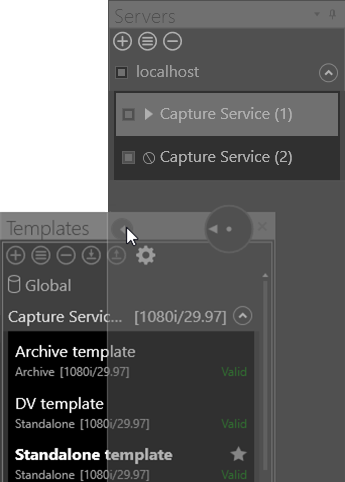

To dock a floating panel, select the "Dockable" command from its context menu. Then click the title bar of the panel and drag until you see the visual hints (see the screenshot). When the desired position of the dragged panel is reached, move the pointer over the corresponding portion of the hint. The destination area will be shaded. To dock the panel to the indicated position, release the mouse button.
Docking to the left window edge
The dockable panel can either be pinned to be always shown on the screen or automatically hide and reappear when hovering the mouse pointer over the tab:

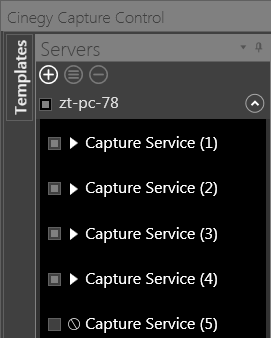

The "Servers" panel is pinned and the "Templates" panel is hidden
The panels are pinned by default, which is indicated by the icon on the panel caption bar. To auto hide the panel, click this icon or choose the "Auto hide" context menu command:

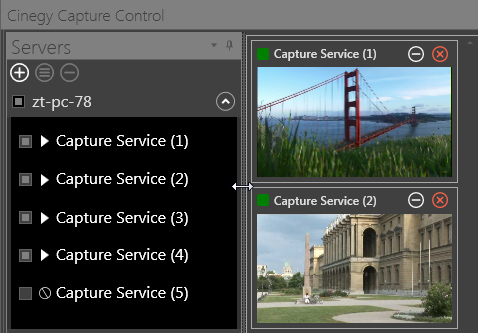

The width can be adjusted by positioning the mouse pointer on the grid line and dragging the sizing tool left or right:
The minimum width of the rightmost panel is fixed in order to fit all control elements.

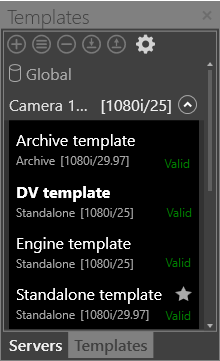

You can also use the vertical scroll bar to display the information that does not fit the panel height:
The Cinegy Archive, Capture, Timeline Details, and Gang Control panels are collapsible.
Press this button on the panel caption bar to toggle a panel to compact view:
Compact view of the Cinegy Archive panel
In this view, only the most important information and main controls are displayed.
Press this button on the panel caption to toggle a panel to detailed view:
Detailed view of the Cinegy Archive panel
The detailed view shows the complete set of controls and comprehensive data.
Hiding/Showing the Panels
Some panels can be hidden to adjust the interface layout according to your needs. Select the relevant toolbar button to hide/show the corresponding panel.
|Refer to the Toolbar article to learn how to show/hide panels.|
The scale rule is a zoom slider used to change the interface scaling from 80% to 200%. Drag the slider to change the scale or simply click the ruler on the right or left from the slider to step the interface scale up and down accordingly.
