Cinegy Capture has a unified installer that allows installing all components you need.
|It is required to install critical Windows updates before the application installation.|
|Installation of .NET Framework 4.6.1 or later is required prior to the Cinegy Capture installation. In case online installation takes place, the web installer will update the system components, if necessary. The offline installer can be used if the web installer is unavailable due to lack of Internet connection. In this case, make sure the .NET Framework 4.5 is activated as a Windows feature, then download the corresponding offline installer package directly from Microsoft website. After the .NET Framework 4.6.1 is installed, the OS reboot is required. Otherwise, the installation may fail.|
To start the installation, run the Cinegy.Capture.Setup.exe file. The setup wizard will be launched:

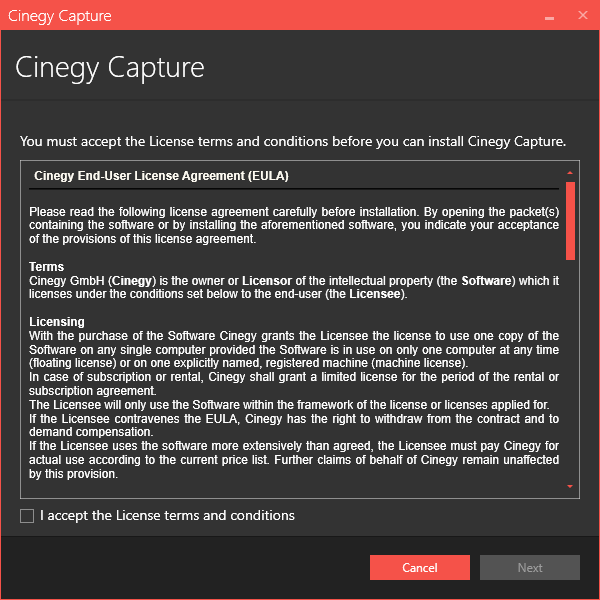

Read the License agreement and select the checkbox to accept its terms.

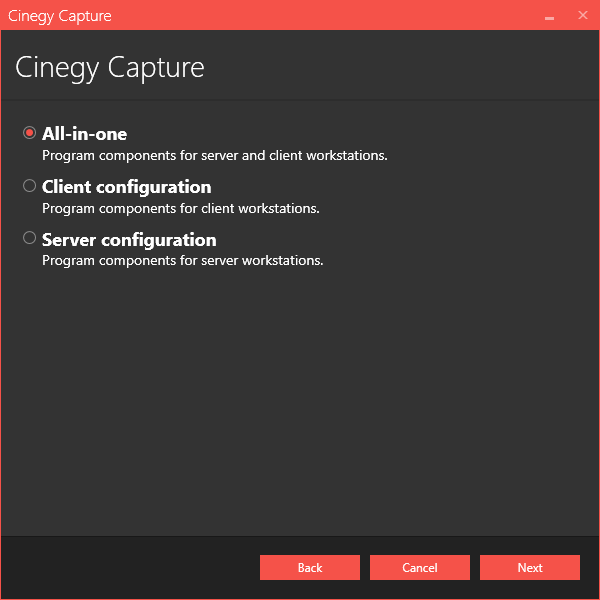

Select the installation mode depending on the requirements of using Cinegy Capture on the given machine:
All-in-one – all product components will be installed with their default settings.
Client configuration – the product components for client workstations will be installed with their default settings.
Server configuration – the product components for server workstations will be installed with their default settings.
All the package components available for the selected installation mode are listed in the following dialog:
Enables installation of the Cinegy Capture component(s) is indicated by the "Install" option selected and highlighted with red.
Select the "Skip" option next to the relevant component to disable its installation.

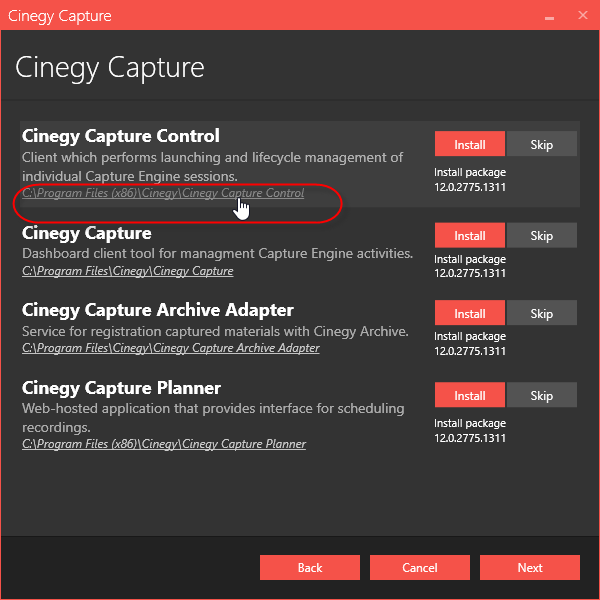

The default installation directory, which is indicated underneath the package component name, can be changed by clicking the path:
In the "Browse for folder" dialog that appears, select the required folder for your installation.
You can also create a new folder by pressing the "Make New Folder" button and entering a new folder name. Once the folder is selected, press "OK".
Press "Next" to proceed with the installation.

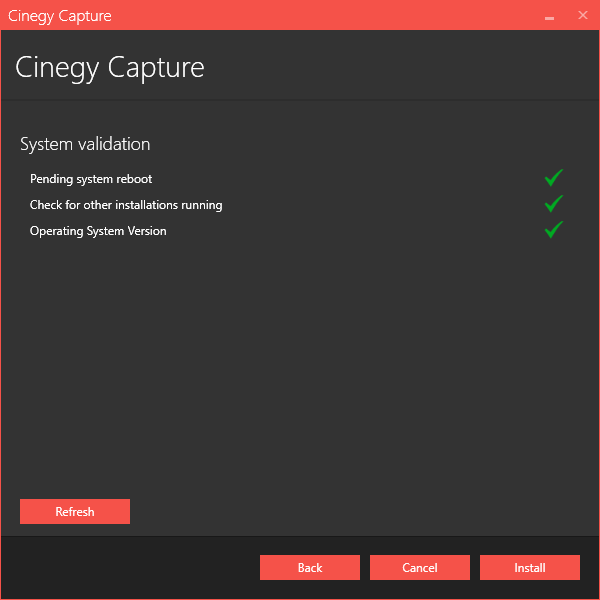

Check whether your system is ready for installation in the following dialog:
The green tick indicates that the system resources are ready and no other processes may prevent installation. Clicking the validation entry field displays its detailed information.
While the system performs verification of any parameter, the checking progress is displayed.
If the validation reveals that installation cannot be started, the respective field is highlighted and the red cross is displayed with the detailed information on the failure reason below.
|The explanation differs depending on the reason why the installation cannot proceed.|
Press the "Refresh" button for the system to recheck installation availability. Once the obstruction is removed, you can proceed with installation.
Press "Back" to change the installation settings or "Cancel" to abort and exit the setup wizard.
Press the "Install" button to begin the installation.
The progress bar indicates the progress of the installation process.

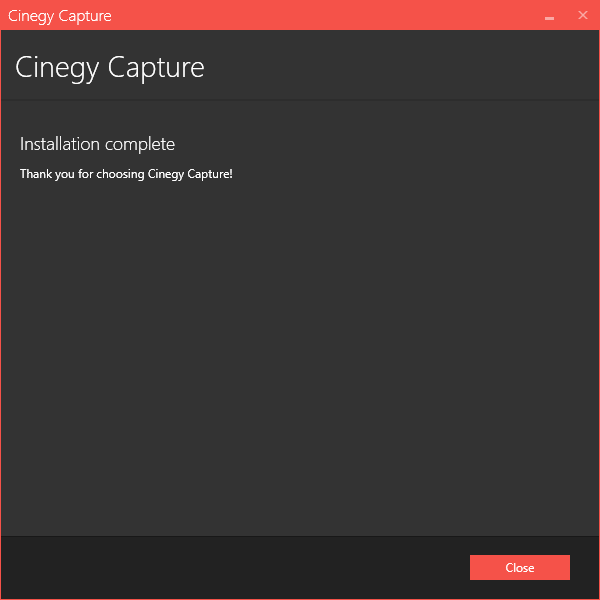

The following dialog indicates that installation is completed successfully:
Press "Close" to exit the wizard.
