Cinegy Capture Web Control displays all running Capture Engines. The Engine caption displays the Engine name, status and preview mode toggle button.

Important
Refer to the Preview Mode paragraph for details on preview mode switching.

The Cinegy Capture Web Control panel view can be changed by means of the layout selector allowing to switch between different panel layouts.

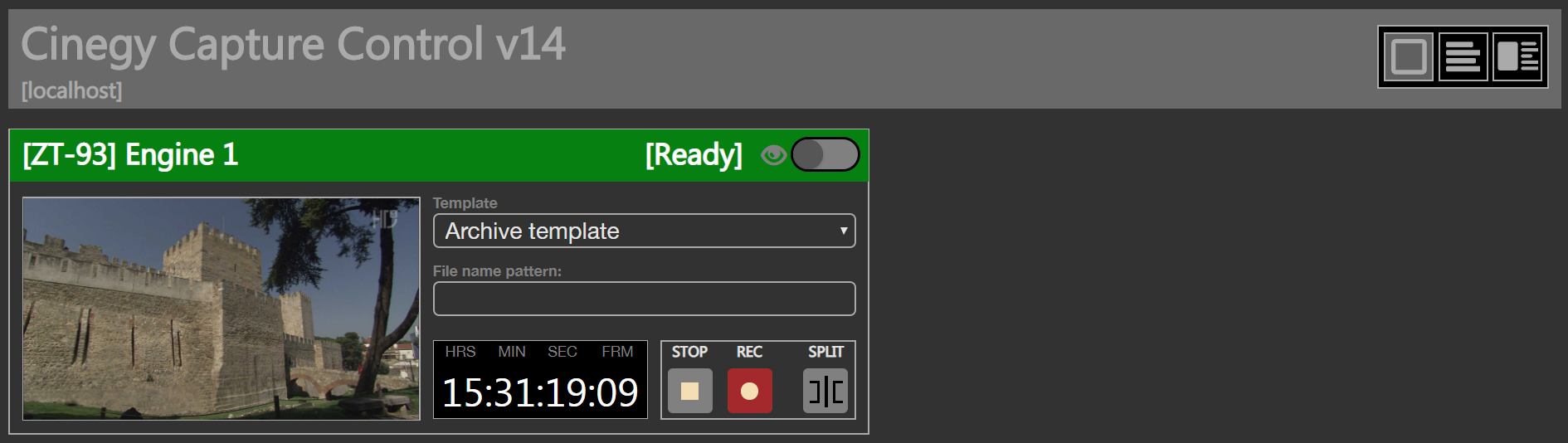

The compacted layout presents the preview window on the left. The active Engine template name and the field to define the file name pattern are displayed on the right. Capture Engine controls are located below.

Web_engine_layout1

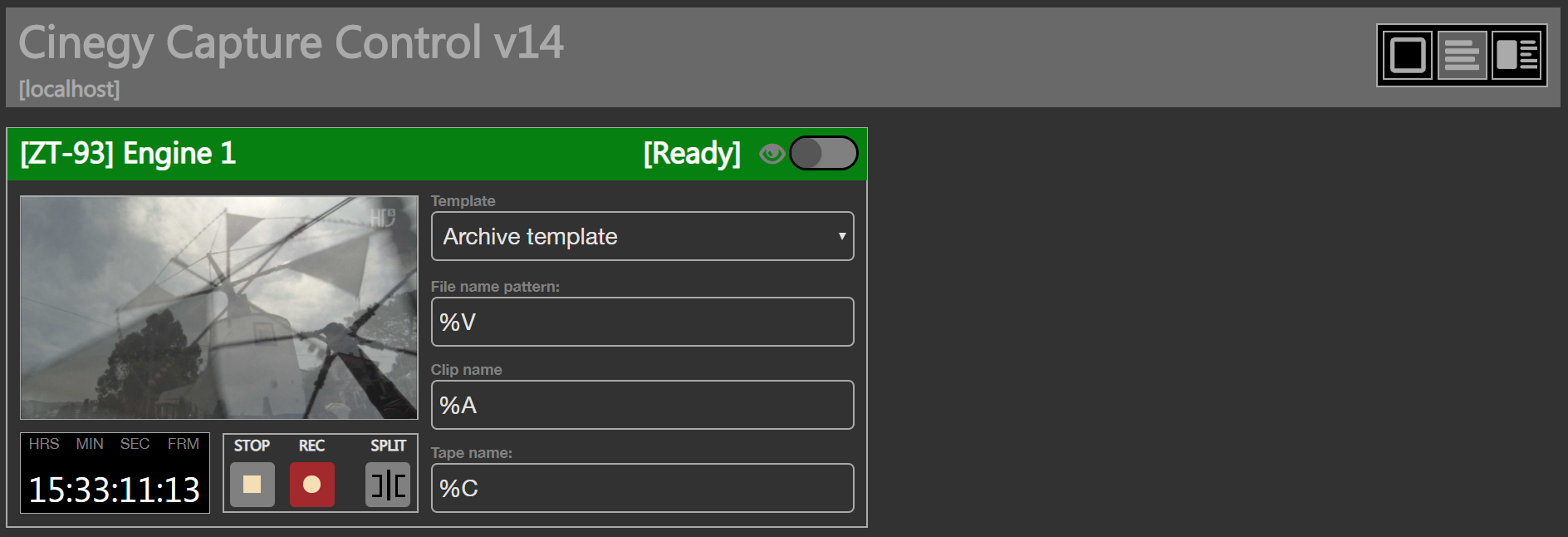

The extended layout provides the possibility to define the file name pattern, as well as the clip name and the tape name:

Web_engine_layout2
Important
Refer to the General Settings paragraph within the Cinegy Capture Control Manual for additional information on macros to be used to apply naming automation.

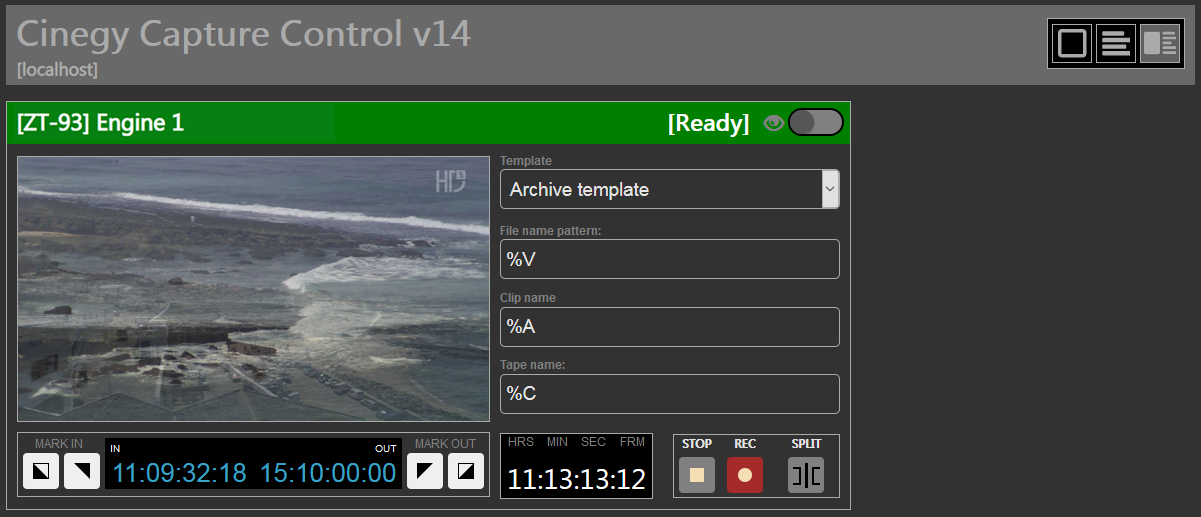

The advanced layout additionally makes it possible to use In-Out timecode editors to capture a defined segment of video:

Web_engine_layout3
Important
Refer to the Mark In and Mark Out paragraph within the Cinegy Capture Control Manual for the details on operating these controls.

Controlling Engines

Templates

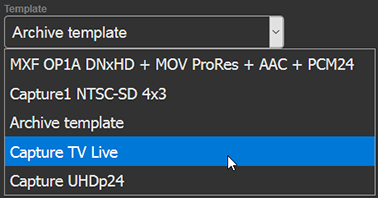

The active Engine template to be used for your recording can be chosen from the drop-down list of the available templates:

Capture_web_templates_list
Important
Refer to the Templates Panel paragraph within the Cinegy Capture Control Manual to learn about templates creation and management.

Time Control

The time monitoring window displays the current engine timecode:

Cinegy_Capture_Web_Control_time_control

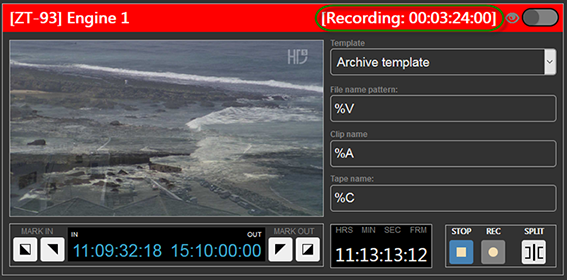

In recording mode, the total duration of the current recording is displayed in the Engine caption as follows:

Cinegy_Capture_Web_Control_time_control_recording

Capture Controls

The following controls are used for Capture Engine recording management:

Cinegy_Capture_Web_Control_Capture_Controls

REC_button_WEB

Use the "REC" button to start recording from Cinegy Capture Web Control; you can monitor this process in real time.

SPLIT_button_WEB

Press the "SPLIT" button during the capture session to force new Roll / file creation starting from the current position.

STOP_button_WEB

Press the "STOP" button to stop a running capture session.

Tip
The same actions are available from Cinegy Capture Control in parallel, i.e. recording session started from Cinegy Capture Web Control can be stopped from Cinegy Capture Control and vice versa. Refer to the Capture Controls paragraph within the Cinegy Capture Control Manual for more information on capture session control.
