Cinegy Capture PRO is a centralized multichannel, scalable and cost-effective ingest tool using many of the industry-leading components developed for and used by other Cinegy products. Cinegy Capture PRO reinvents the acquisition and transcode process, unifying the material recording and generating web proxies. Cinegy Capture PRO supports many popular industrial codecs and file formats, including ProReBs 422, XDCAM HD 422, Avid DNxHD, High-Profile H.264, MXF, MOV, etc.
The power of Cinegy Capture PRO allows users to turn any PC or server with a supported SDI video card into a network-based ingest appliance that can be used from any PC connected to the same network. The new multicam control panel enables customers to use Cinegy Capture PRO as the multicam ingest tool for the synchronous multichannel recording from live studios, in OB vans and at on-site events. Cinegy Capture PRO is a fully "video over IP" compliant and supports RTP/UDP transport streams along with the SDI-based video source.

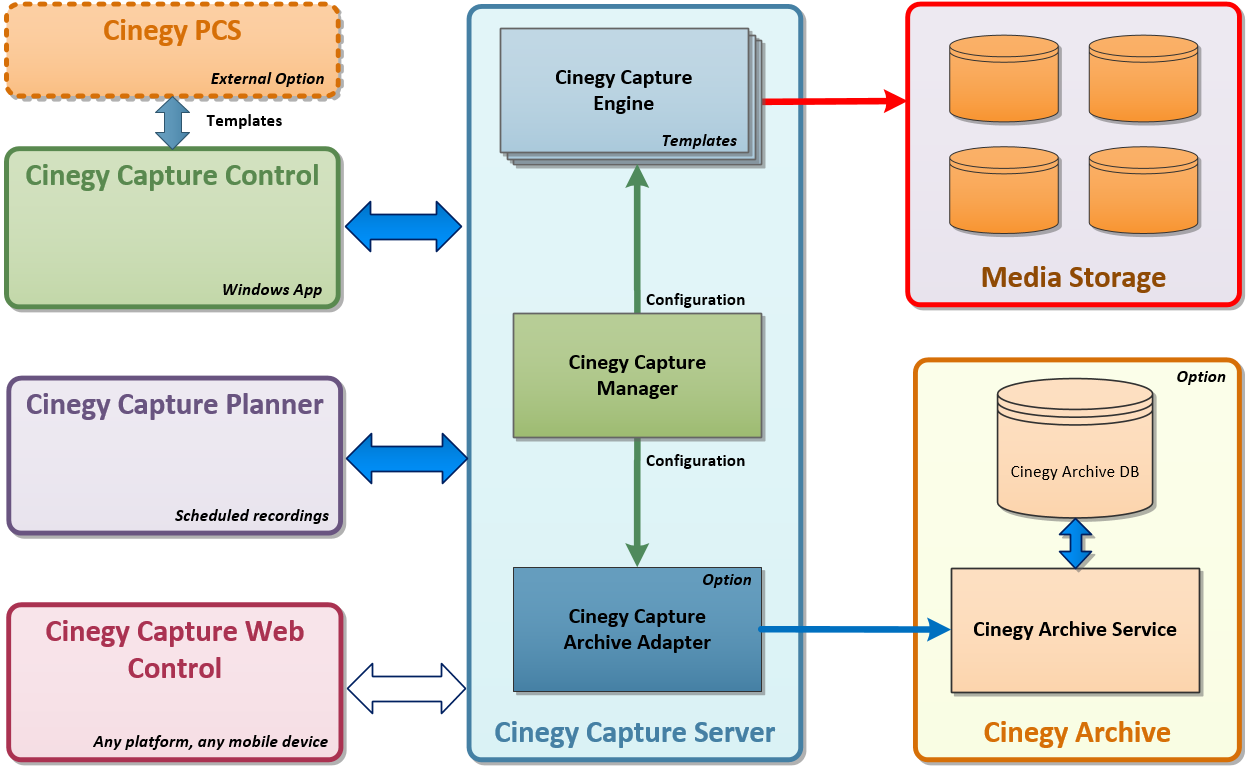

The following illustration represents the Cinegy Capture architecture:
Cinegy Capture Control can be connected to any number of Cinegy Capture Engines to work with multiple servers simultaneously. Each Capture Engine is responsible for receiving streamed data and its encoding.
Cinegy Capture Planner is responsible for automated jobs processing according to the schedule. It can work with multiple servers simultaneously.
Cinegy Capture Web Control provides remote control of capturing via a web-hosted application from a standard PC or a mobile gadget running on any operating system.
Cinegy Capture Manager covers all the stages of Engines management.
