Cinegy Convert Agent Manager dashboard is mainly an informative tool serving as a tracker of all performed tasks and the agents processing them, as well as general system technical information.

The Cinegy Convert Agent Manager interface consists of two tabs intended for monitoring each agent and each task they perform.

Agents

The "Agents" tab displays the amount of tasks available to be processed simultaneously. The number of slots depends on your Cinegy Convert licence. One slot corresponds to processing one task at a time. The free slot available for assigning a task is indicated with a corresponding sign.

The tasks are assigned to any available slot automatically. Once the task processing is complete, the slot becomes empty and is ready for assigning a new task.

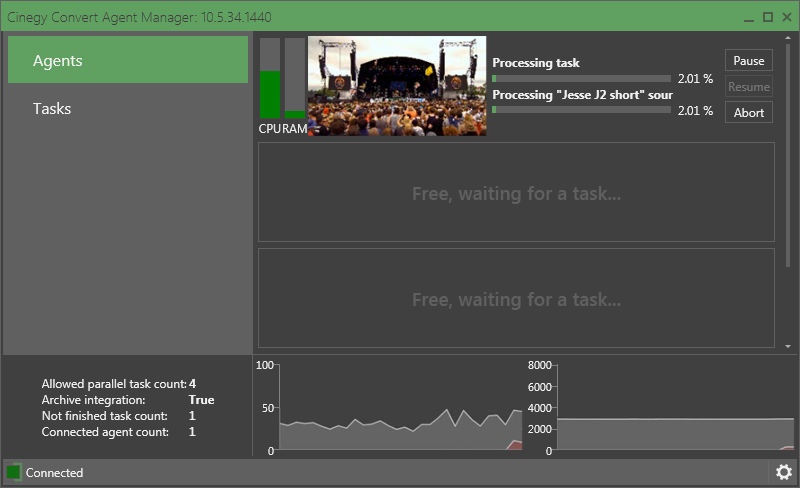

During the task processing, the additional details are displayed in the corresponding slot as follows:

Agent_Manager_free_slots

The real-time preview displays the frames of the media file which is currently being processed. The progress bar indicates the processing progress.

Agent_Manager_pause_button

Press the "Pause" button to suspend the current task processing.

Agent_Manager_resume_button

Press the "Resume" button to proceed processing the paused task.

Agent_Manager_abort_button

Press the "Abort" button to permanently terminate the task being processed.

Important
Please note that pausing, resuming, and terminating tasks takes effect in both Cinegy Convert Agent Manager and Cinegy Convert Monitor once the action performed via either of them. Refer to the Cinegy Convert Monitor Manual for details on working with Cinegy Convert Monitor.

Tasks

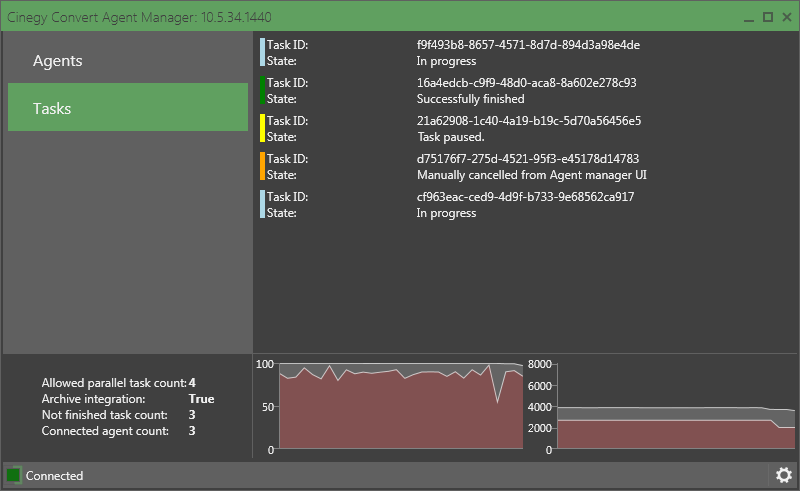

The "Tasks" tab displays the list of tasks performed by the current agent manager machine. The information on the task includes the task ID and its status:

Agent_Manager_tasks_tab

Task_status_indicator_green

The tasks, processing which has succeeded, are defined as "Successfully finished", and the color of their status indicator is green.

Task_status_indicator_blue

The currently being processed tasks are marked with the "In progress" sign and a blue status indicator.

Task_status_indicator_red

The red status indicator implies that the task processing has been terminated or failed. These tasks are marked with the corresponding message explaining the reason of termination.

Task_status_indicator_yellow

The paused tasks have a yellow status indicator. They are defined as "Task paused".

Task_status_indicator_orange

The manually cancelled tasks have an orange status indicator and the "Manually cancelled from Agent manager UI" sign.

The more detailed information on all performed tasks is available in the log files stored in the following path: C:\ProgramData\Cinegy\Cinegy Convert. The name of the last folder corresponds to your Cinegy Convert version number.

Process and Memory Usage

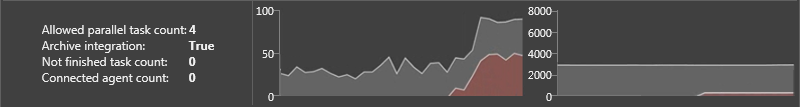

The bottom panel indicates slots details as well as the level of central processor and physical memory usage:

CPU_Memory_usage

The total number of slots depending on your license is specified in the "Allowed parallel task count" field. When Cinegy Convert is integrated with a Cinegy Archive database, the "Archive integration" field displays the "True" value. When Cinegy Convert works in standalone mode, the "False" value is displayed in this field instead. The "Not finished task count" shows the number of tasks being processed at the moment. The number of connected agents is displayed in the "Connected agent count" field.

The diagram on the left tracks the CPU usage, the one on the right displays the level of physical memory usage. On both diagrams, the gray area indicates resources taken by the system in general, while the red area shows the amount of the resources used by Cinegy Convert.
