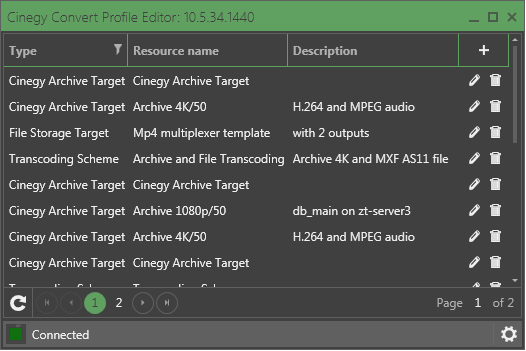

All profile resources registered in Cinegy Process Coordination Service are listed here:

Profile_Editor_main_filled

Filtering

Profile resources filtering is supported to hide unnecessary profile types from the list to make the work with their search and management more convenient. Use the filter icon icon in the "Type" table column; the following dialog box appears allowing you to choose the resources to be displayed:

Profile_Editor_Filtering_box

Profile_Editor_Close_button

Having selected the desired resource types, press this button to apply the changes and quit the dialog.

Editing and Deleting

Press Multiplexer_edit_button to edit the corresponding profile resource in the dedicated editor that appears.

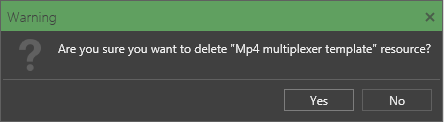

Press Delete_resource_button to delete the corresponding profile resource; you will be asked to confirm your decision to remove the resource:

Profile_Editor_deletion_confirmation

Exporting and Importing

It is possible to save the prepared profiles, templates, encoder settings, CAS configuration, etc. as a PCS resource or an XML file for further use by pressing the Profile_Editor_Edit_icon icon next to the topmost field of the configuration window and selecting the respective export command:

Profile_Editor_Export-Import

The import from PCS resource or an XML file is available in the similar way.

Column Adjustment

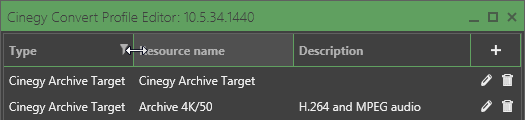

Cinegy Convert Profile Editor is represented as a table with 4 columns. You can adjust the column width by dragging the grid line between the column headers until the desired width is reached:

Profile_Editor_Column_width

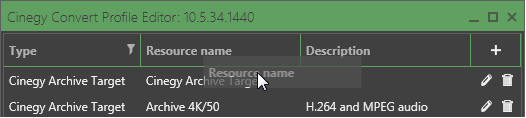

It is also possible to adjust the columns order via drag-and-drop:

Profile_Editor_Column_order

Table Navigation

In case of a large number of profile resources, their list is split into multiple pages:

Audio_schemes_list_navigation

Profile_Editor_current_page

The current page is highlighted with a green circle.

Profile_Editor_jump_to_page

To go directly to the desired page, click the corresponding page number.

Use the Audio_shemes_prev_page_button and Audio_shemes_next_page_button buttons to navigate through the previous and next pages of the list.

Use the Audio_shemes_first_page_button and Audio_shemes_last_page_button buttons to jump to the first and last pages correspondingly.
