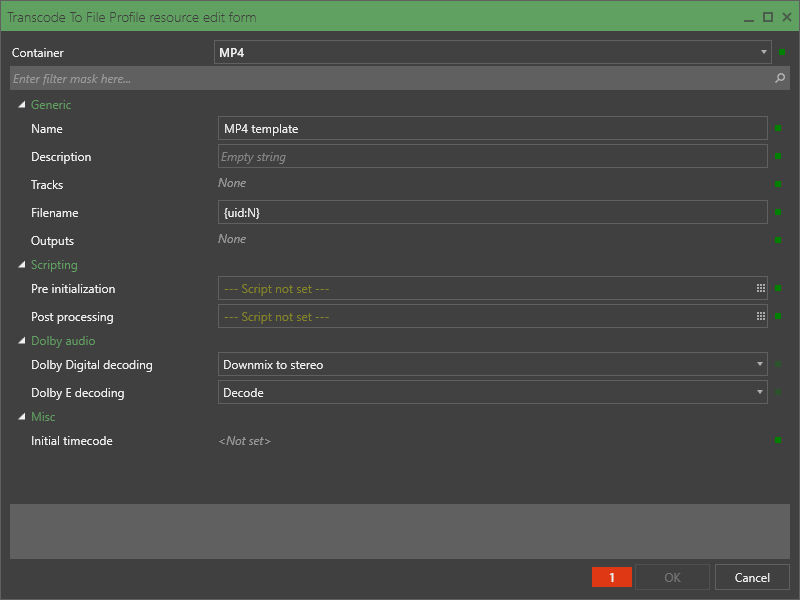

Set up the profile in the following configuration window:

Profile_Editor_File_Storage_dialog
Note

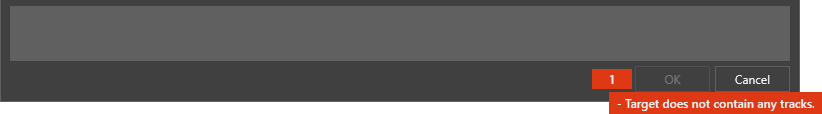

In case of errors detection, e.g. blank mandatory fields, a red indicator appears specifying their number. Hovering the mouse pointer over the indicator displays a tooltip describing the problem(s).
Problem_indicator

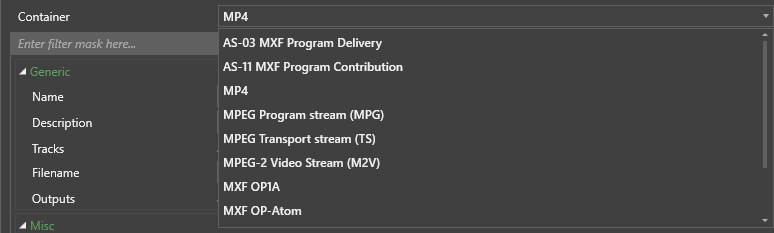

From the "Container" drop-down list, choose the desired multiplexer to be used for converting among the available ones:

Profile_Editor_Container_list

Having chosen the required one, you will need to specify its parameters below.

Generic Configuration

The "Generic" configuration group is similar for all multiplexers. The following parameters should be defined here:

  • Name – define the multiplexer name.

  • Description – enter the description of the multiplexer, if needed.

  • Tracks – specify audio and/or video tracks to be used in multiplexer.

    Important
    Refer to the Tracks Configuration paragraph for detailed description of audio and video tracks configuring.
  • Filename – define the output file name.

    Important
    To automate naming, the filename macro is supported. Refer to the Macros article for details about macro templates.
  • Outputs – add the output location(s) for the converted file by pressing the Profile_Editor_Edit_iconicon next to the "Outputs" field:

    Profile_Editor_Outputs_menu

    Use the "Add output" command to add the output location; press Profile_Editor_plus_iconto display the added output:

    Profile_Editor_Output_nonconfigured

    "Empty path" means that the output is not configured yet; press Profile_Editor_browse_iconand browse for the output location. It can be marked as "critical" meaning that the failure of this output should cause the transcoding session to abort. Set the "Is critical" option to mark the required location as critical output.

    Note
    It is possible to add multiple output locations.
Important
Cinegy Convert supports automatic execution of PowerShell scripts and Dolby® Digital / Dolby® E audio encoding and decoding technologies. Please refer to the Scripting and Dolby Audio articles for details on their configuration.

Tracks Configuration

Press the Profile_Editor_Edit_iconicon next to the "Tracks" field and use the respective command to add an audio, video, or data track:

Profile_Editor_adding_tracks_menu

This operation can be repeated to add one video, one data, and multiple audio tracks, if required. The corresponding track(s) will be added to the "Tracks" list:

Profile_Editor_Multiplexer_Tracks

Add_new_task

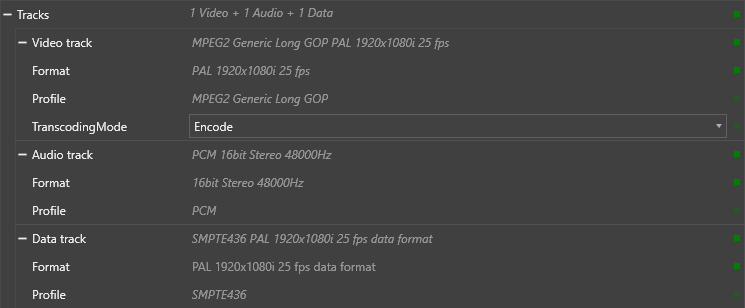

The default parameters of all tracks can be individually adjusted, if needed. Press this button to expand the tracks block:

Profile_Editor_Multiplexer_Tracks_expended

Each parameter of any track can be configured individually.

Format Configuration

Press the Profile_Editor_Edit_iconicon next to the "Format" field of the required audio or video track and choose the desired format from the list of supported ones which are shown in the table below:

Audio Track

Audio Format Presets

16 bit mono 48000 Hz

16 bit stereo 48000 Hz

24 bit mono 48000 Hz

24 bit stereo 48000 Hz

Video Track

Video Format Presets

Standard Definition

High Definition

Ultra High Definition

NTSC 720x480 16:9 29.97 fps

NTSC 1280x720 progressive 29.97 fps

NTSC 3840x2160 progressive 29.97 fps

NTSC 720x480 4:3 29.97 fps

NTSC 1280x720 progressive 59.94 fps

NTSC 3840x2160 progressive 59.94 fps

PAL 720x576 16:9 25 fps

NTSC 1920x1080 interlaced 29.97 fps

PAL 3840x2160 progressive 25 fps

PAL 720x576 4:3 25 fps

NTSC 1920x1080 progressive 29.97 fps

PAL 3840x2160 progressive 50 fps

NTSC 1920x1080 progressive 59.94 fps

PAL 1280x720 progressive 25 fps

PAL 1280x720 progressive 50 fps

PAL 1920x1080 interlaced 25 fps

PAL 1920x1080 progressive 25 fps

PAL 1920x1080 progressive 50 fps

Profile Configuration

By default, the PCM encoder is used in audio profile, and H.264 encoder in video profile. To change the encoder and/or redefine its parameters, press the Profile_Editor_Edit_iconicon next to the required track field and choose "Edit":

Profile_Editor_Multiplexer_Tracks_Edit_command

The list of supported codecs differs depending on the track type (audio or video) being configured. The following encoder types are currently supported:

Audio Encoders Video Encoders

AAC

MPEG audio

PCM

Apple Pro-Res

AVC-Intra

Avid DNxHD

DV

H.264

H.264 NVidia GPU

HEVC NVidia GPU

IMX

MPEG Generic Long GOP

MPEG XDCAM EX

MPEG XDCAM HD

MPEG XDCAM HD422

Note
Some multiplexers have the additional configuration groups with extra parameters to be specified. The list of fields depends on multiplexer type.

Transcoding Mode

Video track allows choosing transcoding mode to be used for the tasks. To do this, expand the added video track and choose the required option from the "TranscodingMode" drop-down list:

video_track_transcoding_mode
  • Direct – the file will be transcoded without re-encoding.

  • Encode – the file will be re-encoded.

Having defined all the profile parameters, press "OK"; the configured profile will be added to the list.
