Cinegy Archive Service connection is required to perform operation with the Cinegy Archive database. Once it has been configured, the connection settings can be saved for further use in all Cinegy Convert components.

By default, Cinegy Archive Service is not configured and is represented as: Not configured

Configuration

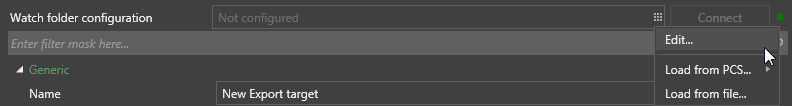

To launch the CAS Configuration resource edit form, press the Configure_watch_folder_buttonbutton in the relevant Cinegy Convert component and choose the "Edit" option:

edit_cas_connection_settings

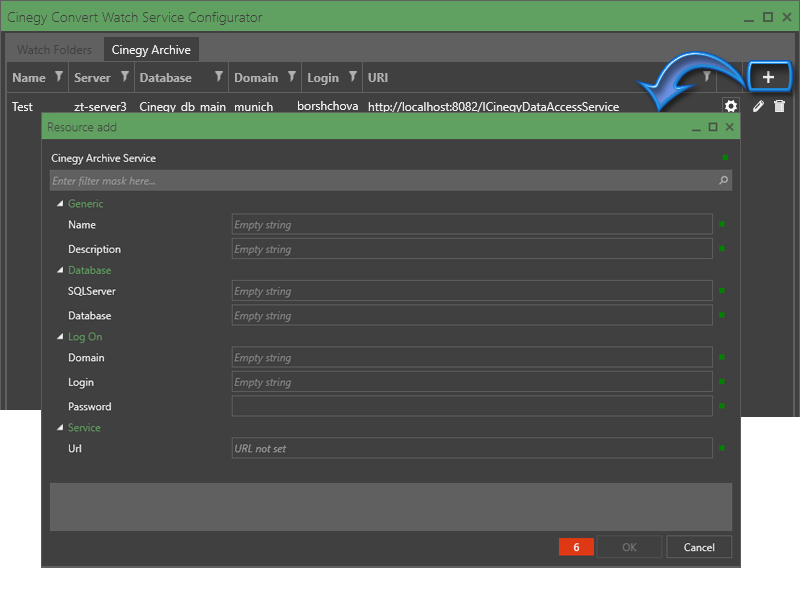

Alternatively, this dialog can be launched by pressing the Addbutton on the "Cinegy Archive" tab of Cinegy Convert Watch Service Configurator:

add_cas_configuration

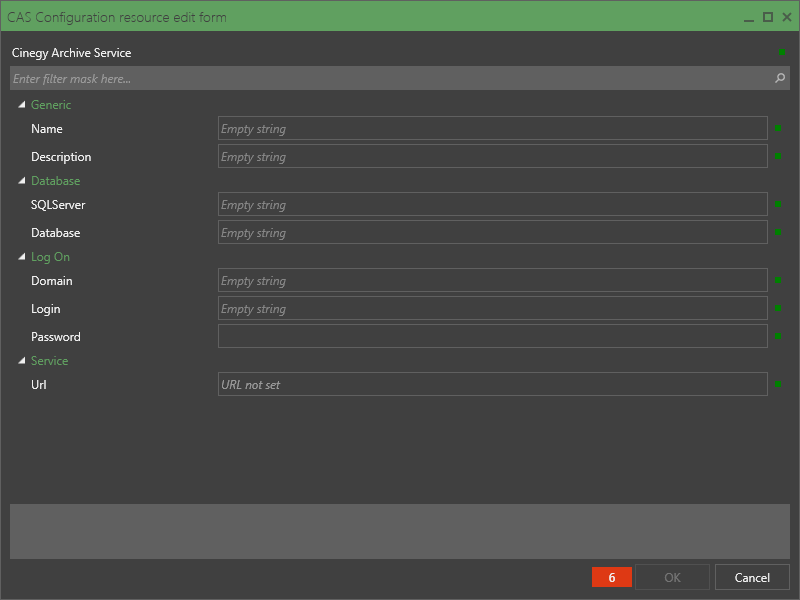

Here you will have to specify a number of parameters:

CAS_resource_empty_dialog

The iconbutton next to each field allows you to clear its value by choosing the "Clear" command:

Clear_field_value

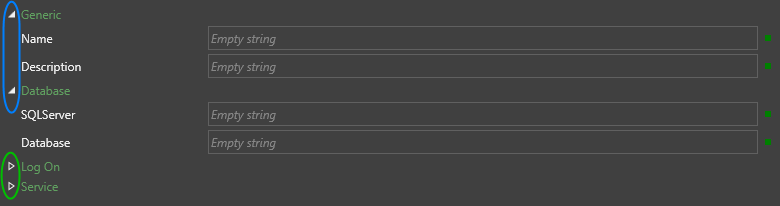

The required parameters are split into sections, which can be collapsed or expanded by pressing the arrow buttons next to the settings section names:

CAS_connection_collapse_expand_settings_section

To apply the parameters once they are configured, press "OK".

Generic

CAS_connection_generic_parameters

Specify the following parameters in this section:

  • Name – the CAS connection name to be displayed in the resources list.

  • Description – any text to be used as the resource description.

    Tip
    This parameter is handy for searching or filtering resources by the description value, for example, in Cinegy Process Coordination Service.

Database

CAS_connection_database_parameters

Define the server and database in the corresponding fields:

  • SQLServer – the SQL server name.

  • Database – the required Cinegy Archive database name.

Log On

CAS_connection_logon_parameters

Here specify the following data:

  • Domain – the name of domain you are using.

  • Login – the name under which connection to Cinegy Archive will be established.

  • Password – the logon password.

Service

Define the CAS URL address in the corresponding field of this section via the keyboard:

CAS_connection_service_parameters

Alternatively, press the Edit_iconbutton and select the "Discover" command:

CAS_discover_command

Discover_button

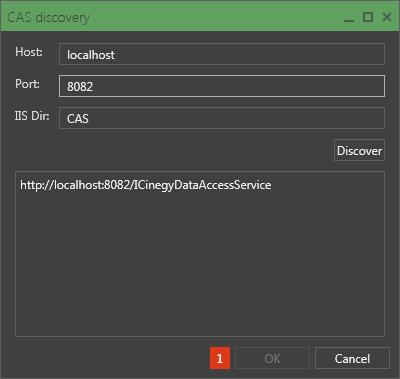

Having specified the CAS host name in the dialog that appears, press the "Discover" button. The section below will list all available Cinegy Archive Service access protocols:

CAS_Discovery_addresses

Having selected the desired one, press "OK".

Note
Please mind that the "OK" button will remain locked until one connection point is selected; the red indicator shows a tooltip explaining the reason why settings cannot be applied.

CAS Connection Import/Export

You can use the corresponding command from the iconbutton menu in the "Cinegy Archive Service" field on top if you wish to save this configuration as a PCS resource or an XML file, or import a previously saved configuration:

Resource_import_export

From now these resources can be used for any specific purposes in the relevant components of your Cinegy Convert structure, being available for all options that support export to and import from PCS.

Having specified all the parameters, press "OK".

The new CAS connection will be added to the list of resources and can be used for further work with Cinegy Archive integrated tasks.

If the previously configured CAS connection has been saved as a PCS resource, it can be selected from the "Load from PCS…​" submenu launched by pressing the Configure_watch_folder_buttonbutton:

load_from_pcs

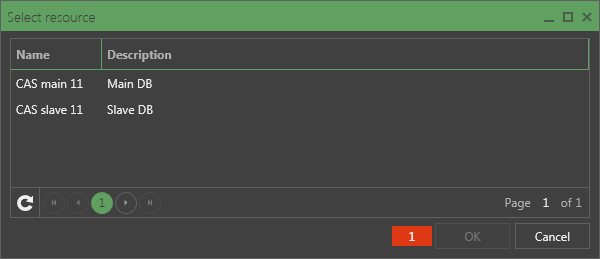

It is also possible to select the CAS connection configuration from the dedicated dialog. Select the "<Browse>" command and choose the required resource from the list of all available:

select_cas_connection_dialog
Note
Please mind that the "OK" button will remain locked until one connection resource is selected; the red indicator shows a tooltip explaining the reason why settings cannot be applied.

To load theCAS connection configuration from a previously saved file, select the "Load from file…​" command and select the file from the "Load CAS configuration" dialog that appears.

Establishing CAS Connection

The current CAS configuration is displayed in the relevant field of the Cinegy Convert component, for example:

Profile_Editor_Archive_CAS_configured

Connect_button

Press this button to establish CAS connection.

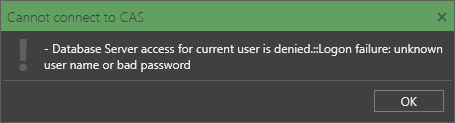

If connection cannot be established, a corresponding message appears explaining the reason of connection failure. For example:

cas_connection_failure_message

disconnect_button

When connected, press this button to terminate connection, if needed.
