All profile resources registered in Cinegy Process Coordination Service are listed here:

Profile_Editor_main_filled

Profile Management

Duplicate

Use the "Duplicate" context menu command to create a copy of the profile:

Profile_Editor_duplicate

Rename

Use the "Rename" context menu command to rename a profile:

Profile_Editor_rename

The corresponding dialog box appears:

Profile_Editor_rename

Enter a new name for your profile.

Edit

Multiplexer_edit_button

Press this button to edit the corresponding profile resource in the dedicated editor that appears.

Cinegy Convert Profile Editor will check if the modified profile is used via Cinegy Convert Watch Service. In case profile is already in use, the corresponding warning message will be displayed:

warning

An operator is able to update the watch folder settings with the modified profile, if required.

Delete

Delete_resource_button

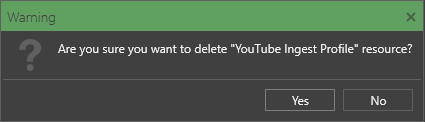

Press this button to delete the corresponding profile resource; you will be asked to confirm your decision to remove the resource:

Profile_Editor_deletion_confirmation

The same action is performed by the "Delete" context menu command:

Profile_Editor_Delete

Exporting and Importing

It is possible to save the prepared profiles, templates, encoder settings, CAS configuration, etc. as a PCS resource or an XML file for further use by pressing the Profile_Editor_Edit_icon icon next to the topmost field of the configuration window and selecting the respective export command:

Profile_Editor_Export-Import

The import from PCS resource or an XML file is available in the similar way.

Column Adjustment

Cinegy Convert Profile Editor is represented as a table with 4 columns. You can adjust the column width by dragging the grid line between the column headers until the desired width is reached:

Profile_Editor_Column_width

It is also possible to adjust the columns order via drag-and-drop:

Profile_Editor_Column_order

Table Navigation

In case of a large number of profile resources, their list is split into multiple pages:

Audio_schemes_list_navigation

Profile_Editor_current_page

The current page is highlighted with a green circle.

Profile_Editor_jump_to_page

To go directly to the desired page, click the corresponding page number.

Use the Audio_sсhemes_prev_page_button and Audio_sсhemes_next_page_button buttons to navigate through the previous and next pages of the list.

Use the Audio_sсhemes_first_page_button and Audio_sсhemes_last_page_button buttons to jump to the first and last pages correspondingly.

refresh

The "Refresh" button renews the folder content.
