You can import Cinegy objects to Avid Media Composer via drag-and-drop in two ways:

  • directly from Cinegy Archive Browser;

  • via the post folder.

Import from Cinegy Archive Browser

You can import clips, Rolls, ClipBins, and Sequences from Cinegy Archive Browser directly to an Avid Media Composer project via simple drag-and-drop. To do so, follow the steps:

  1. Open Avid Media Composer and create a new project.

  2. Open Cinegy Archive Browser and select a clip, Roll, ClipBin or Sequence you need to import to Avid Media Composer.

  3. Drag-and-drop the selected object into the Avid Media Composer project bin window.

cinegy_browser_drag-and-drop_Avid

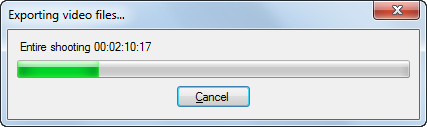

Exporting each object and inserting it to Avid is shown with the following progress bar:

cinegy_browser_export_progress

To abort the process in progress, press "Cancel".

Media for all the objects being exported are converted into MXF files and the references on the received MXFs are written into a created AAF file.

Note
Make sure that the "MXF media location" is set up correctly in the Cinegy Archive Browser options dialog; otherwise Avid Media Composer will not find the generated MXF files and you will receive "Media offline" footages.

When a Sequence is imported to Avid Media Composer, for each of its clip a corresponding master clip is created. A Sequence with all references to these master clips is created and placed into the AAF file.

The following table shows the feature mapping when a Sequence is imported to Avid Media Composer:

Feature Status Description

Video clips

Fully supported

Video clips will be transferred with no changes.

Audio clips

Fully supported

Audio clips will be transferred with no changes.

Flop

Fully supported

The corresponding flop effect will be applied in the Avid sequence.

Dissolve

Fully supported

The corresponding dissolve mix will be applied in the Avid sequence.

SMPTE mixes

Coming soon

Feature is ignored during export.

Dip to color

Coming soon

Feature is ignored during export.

Speed

Fully supported

The corresponding speed effect will be applied in the Avid sequence.

Freeze

Special

The corresponding freeze effect will be applied in the Avid sequence for video clips. Audio clips will be replaced with fillers of the corresponding duration.

Titler

Special

Media is exported without the alpha channel information (blended on the black background) or is replaced with fillers.

Note
To disable rendering of titler objects, deselect the corresponding option in the AAF + MXF Op-Atom Export Settings dialog.

Pictures

Special

Media is exported without the alpha channel information (blended on the black background) or is replaced with fillers.

Note
To disable rendering of graphic images, uncheck the corresponding option in the AAF + MXF Op-Atom Export Settings dialog.

Audio pan balance

Coming soon

Feature is ignored during export.

Video transparency key frames

Coming soon

Feature is ignored during export.

Multiclip

Coming soon

The multiclip is replaced with a filler of the corresponding duration.

Color correction

Not supported yet due to technical limitations

Feature is ignored during export.

Inverse effect

Not supported yet due to technical limitations

Feature is ignored during export.

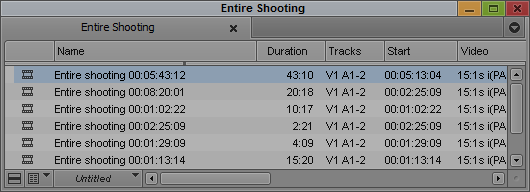

When the import is done, the items are ready for processing in Avid Media Composer:

cinegy_browser_bin_in_avid

Relinking Media Qualities in Avid

This feature allows you to work in Avid Media Composer with proxy quality files and then relink the edited material to the high resolution.

Drop Target

There is a special "drop target" window that accepts dragged-and-dropped items from Avid Media Composer Bins – AAF files. It can be launched via the "Show drop target window" command:

cinegy_browser_drop_window

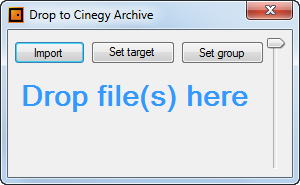

The following "Drop to Cinegy Archive" window appears:

Drop_to_Cinegy_Archive_window

The "Drop to Cinegy Archive" windows always stays on top; you can change its transparency using the slider on the right side of the window.

Set_target_button

Press the "Set target" button to launch the "Select node" dialog and define the target Cinegy Archive database location for importing media.

Set_group_button

Press the "Set group" button to specify the media group. Use the "Select Media group" drop-down list from the dialog box that appears to select the required media group.

Import_button

Press the "Import" button to launch the standard "Open" dialog and select the file(s) for import.

Alternatively, you can drag-and-drop clips or compositions from the Avid Media Composer workspace into the "Drop to Cinegy Archive" window. The other way is to select the previously created AAF file(s) and drag-and-drop them into this window.

Note
Import is impossible unless the target location is defined.
Note
Only AAF file format is supported for import into Cinegy Archive.

As soon as the files are added, the import session starts automatically. The window caption displays the import process details.

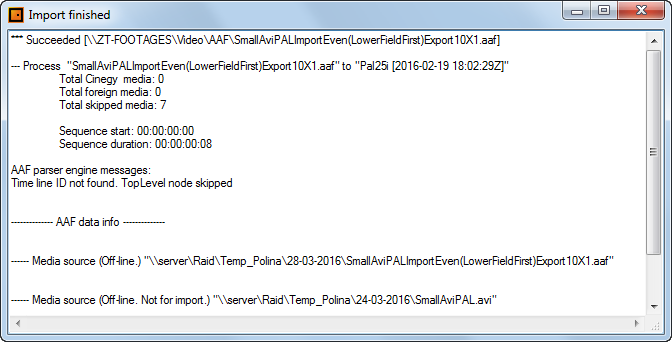

The following window informs whether the import process is finished successfully or failed and displays the detailed information about the performed operations:

Import_finished_succeeded

The logging details can be managed using the context menu commands:

Import_log_context_menu

Sample Workflow

These steps show the sample workflow for rough-editing of the proxy quality files in Avid Media Composer and then relinking them to the high resolution files:

  1. Configure Cinegy Archive Browser:

    • set "Export mode" to "AAF+MXF Op-Atom".

    • in the AAF + MXF Op-Atom Settings dialog select the proxy quality from the drop-down list (MXF Avid 15:1s) and deselect the "Do not recompress if source format can be used in Avid directly" option.

  2. Drag-and-drop the specified objects from Cinegy Archive Browser into Avid Media Composer bin.

  3. Perform the desired editing operations in Avid Media Composer using these proxy quality media.

  4. In Cinegy Archive Browser AAF + MXF Op-Atom Settings, change the media files format settings to the desired high quality.

  5. Drag-and-drop the specified objects from Cinegy Archive Browser into Avid Media Composer bin again.

  6. When the export is completed, the new MXF files will be generated according to the specified settings.

  7. Finalize your composition in Avid Media Composer using high quality media.

Avid Interplay Integration

Note
The usage of Avid Interplay integration should be requested separately.

When all the necessary Avid Interplay Integration parameters are set up, the Avid Interplay folders tree panel will appear:

cinegy_browser_interplay

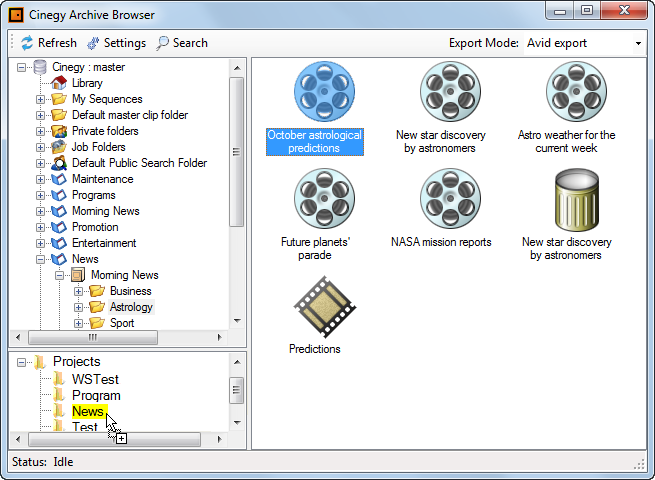

To send the object to the Avid Interplay server, select the object and drag and drop it to the desired folder in the Interplay tree:

cinegy_browser_interplay_drag

or select the "Send to Avid Interplay" command from the object’s context menu.

Note
Make sure that the "MXF media location" is set up correctly in the Cinegy Archive Browser options dialog; otherwise Avid Media Composer will not find the generated MXF files and you will receive "Media offline" messages.

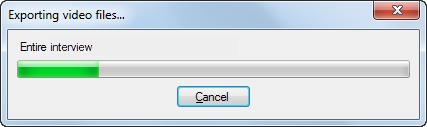

The following window will inform you of the exporting progress:

cinegy_browser_interplay_progress

The files will be exported to the specified Avid media files folder.

Working with Post Folder

Post folder is a special network shared folder which checks for the appearance of new AAF files to be imported into the Avid Media Composer projects.

Important
Refer to the AAF Files Location paragraph for details on Avid media files storage configuration.

When a new AAF file is added, a message appears above the Cinegy Archive Browser icon located in the notification area of the task bar, informing you about the new file:

cinegy_browser_new_file_message

The content of the post folder can be managed via the "Post" manager. To open it, right-click the Cinegy Archive Browser icon and choose the "Open post folder" command:

cinegy_browser_open_post_folder_command

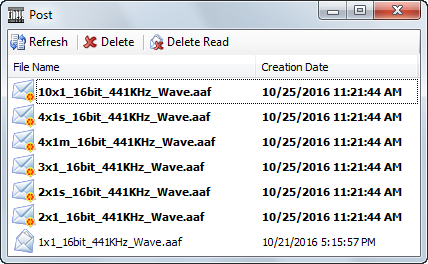

The following "Post" manager appears:

cinegy_browser_post_interface

Here the list of AAF files (so-called "posts") contained in the post folder is displayed.

cinegy_browser_unread_post

Those posts that have not been imported to Avid Media Composer are marked as unread.

cinegy_browser_read_post

The posts that have been imported to Avid Media Composer are marked as read.

To import a post to Avid Media Composer, select the required one and drag-and-drop it to an Avid Media Composer project.

cinegy_browser_post_refresh

Press the "Refresh" button to update the list of posts from the post folder storage.

cinegy_browser_post_delete

Press the "Delete" button to delete the selected post(s) from the post folder.

cinegy_browser_post_delete_read

Press the "Delete Read" button to delete all the read posts from the post folder.
