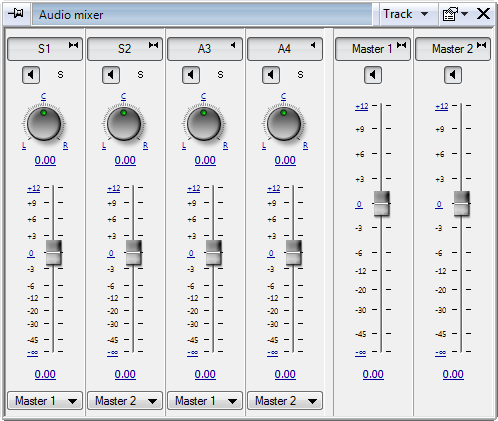

The "Audio mixer" tool provides you with the full range of audio functionality for each audio channel in use.

It allows you to control basic audio track parameters like volume and pan/balance for the selected audio effect target – clip or the whole audio track. Audio Mixer can also map the audio output from Timeline to the output audio channels.

Each mixer track corresponds to the audio track on Timeline of the currently active Sequence. It also displays the master fader for the output channel(s).

AudioMixer

Audio_mixer_track

  1. The audio track name button. Its look depends on the track type (mono, stereo or 5.1 surround).
    To activate or deactivate audio tracks that are in use, simply press the button of the corresponding track. If some tracks are grayed out, this means that they are not in use (empty) and cannot be activated or deactivated.

  2. The "Solo" button. It is used to single out the specified audio track and listen to it individually. All other tracks will be muted. Several tracks can be solo’ed.

  3. The "Mute" button. Press it to mute the sound or to turn the sound back on again for the corresponding audio channel.

  4. The content-sensitive "panner" panel.

  5. The volume fader. Drag its handle to the desired position or enter the value into the decimal display below it.

  6. The output channel selector defining the output channel to which this track will be mapped.
    Output_channel_selector

Tracks Handling

The basic operations with tracks can be done directly in Audio Mixer.

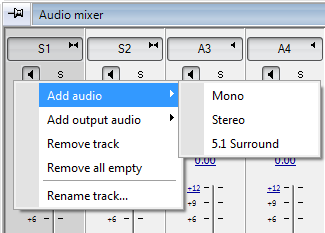

To add more audio tracks, right-click anywhere within the Audio Mixer window and select the desired audio track type from the "Add audio" submenu.

Audio_mixer_add_audio

You can add as many output audio channels as needed in a similar way using the "Add output audio" submenu.

To remove a track, select it and choose the "Remove track" context menu command. The "Remove all empty" command can be used to delete all unused empty tracks on Timeline.

The track name can be changed using the "Rename track…​" command.

Audio Mixer Modes

Audio Mixer allows you to select the audio effect target – clip or the whole audio track.

Audio_mixer_mode

The Track/Clip selector on the caption bar defines whether the effect is applied to the clip or to the whole audio track. This allows you to use Audio Mixer to adjust clip effects as well as manage audio tracks.

Panning and Balancing in Audio Mixer

At first you should specify whether you want to change the pan/balance of the clip or the whole track by selecting the corresponding Audio Mixer mode.

To pan the audio balance of the stereo track, use the adjustment knob of the respective audio track. While keeping the left mouse button pressed, move the mouse left or right; the current value is shown as a decimal below the adjustment knob. If you want to create a 100% left or right channel, simply press "L" or "R"; by pressing "C" the audio channel will be centered. It is also possible to enter the values directly to the decimal display or use the keyboard left and right arrows to change the balance values.

The result of this action can be seen on Timeline as keyframes will be set:

AudioMixer_Pan_Timeline_clip

Pan audio balance keyframes on S1 and S2 after the adjustment in Audio Mixer in clip mode

Note
The keyframes are set according to the position of the Timeline slider.

AudioMixer_Pan_Timeline_track

Pan audio balance keyframe levels on S1 and S2 after the adjustment in Audio Mixer in track mode

Adjusting Volume Levels

At first you should specify whether you want to change the volume of the clip or the whole track by selecting the corresponding Audio Mixer mode.

To adjust the volume of the audio clip, use the volume fader of the respective channel. It is also possible to enter the values directly to the decimal display beneath the volume fader or use the keyboard up and down arrows to change the volume value. Volume changes are also displayed by keyframes on the audio clip(s) or Timeline tracks.

AudioMixer_Volume_Timeline_clip

Volume keyframes on S1 and S2 after the adjustment in Audio Mixer in clip mode

Note
The keyframes are set according to the position of the Timeline slider.

AudioMixer_Volume_Timeline_track

Volume keyframe levels on S1 and S2 after the adjustment in Audio Mixer in track mode

Hardware Setup

External MIDI controllers can be connected to control Audio Mixer. Use the "Hardware setup…​" option from the Audio Mixer main menu to set up the MIDI controller.
