Schemas

Reading time ~3 minutes

Schemas are as straightforward as the profiles. The difference is that a schema is a collection of profiles; whereas a profile is a collection of Cinegy Ingest plug-in settings.

There are two types of schemas:

  • Local – can be used locally in Cinegy Desktop by the creator only;

  • Global – are available for all Cinegy Desktop clients.

Local Schemas

Creating

The procedure is very similar to that of profile creation.

  1. Create your ingest profiles.

  2. Select the "Schemas…" command from the ingestor main menu:

    SchemaMenu

    The following dialog box appears:

    Schema01

  3. Press the Add button to receive the following dialog box:

    Schema02

  4. Select the profiles from the drop-down list and select the corresponding checkboxes to define which profiles should be included in your new local schema.

  5. Enter a name for your local schema.

  6. If you wish, you can also enter a comment.

  7. Again press the Add button to save your local schema and add it to the local schema list.

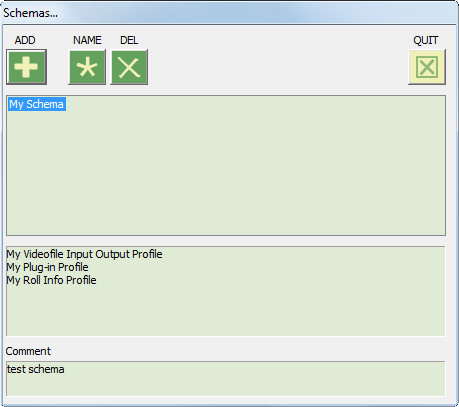

The newly created schema is added to the local schema list. You can select the local schema in the list; below you will receive all the information (profile names) as well as your comment.

Schema03

NameButton

To rename your local schema, select it in the list, press the "Name" button, and enter a new name.

DelButton

To delete a local schema select it in the list, press the "Del" button.

QuitButton

Exit the dialog by pressing the "Quit" button.

Global Schemas

Creating

To make a global schema from the local one, follow the steps below:

  1. Select the "Manage global schemas…" command from the ingestor context menu:

    GlobalSchemaMenu

    This command will open the following dialog box:

    GlobalSchemas01

  2. Select the schema from the "Local schemas" list and press the Add button. The newly created global schema will be added to the "Global schemas" list:

    Global%20Schemas02

NameButton

To rename your global schema, select it in the list, press the "Name" button, and enter a new name.

DelButton

To delete a global schema select it in the list, press the "Del" button.

QuitButton

Exit the dialog by pressing the "Quit" button.

To apply the changes made to the global schema(s), restart all the Cinegy Desktop clients using these schemas.

Using Ingest Schemas

SchemaButton

Applying a schema is very easy. Simply press the "Schema" button.

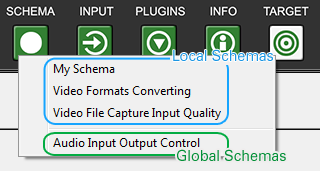

When the "Schema" button is pressed, the list of available schemas appears. The global schemas will be displayed under the horizontal line:

Schema04

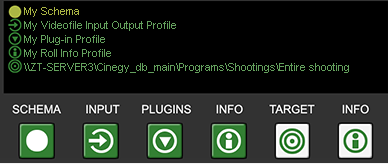

Having selected a schema, all your profiles with their respective ingest settings will be loaded into the Cinegy Ingest plug-in. The chosen schema name and profile name are then shown in the status display:

Status_Display_withProfiles
Note
Note that if you select a schema and modify any of the predefined settings, the status display will reflect these changes by saying that the profile is "Based on:" followed by the name in brackets.
