Video Analyzer Toolbar

The window caption displays the name of the currently active scope:

video-analyzer_toolbar

The commands available from the toolbar located on top are described below.

Layout

The "Layout" command allows you to choose a single scope or one of the offered combinations of scopes for video analyzing from the pull-down list.

layout_menu

The list of layouts is also available from the context menu.

Note
The purposes of the different video scopes are described below.

Video Analyzer Settings


This button allows you to set up the video analyzer settings. The configuration dialog is also available from the "Setup…" context menu command.

The video analyzer settings menu consists of two tabs: the "General" tab and the "Video Scopes" tab.

General Tab

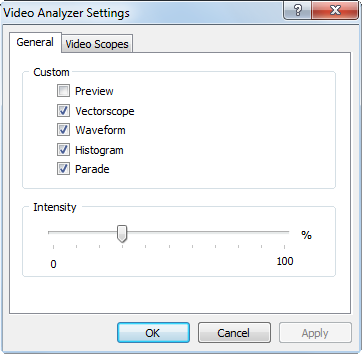

Settings_general
Custom

Here you can specify the list of video analyzer scopes for displaying when the "Custom" layout is selected.

Intensity

Here you can adjust the color intensity of the video scopes. Intensity control sets the brightness of the vectorscope, YC waveform and parade visualizations only and has no affect on the original video imaging.

As an example, the image below shows a parade scope for the same frame with two different intensity settings.

parade_10

parade_90

The parade with intensity value specified as 10% (10 of 100)

The parade with intensity value specified as 90% (90 of 100)

Video Scopes Tab

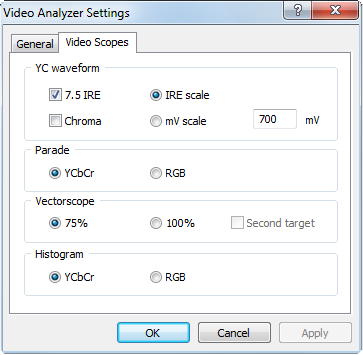

Settings_video-scopes

Here you can define the video scopes settings. The description of each scope setting is given below.

YC Waveform

Select the "7.5 IRE" option to define the black level limit at 7.5 IRE for NTSC video format.

Select the "Chroma" option to enable the chrominance visualization over the luma waveform.

Parade

Here you can define the color visualization model (YCrCb or RGB) for analyzing the input video signal via the parade video scope.

Vectorscope

Here you can set the gain level for the primary target (75% or 100%). The "Second target" checkbox only becomes available when using the 100% target mode.

Histogram

Here you can define the color visualization model (YCrCb or RGB) for analyzing the input video signal via the histogram analyzer.

Context menu

Bild_Context

Press this button or right-click on the video analyzer window to open the context menu:

main_menu

The controls available from the context menu are similar to the controls of the video analyzer settings.

Close Command


Press this button or select the "Hide" command from the pop-up menu to close the video analyzer plug-in.
