The Cinegy Archive Browser utility supports four export modes:

AAF + MXF Op-Atom Export Settings

To configure the export parameters, choose the "AAF+MXF Op-Atom" mode from the "Export Mode" drop-down list:

cinegy_browser_avid_export_mode

and press the cinegy_browser_settings_button button from the menu panel.

The following configuration dialog appears:

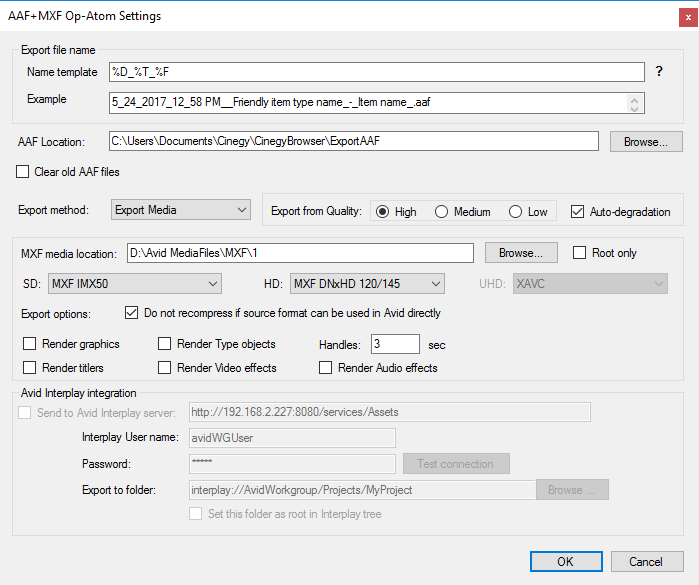

cinegy_browser_avid

Here define the AAF + MXF Op-Atom export settings as described below.

Export File Name

Enter a file name macro to automate the exported media naming. The name template macros are:

MacroMeaning

%D

The export task creation date

%T

The export task creation time

%O

The export task owner

%F

The object name and type

%N

The object name

%V

The name of the video system

The file name preview is displayed in the "Example" field.

AAF Files Location

browse_for_folder_button

Press the "Browse" button to locate the folder where the AAF files are stored:

AAF_Browse_for_folder

Select the "Clear old AAF files" checkbox to clear up the Avid media files folder from all currently existing AAF files before exporting.

Note
Please note, files other than AAF, as well as all contents of the subfolders, if any, will be preserved.

Export Method

export_method

The following export methods can be configured here:

  • Composition only – the AAF file with information about Cinegy Archive object(s) is generated without MXF media files generation and exporting.

  • Link to Media – the AAF file with information about Cinegy Archive object(s) is generated with links to media files located on Cinegy Media Storage.

  • Export Media – the MXF files are generated in the defined Avid media files location and the AAF file with links to these newly created MXF files is created.

Export from Quality

Here define the quality of source media used when exporting from the Cinegy Archive database. Set the radio button to "High" to use high quality, to "Medium" to use medium quality, or to "Low" to use low quality. Select the "Autodegradation" checkbox to enable switching to the next available lower quality.

Available Qualities

The typical available qualities are described below in this article.

High Quality

This is the full quality version of all material. Cinegy Desktop provides selected users the possibility to view the high quality material. Selected users will use Cinegy Desktop to conform a Sequence to the high quality material. Auto conforming generates new high and medium quality material, which is registered to the Cinegy file server.

Medium Quality

This is typically used for work in progress material.

Low Quality

This is an optional quality level. It can be used to generate an additional stream for compatibility with legacy systems or other needs.

Web Browsing Format

The recommended web format is MP4 with H.264 encoder for video and AAC encoder for audio. It is used for accessing Cinegy Archive via WEB interfaces

MXF Media Location

mxf_file_location

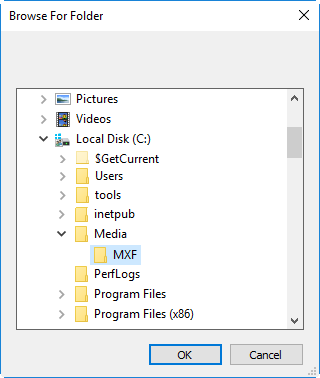

Press the "Browse" button to locate the folder where the Avid media files are stored:

cinegy_browser_browse_for_folder

The MXF files that are generated for the Cinegy Archive objects being exported will be automatically recognized by Avid Media Composer according to the links written in the imported AAF files.

Note
The folder defined as a Media Directory for Avid Media Composer should be specified in the "MXF media location" field for automatic media files recognition within Avid Media Composer.

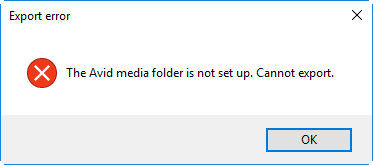

Please define the Avid media folder; otherwise export cannot be performed and the following error message appears:

cinegy_browser_configuration error

Use Only Root Folder

Use the "Root only" option to limit the Avid media files folders creation to the specified Avid media folder only.

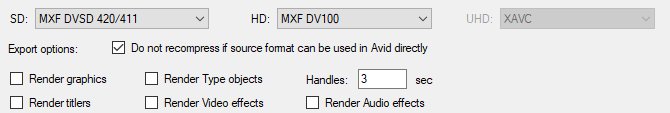

Encoders Selection

Choose the media formats separately for the files of standard and high definitions.

Note
UHD formats export functionality will be available in future releases.

Export Options

encoders_selection
  • Do not recompress if source format can be used in Avid directly – enables skipping source media recompression if media files are already of the native MXF OP-Atom format.

  • Render graphics – enables rendering of the graphics to the separate files when exporting. Leave this option deselected to disable graphics rendering. In this case, graphics will be replaced with the fillers.

  • Render titlers – enables rendering of titlers to the separate files when exporting. Leave this option deselected to disable titler rendering. In this case, titles will be replaced with the fillers.

  • Render Type objects – enables rendering of Cinegy Type templates to the separate files when exporting. Leave this option deselected to disable templates rendering. In this case, they will be replaced with the fillers.

  • Render Video effects – enables rendering video effects when exporting. Leave this option deselected to disable video effects rendering.

Note
If the "Render Video effects" option is selected, the "Do not recompress if source format can be used in Avid directly" option becomes unavailable and the effects are rendered to the defined format.
  • Render Audio effects – enables rendering audio effects when exporting. Leave this option deselected to disable audio effects rendering.

  • Handles – the export adds "handles" (if possible) of N second(s) on each boundary of the referenced material to allow clips trimming.

Avid Interplay Integration

Note
To activate Avid Interplay integration functionality, please contact your Cinegy sales representative.

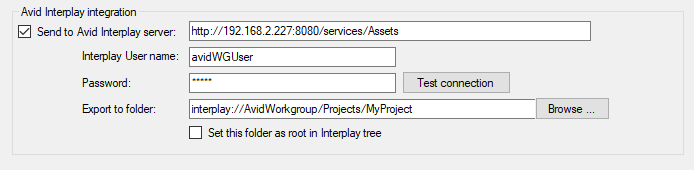

In order to send the media files to Avid Interplay server, select the "Send to Avid Interplay server" checkbox and set up the following parameters:

cinegy_browser_avid_interplay_integration
  • Avid Interplay server – specifies the path to Avid Interplay Web-services;

  • Interplay User name – specifies the user name to connect to the Avid Interplay server;

  • Password – specifies the password to connect to the Avid Interplay server;

  • Test connection – press this button to verify that the connection to the Avid Interplay server is working;

    Note
    Make sure that the "Export to folder" path is set up correctly and you have entered valid login information for a successful test.
  • Export to folder – specifies the path to the folder to store the media files. The folder can be chosen by pressing the "Browse…​" button.

  • Set this folder as root in Interplay tree – select this checkbox to set the specified export folder as a root folder in the Interplay tree.

Important
Refer to the Avid Interplay Integration paragraph to learn how to work with Avid Interplay folders.

Cinebridge AVI Export

Cinebridge AVI export mode allows user to create virtual AVI files that contain references to media files stored in the Cinegy Archive database, i.e. no actual export of video files takes place.

To create a virtual AVI file, drag-and-drop a Roll, clip, ClipBin or Sequence from the Cinegy Archive Browser window to the desired folder on a disk or network share. This process is performed on-the-fly; virtually no storage space is required and no conversion time is lost.

Important
To work with virtual AVI files, you need to have a Cinegy Cinebridge decoder installed on your PC. Refer to the Cinegy Cinebridge manual for details.

The created virtual AVI file can be played back by Windows Media Player or imported into other AVI-compatible third-party NLE applications that can render AVI files.

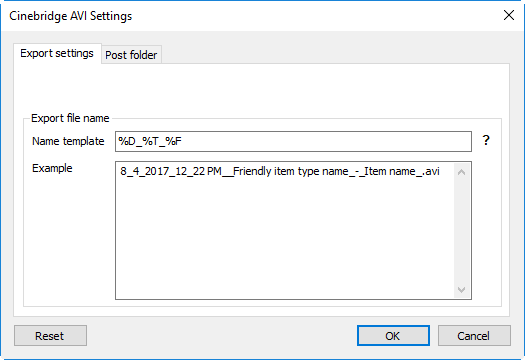

To configure the Cinebridge AVI export parameters, choose "Cinebridge AVI" from the "Export Mode" drop-down list and press the "Settings" button on the menu panel. Configure the required parameters in the dialog that appears:

Cinebridge_export_settings

Enter a file name or use macro to automate the exported media naming.

Important
Refer to the Export File Name paragraph for the list of available file name macros.

The file name preview is displayed in the "Example" field.

Press "OK" to confirm the parameters and exit the settings dialog. Pressing the "Reset" button restores the default settings.

XML for Final Cut Pro 7 Export

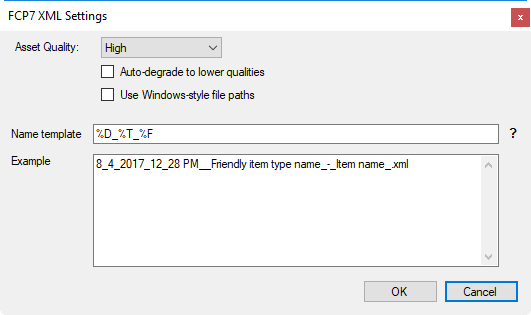

The following settings are available for Final Cut 7 Export:

cinegy_browser_final_cut
  • Asset Quality – links to the media quality defined in this field are written to the XML file;

  • Auto-degrade to lower qualities – if media quality defined in the "Asset Quality" field is not available during the XML file generation, the link to the next available media quality will be written to the XML file if this option is selected;

  • Use Windows-style file paths – defines whether the path to the clip will be written in the UNC format used by Windows applications, e.g. \\server name\share name\folder\. When this option is not selected, the path to the clip will be written in the Mac OS format, e.g. file://localhost/Volumes/cinegymediafiles.

  • Name template – specifies the file name template. Use the file name macros to automate the exported media naming. The file name preview is displayed in the "Example" field.

Important
Refer to the Export File Name paragraph for the list of available file name macros.

Cinegy Air MCRItem Export

To configure the Cinegy Air MCRItem export parameters, choose "Cinegy Air MCRItem" from the "Export Mode" drop-down list and press the "Settings" button on the menu panel.

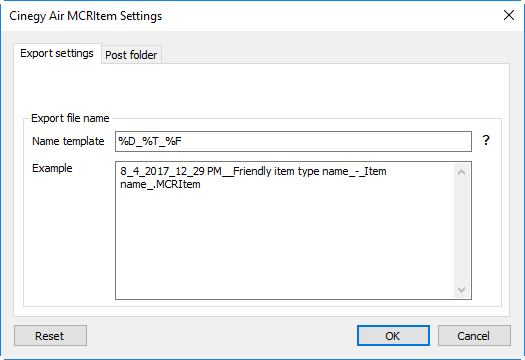

Configure the required parameters on the "Export settings" tab:

Air_MCRItem_Export_settings

Enter a file name or use macro to automate the exported media naming.

Important
Refer to the Export File Name paragraph for the list of available file name macros.

The "Example" field displays the file name preview.

Air_MCRItem_post_folder_settings

Press "OK" to confirm the parameters and exit the settings dialog. Pressing the "Reset" button restores the default settings.
