The Cinegy Archive Browser utility provides access to Cinegy Archive allowing user to navigate efficiently through the Cinegy Archive databases, search for specific nodes and select Cinegy objects such as clips, Rolls, ClipBins in order to drag-and-drop them into Avid Media Composer projects or create virtual AVI files.

Cinegy Archive Browser also traces the post folder – the network shared folder intended to collect the AAF files generated by different sources (for example Avid job folders).

Cinegy Archive Browser Interface

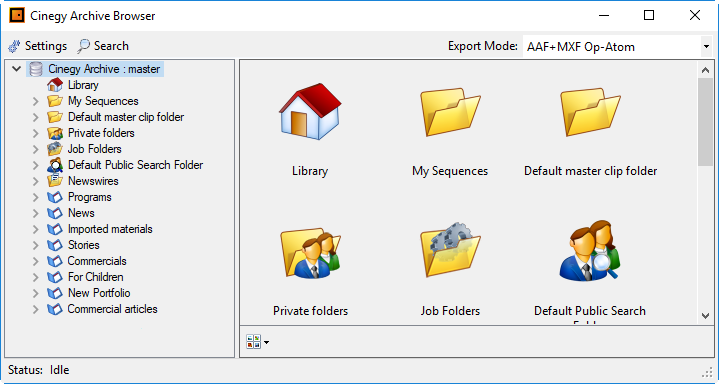

To start the Cinegy Archive Browser utility, click its shortcut on the desktop or run it from All Programs > Cinegy > Cinegy Archive Browser. The appearance of Cinegy Archive Browser resembles the Microsoft File Explorer interface with the search functionality available:

cinegy_browser_interface

The content of the database(s) is presented in a tree-like structure in the left hand panel of the window.

Important
Refer to the Cinegy Configurator article for more details about the database configuration.

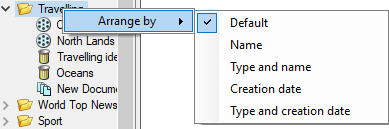

Each container can be expanded or collapsed by pressing the expand_button and collapse_button buttons correspondingly. The content of any expanded folder can be sorted by name, type and name, creation date or type and creation date by selecting the corresponding option from the "Arrange by" context menu command:

Archive_Browser_tree_arrange_by
Note
The collapsed folders content cannot be sorted.

Node Explorer

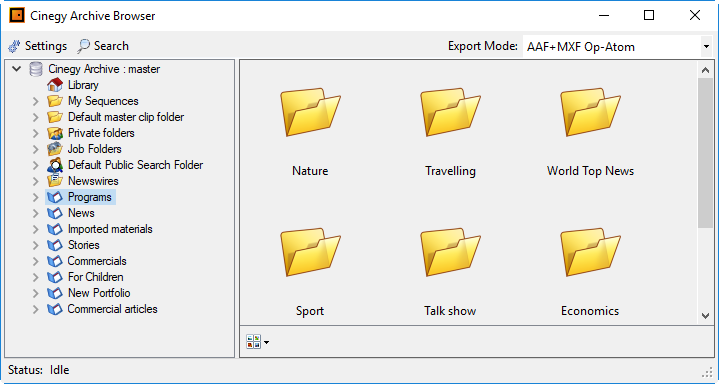

On the right hand panel the content of each folder or bin selected in the database tree is displayed:

cinegy_browser_node_explorer

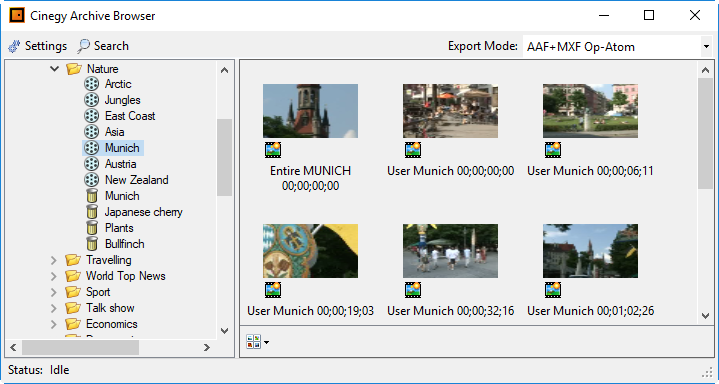

As soon as you click on a ClipBin or Roll, all clips with their corresponding thumbnails and detailed information will be displayed in this panel:

cinegy_browser_node_explorer_table

icon_waveform

The audio-only clips are indicated with the waveform icon.

icon_media_offline

The media offline clips are indicated with the corresponding icon.

icon_none

The documents with the unavailable origins are indicated with the red crossed circle icon.

View

There are a number of view options to display the content of the folder or container (Roll, ClipBin, DocumentBin, etc.). To change view, click the "Change your view" icon and select the corresponding option:

Browser_change_view
Note
The "Change your view" icon will look different depending on the view you have chosen.

You can use the slider to manually change the thumbnails scale between medium and extra large icon size.

Searching in the Cinegy Archive database

Important
For detailed information on performing search operations refer to the Search section.

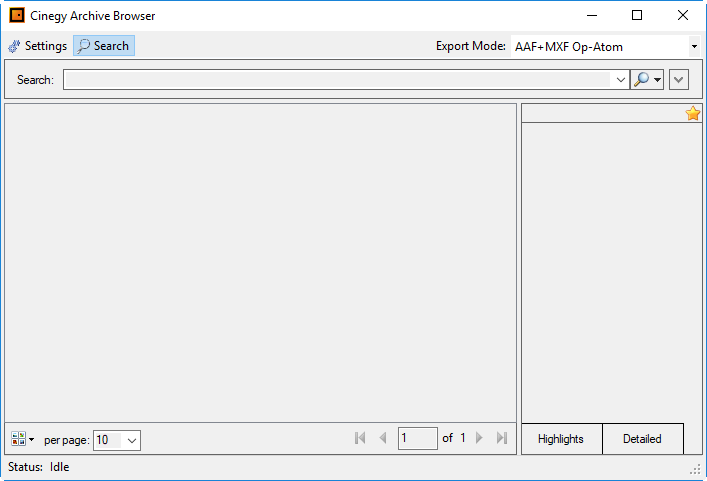

To perform search operations in the Cinegy Archive database and view the search results, click the "Search" button on the menu panel. The "Search" window will be open:

cinegy_browser_search_result

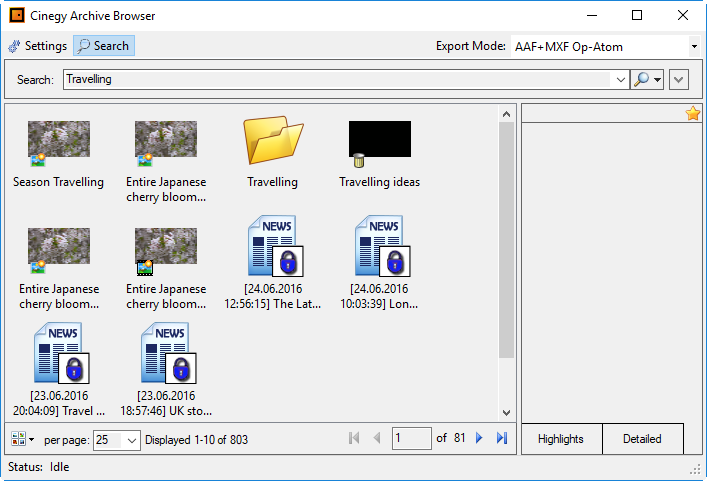

All the nodes found according to the search request will be listed here with their thumbnails and metadata.

cinegy_browser_result

Closing Cinegy Archive Browser

Having finished your work with Cinegy Archive Browser, right-click the Cinegy Archive Browser icon located in the notification area of the task bar and choose the "Exit" command:

cinegy_browser_exit

Alternatively, you can close the Cinegy Archive Browser by pressing the cinegy_browser_close_button button in the main window.
