In the "AAF+MXF Op-Atom" mode Cinegy Archive Browser generates AAF and MXF files which can be used in Avid Media Composer, Adobe Premiere, or any other NLE that supports such files. The MXF files are generated according to the settings in the configured folder. Only selected by In and Out points from the original media are transferred. The AAF files contain information about clips, effects, additional metadata and links to generated MXF files.

Note
Refer to the AAF + MXF Op-Atom Export Settings article of the Cinegy Desktop Manual for details on export settings.

The Cinegy Archive objects (e.g. clips, Rolls, ClipBins or Sequences) can be drag-and-dropped from Cinegy Archive Browser directly into the NLE workspace. This is convenient if both Cinegy Archive Browser and NLE are installed on Windows OS.

In case the NLE works on Mac OS, you can create the AAF and MXF files by drag-and-dropping objects from Cinegy Archive Browser into any folder on Windows OS and then copy them to Mac OS or access them via network, or by using Cinegy Workspace WEB client.

Export from Cinegy Archive to Avid Media Composer or Adobe Premiere

The example below shows the workflow in which media clips are sent from Cinegy Archive to Avid Media Composer.

Note
The same procedure works for importing files into Adobe Premiere.

To set up this workflow, follow the steps:

  1. Define the export settings.

    To configure the export parameters, choose the "AAF+MXF Op-Atom" mode from the "Export Mode" drop-down list:

    Archive_Browser_Avid_mode

    and press the cinegy_browser_settings_button button from the menu panel.
    The following configuration "AAF+MXF Op-Atom Settings" window appears:

    cinegy_browser_avid_settings
    Note
    Refer to the AAF + MXF Op-Atom Export Settings paragraph of the Cinegy Desktop Manual for more details on the Avid export settings.
  2. Open Avid Media Composer and create a new project.

  3. In Cinegy Archive Browser select a clip, Roll, ClipBin or Sequence you need to import to Avid.

  4. Drag-and-drop the selected object into the Avid Media Composer project bin window:

    cinegy_browser_drag-and-drop_to_Avid

    The following progress bar is shown during the exporting process:

    cinegy_browser_export_progress_bar

    To abort the process in progress, press "Cancel".

    During the export, media is wrapped and saved into MXF files (MXF OP-Atom) and the project data such as arrangement of source clips, metadata and effects information is written to AAF files. The files are written to the locations defined in the "AAF+MXF Op-Atom Settings" dialog.

Note
The same procedure works for importing files into Adobe Premiere.

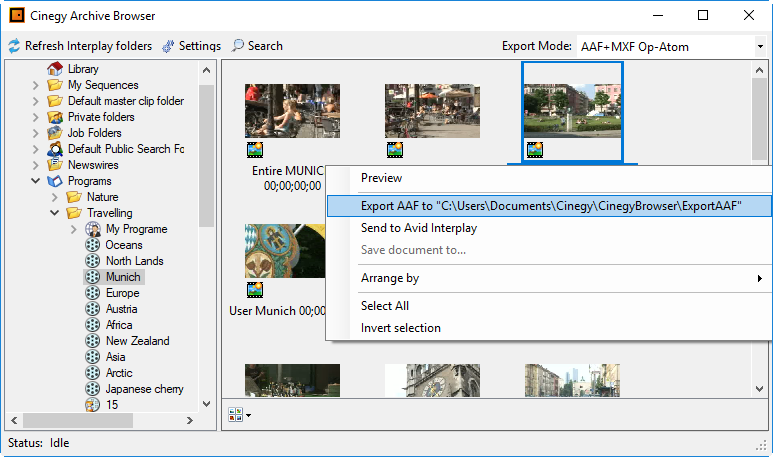

Alternatively, you can import the previously created AAF files using the "Import" command from the Avid Media Composer or Adobe Premiere main menu. To do so, right-click the selected Cinegy Archive object and choose the "Export AAF to …​" command from context menu:

Export AAF to

Launch the Avid Media Composer, right-click the media Bin window and select the "Import Media" command from the "Input" submenu:

import AAF

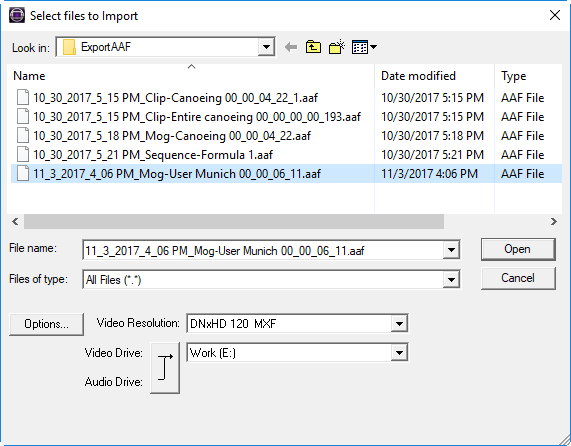

Select the imported AAF file from the folder, previously indicated in the "AAF Location" field of the "AAF+MXF Op-Atom Settings" window:

import AAF

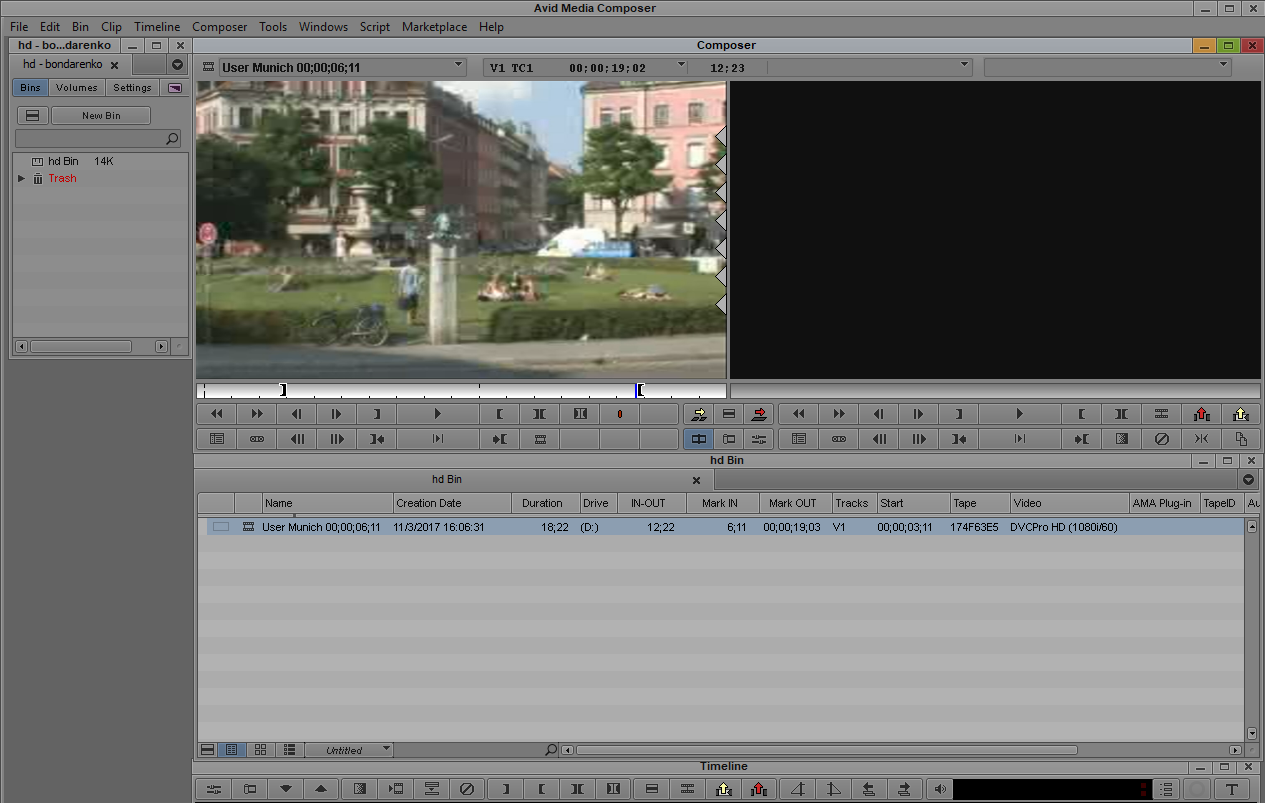

Once selected, the exported clip will be added to the Avid Media Composer Bin:

clip in Avid
