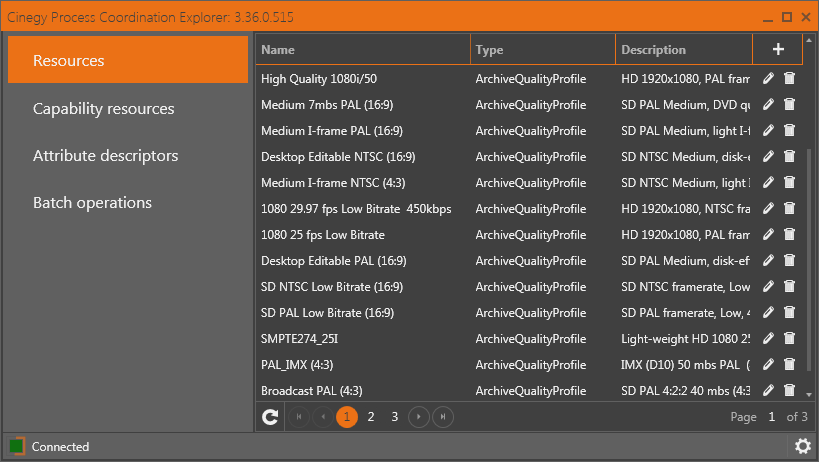

All the existing profiles are listed in tabular form on the "Resources" tab:

PCS_Explorer_resources_list

Navigation through pages buttons and the total pages number are available on the bottom bar.

current_page

The current page is highlighted with an orange circle.

jump_to_page

To go directly to the desired page, click the corresponding page number.

first previous next last

Use these buttons to jump to the first, previous, next, or last page correspondingly.

Press Delete_resource_buttonacross a resource to delete it, or Edit_resource_buttonto edit it.

Caution
Cinegy Process Coordination Explorer provides only generic resource editing capabilities. Please use dedicated tools for creating/editing profile content.

Importing Resources

Important
You can use sample profiles installed with Cinegy Convert or create your own profiles via the Cinegy Convert Profile Editor tool.

Press the add_resource_buttonbutton to add a resource. The following "Resource edit" dialog appears:

Resource_edit_dialog

Import_resource_button

An existing previously created profile can be imported to the Cinegy Process Coordination Explorer resources list by pressing the "Import" button and choosing the desired *.crtb file.

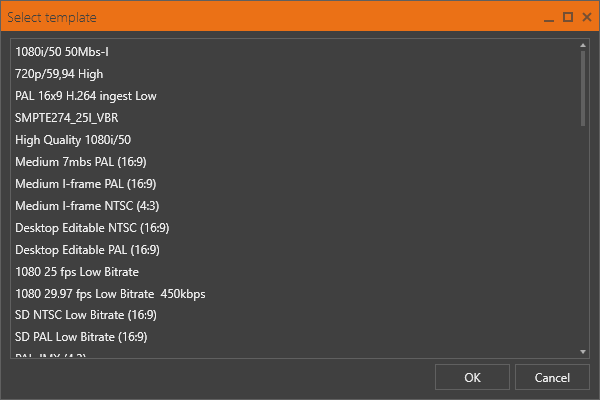

Having selected a profile, choose the profile template from the "Select template" dialog box that appears and press "OK":

Import_resource_select_template

All the profile data is loaded into the "Resource edit" dialog.

Resource_edit_imported

Press "OK". The imported profile will be added to the resources list.
