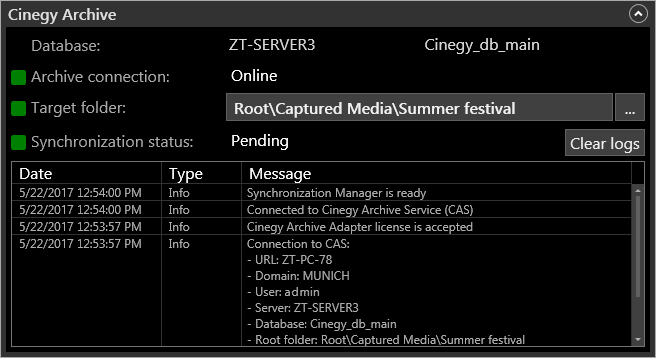

This panel displays the main Cinegy Archive connection information:

  • Database – the currently connected SQL server and Cinegy Archive database.

  • Archive connection – the Cinegy Archive connection status.

  • Target folder – the target folder path within your Cinegy Archive database in which the target Roll(s) will be created. Press the "…​" button and browse for the required folder in the explorer tree:

Cinegy Archive panel controls are disabled in Capture SOLO Edition mode.
  • Synchronization status – the status of synchronization with Cinegy Archive Adapter. The status can be "Unknown", "Pending", "Processing", "Failed".

    The synchronization indicator is green when the service is online, but it blinks with red color in case of connection loss.

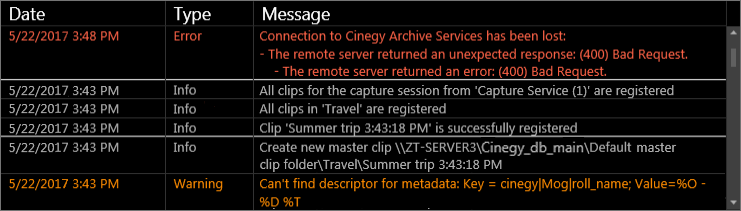

At the bottom of the Cinegy Archive panel you will find a table displaying the information regarding connection to Cinegy Archive Service and other log information:


The warning and error logs are displayed in orange and red respectively, providing details on detected problems.
