Engines Coloring

The current Engine status is indicated with color buttons. The coloring indication for Engine thumbnails on the Engines panel is as follows:

indicator_green

When the Engine is connected and running, it is marked with a green button.

indicator_red

When the Engine is offline (the specified Cinegy Capture Service has not been started), it is marked with a red button.

indicator_gray

When the Engine is not configured (via the Cinegy Capture Manager), it is marked with a gray button.

indicator_gray / indicator_red

A red blinking button warns the operator when the Engine status is "Failed".

indicator_blue

When the Engine is recording, it is marked with a blue button and the Engine window is highlighted with red color:

Engine_capturing

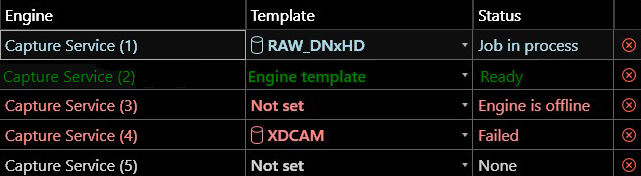

The corresponding Engine coloring is also applied on the Gang Control Panel according to its current status:

Engines_gang_colored

Capture Status Color Indication

The status fields on the Capture Panel support the following color coding of the process state:

Color Engine Status Job Status Template Validation Status Engine License Status

indicator_green

The Engine is connected and running.

The Job is completed and ready for new session.

The Engine template is valid.

The license is available.

indicator_red

The Engine is offline (the specified Cinegy Capture Service has not been started).

The Job processing is failed.

— 

The license is not detected (No License).

indicator_gray

No Engine is detected.

No Job is created.

indicator_red / indicator_gray

Blinking when the Engine status is "Failed" (the specified Cinegy Capture Service has not been properly configured).

— 

Blinking when the Engine template is invalid.

Blinking when the license has expired or USB hardware dongle with the corresponding license is missing.

indicator_yellow

Pending the Engine response.

Pending the Job response /Recording session is closing.

— 

indicator_blue

The Engine is being recording.

The Job processing is in progress.

— 

—
