To add an effect to the currently inserted clip, select the desired effect from the effects list in the context "Effects" menu:

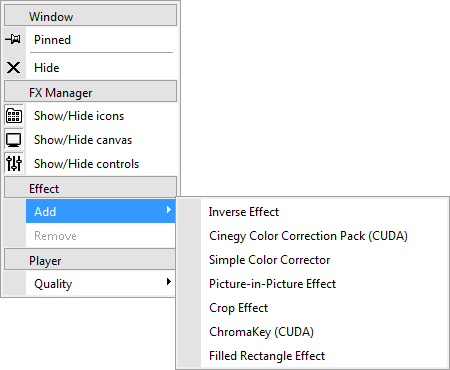

FX_manager_effects menu
Note
The "Add" command is disabled if FX Manager is deactivated. Press the Active button to enable the FX Manager interface elements so you can add the effects.

The rendering of effects can be done by the central processing unit (CPU) and graphic processing unit (GPU). Depending on which of them is in use, some of the effects are unavailable or available partially. The following signs, which appear on the control panel when the clip is activated for editing, inform which processing unit is being in use.

gpu_enabled

This sign indicates that the GPU is being used for rendering effects and the Compute Unified Device Architecture (CUDA) is enabled; all the effects are fully available.

gpu_disabled

This sign indicates that the GPU is being used for rendering effects and the Compute Unified Device Architecture (CUDA) is disabled or not supported; the effects that require the GPU are available partially.

If the CPU is used for rendering effects, all the changes and calculations are performed according to the CPU abilities.

Note
Due to the Microsoft Windows OS limitations for services, when using Cinegy Convert Legacy for processing Sequences with CUDA effects applied, Cinegy Convert Legacy Server should be launched in application mode.

Inverse Effect

The inverse effect inverts the color information of the clip.

FX_manager_inverse_icon

When you add "Inverse Effect", the following icon appears on the effects panel. Click this icon to apply the inverse effect to the currently inserted clip:

Before effect

After effect

fx_manager_inverse_before

fx_manager_inverse_after

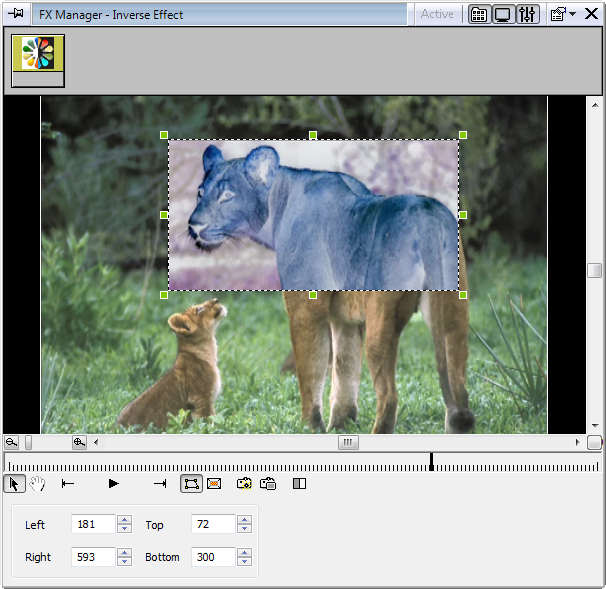

You can apply the inverse effect individually to a defined area of the video frame, using the controls located on the control panel:

fx_manager_inversed_area

To adjust the segment for applying this effect, define the "Left", "Right", "Top" and "Bottom" parameters by pressing the FX_manager_up_scrollor FX_manager_down_scrollbutton.

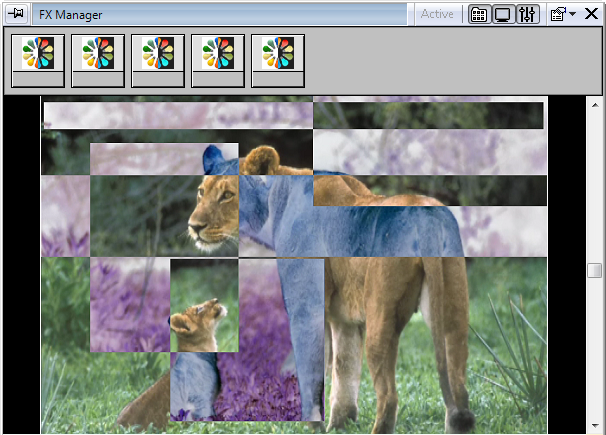

The inverse effect can be applied to different video frame areas multiple times:

fx_manager_inverse_multiple

Cinegy Color Correction Pack

The Cinegy Color Correction Pack effect provides the advanced tools for adjusting and enhancing the color of the clip.

Cinegy_color_correction_pack_sign

When you add "Cinegy Color Correction Pack", the following icon appears on the effects panel. Click this icon to adjust the color characteristics of the loaded clip.

The pack provides tools for setting color balance, matching colors, adjusting color characteristics, and replacing colors.

Color Balance

This group of values is used to reduce or strengthen the color intensity within the ranges of colors with the primary red, green, and blue.

Color_correction_pack_color_balance

There are 3 scales on top: red to cyan, green to magenta, and blue to yellow. If you click the mouse on the values and drag to the right, the colors get closer to red, green, and blue; if you drag to the left, the colors become closer to cyan, magenta, and yellow correspondingly. According to the scale of black to white on the left the values of the upper cells are used for lights, the middle cells are used for midtones, and the bottom cells – for shadows of the image. To set color balance, you also can double-click the cell and enter the value via the keyboard. Alternatively, use the arrow up to add and arrow down to subtract the values (pressing the button once equals one point). Hit Enter to save the changed value and exit the keyboard control mode.

Min. value is -100.0; max. value is 100.0.

Select the "Preserve lightness" checkbox to save the original lightness of the image.

Matcher

This tool is used for replacing colors of the video clip with different ones and is useful for setting lights and shadows of the image.

matcher_default

The cells from the "Source" column contain colors to be replaced; the ones from the "Target" column define the colors to be used instead. The gray scale indicates that the top cells match the tones for lights, the middle cells match the midtones, and the bottom cells are used to correct shadows.

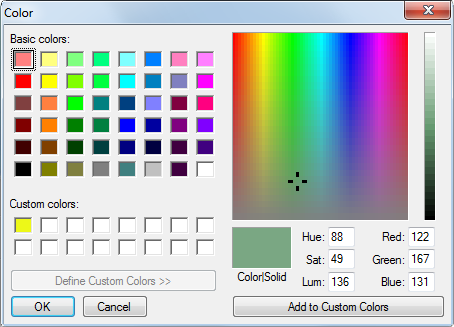

There are two ways to choose colors for matching. Click on the cell with color and select the desired color in the standard "Color" window that appears:

color_balance_choose_color

You also can use the color picker tool. Press the "Dropper" button and when the mouse cursor turns into a dropper, you can click any color on the monitor screen to pick it for matching. The cursor will change back into regular when you pick a color.

Color_correction_pack_matcher

Select the "Preserve lightness" checkbox if you need to maintain original lightness of the image.

Adjust Color

It is possible to adjust contrast, brightness, gamma, hue, and saturation of the image.

The values in column "Master" indicate the full color signal and adjust color for the whole image. Enter the values via the keyboard or use the mouse to change them – drag to the right to make the values higher or drag to the left to reduce the values:

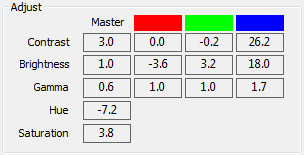

Color_correction_pack_adjust

You can also adjust contrast, brightness, and gamma for RGB components separately in the cells of the corresponding columns.

  • Contrast – defines the difference in brightness between the light and dark areas;

  • Brightness – adjusts the brightness of the image by shifting the luminance value of every pixel by the value set in this control;

  • Gamma – corrects luminance and optimizes perceptual performance of a limited number of bits in each RGB component or in the whole image; the default value of 1.0 represents no change to the image;

  • Hue – shifts the color of all the pixels in the clip on the HSB/HSV color wheel;

  • Saturation – specifies the intensity of the color; the 0.0 value represents no change to the image.

Min. value for contrast, brightness and saturation is -100.0, max. is 100.0; the range of values for gamma is from 0.1 to 3.0; the value of hue is adjustable from -180.0 to 180.0.

Recolor

In this section you can replace colors of the clip by adding tint and setting the white color balance.

Tint

Click the cell or use the color picker tool to choose the tint color. To define the amount of tint double click the cell and enter the value or simply drag the mouse. By default this value equals 0.0 which means no tint is applied; maximum value is 100.0.

Color_correction_pack_recolor

White Balance

If the white balance of the image needs to be adjusted you can define the color that needs to be rendered as white in the "White balance" field by using color picker or a standard dialog for choosing color. The color you choose becomes white and the other colors are adjusted to correct the whole image.

Select the "Broadcast colors" checkbox to display the red, green, and blue colors within the range of values from 16 to 235.

To mix the color changes with the original colors, enter the relevant degree of mixing in the corresponding field or drag the mouse pointer:

color_correction_pack_mix_with_original

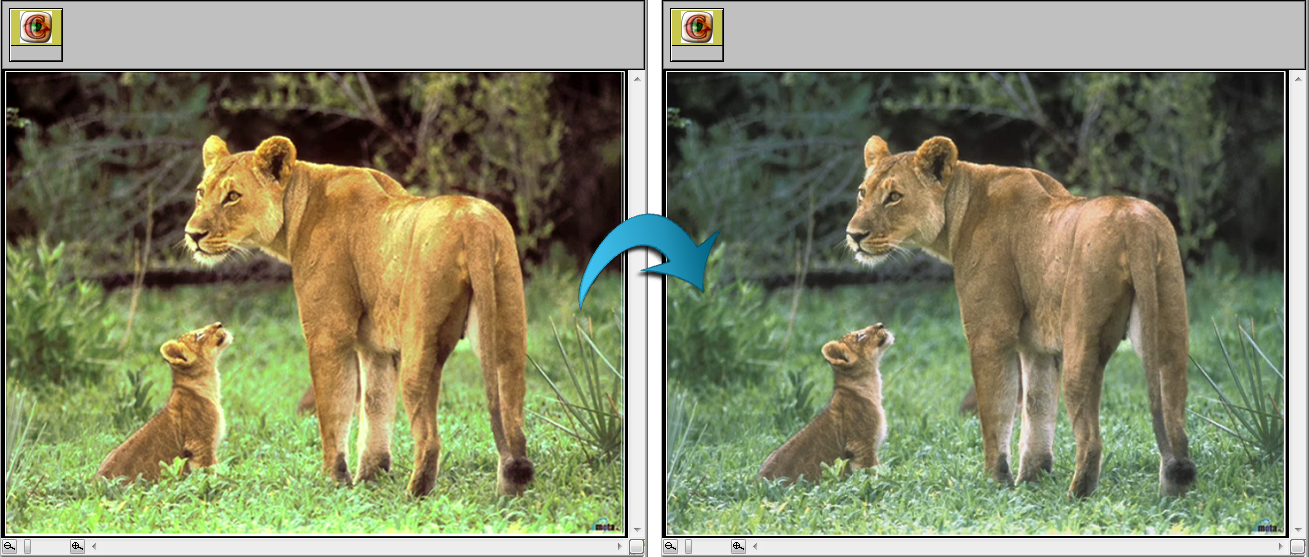

The illustration of color correction using Cinegy Color Correction Pack is given below:

Color_correction_pack_applied

To undo a previous action, press Ctrl+Z.

reset_button

To reset the changes to their default values, press the "Reset" button.

To remove the effect, select it and press the "Delete" key or choose the "Remove" command from the context menu.

Blur Filter

The Blur Filter effect provides the means to blur an image

Blur_effect_icon

When you add "Blur Filter", the following icon appears on the effects panel. Click this icon to adjust the sharpness of the loaded clip:

fx_manager_blur_filter_parameters

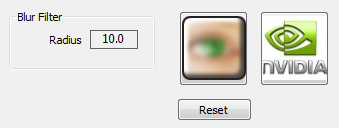

To define the blur radius, double-click the cell and enter the value or simply drag the mouse pointer left or right over the cell. The default value equals 5.0; the radius is adjustable between values 1.0 and 20.0.

Before effect

After effect

fx_manager_blur_before

fx_manager_blur_after

To undo a previous action, press Ctrl+Z.

reset_button

To reset the changes to their default values, press the "Reset" button.

To remove the effect, select it and press the "Delete" key or choose the "Remove" command from the context menu.

Simple Color Corrector

The color corrector provides you with most of the necessary tools for color correction of the clip.

FX_manager_color_corrector_icon

When you add "Simple Color Corrector", the following icon appears on the effects panel. Click this icon to enable the color corrector for the currently inserted clip.

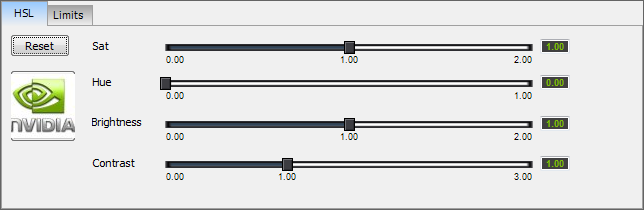

The simple color corrector provides two groups of color correction controls, the "HSL" (hue, saturation, luminance) group and the "Limits" group.

FX_manager_color_corrector_tools_1tab

HSL Tab

The following color controls are available in the HSL tab:

  • Saturation – specifies the intensity of the color. The 1.0 value represents no change to the image;

  • Hue – shifts the color of all the pixels in the clip around the color wheel;

  • Brightness – adjusts the brightness of the image by shifting the luminance value of every pixel by the value set in this control;

  • Contrast – defines the contrast level of the image.

Move the scroll of the HSL controls to adjust the brightness, contrast, saturation and hue parameters of the current clip. All introduced changes are displayed instantly in preview.

Limits Tab

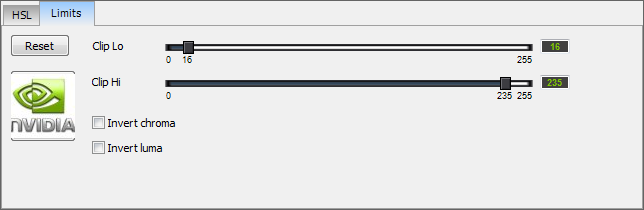

Here you can adjust black and white limits for the clip:

FX_manager_color_corrector_tools_2tab
  • Clip Lo – defines the value for the black level in the clip. All pixels with the intensity level less than specified are set to the "Clip Lo" value. The default setting for this control is 16.

  • Clip Hi – defines the value for the white level in the clip. All pixels with the intensity level higher than specified are clipped to the "Clip Hi" value. The default setting for this control is 235.

The "Invert chroma" option inverts the chromacity value of every pixel in the clip.

The "Invert luma" option reverses the brightness level of every pixel in the clip.

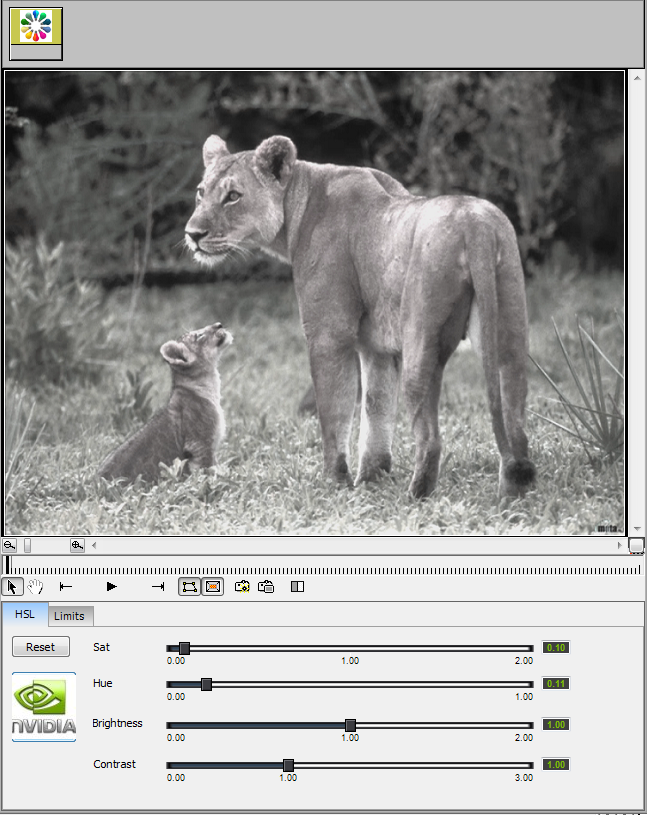

Once you render an effect, you can see the result directly in preview:

FX_manager_color_corrector_sample

or view the modified clip on Timeline or in Sequence Viewer.

reset_button

Press the "Reset" button to return to the default parameters for the current effect.

Picture-in-Picture Effect

The picture-in-picture effect allows user either to render one clip over another as overlaid video or insert it as the background. For this effect, you need to have Timeline with at least two video tracks overlapped. If you perform the picture-in-picture effect with just one clip, the video in the clip/track will be placed against a black background.

FX_manager_picture_to_picture_icon

When you add "Picture-in-Picture Effect", the following icon appears on the effects panel. Click this icon to configure the behavior, size, position and fading of the foreground video.

The picture-in-picture effect provides a group of controls described below.

Main Tab

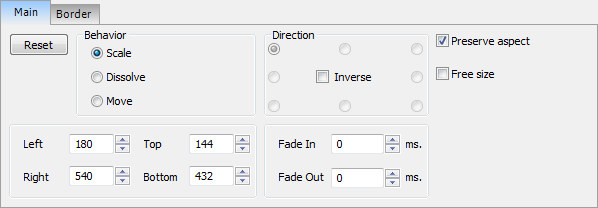

FX_manager_picture_to_picture_tools

Behavior

Note
Before selecting the picture-in-picture effect behavior, define the Fade In/Out values as the effect time range. The "Fade In" value defines the time in seconds from the beginning of the clip; the "Fade Out" value defines the time in seconds left before the end of the clip.

You can define the following behavior patterns of the foreground video:

  • Scale – when selecting the "Scale" behavior, the foreground video will be scaled according to the defined Fade In/Out values to a full screen.

    Select the "Inverse" checkbox to enable video scaling backwards – from full screen to the Fade In/Out values.

  • Dissolve – the "Dissolve" behavior enables the dissolve transition of the foreground video according to the defined Fade In/Out values to a black screen.

  • Move – when selecting the "Move" behavior, the foreground video will be moved on the preview screen from the location point selected in the direction group to the position defined by the bounding box. Select the "Inverse" checkbox to move the foreground video in the opposite direction – from the position defined by the bounding box to the location point selected in the direction group.

    Note
    The "Direction" options are available only for the "Move" behavior.

Size and Aspect

The "Left", "Right", "Top" and "Bottom" parameters define the size and position of the bounding box surrounding your picture-in-picture effect for the foreground video. To manipulate the effect, you can also use the handles of the bounding box.

Select the "Preserve aspect" checkbox to enable resizing of the superimposed video with the aspect ratio preserved; otherwise, the resized video will be distorted.

Select the "Free size" checkbox to enable moving of the superimposed video out of the previewing area.

Border Tab

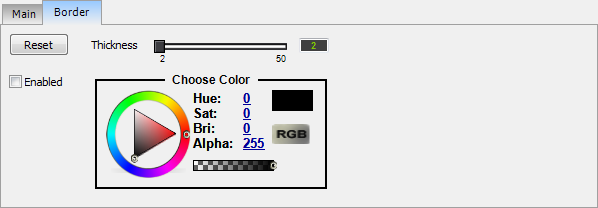

FX_manager_picture_to_picture_tools_2

Enable the border parameters by selecting the "Enabled" checkbox.

The "Border" tab provides a group of controls for the foreground video border:

Parameters Sample

slider Move the slider to define the thickness level of the border.

border_sample1

color_correction Move the sliders to change the values of the RGB or HSB color system and alpha channel to define the border color and transparency; alternatively, enter the values via the keyboard. To switch between color systems, press the "RGB" or "HSB" button correspondingly.

border_sample2

reset_button

To return to the default parameters, press the "Reset" button.

Caution
For correct display of the picture-in-picture effect, make sure that all video tracks in the Sequence are of the same aspect ratio.

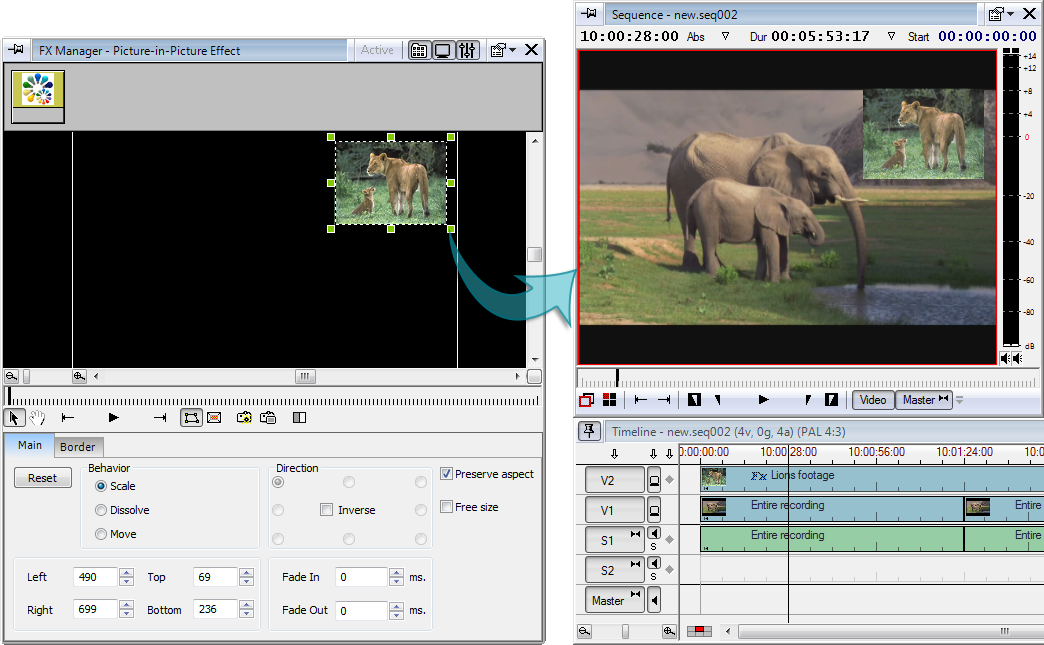

Once you render an effect, you can view the result in Sequence Viewer:

FX_manager_picture_in_picture

Crop Effect

The crop effect allows user to crop or trim a clip/picture/image according to the defined parameters.

FX_manager_crop_icon

When you add "Crop Effect", the following icon appears on the effects panel. Click this icon to define the size, position, and scaling parameters of the cropping.

fx_manager_crop_effect_control

The "Left", "Right", "Top", and "Bottom" parameters define the size and position of the bounding box surrounding your crop effect for the clip. To manipulate the effect, you can also use the handles of the bounding box.

Select the "Scale" checkbox to expand the cropped clip to its original size and "Preserve aspect" to preserve its aspect ratio.

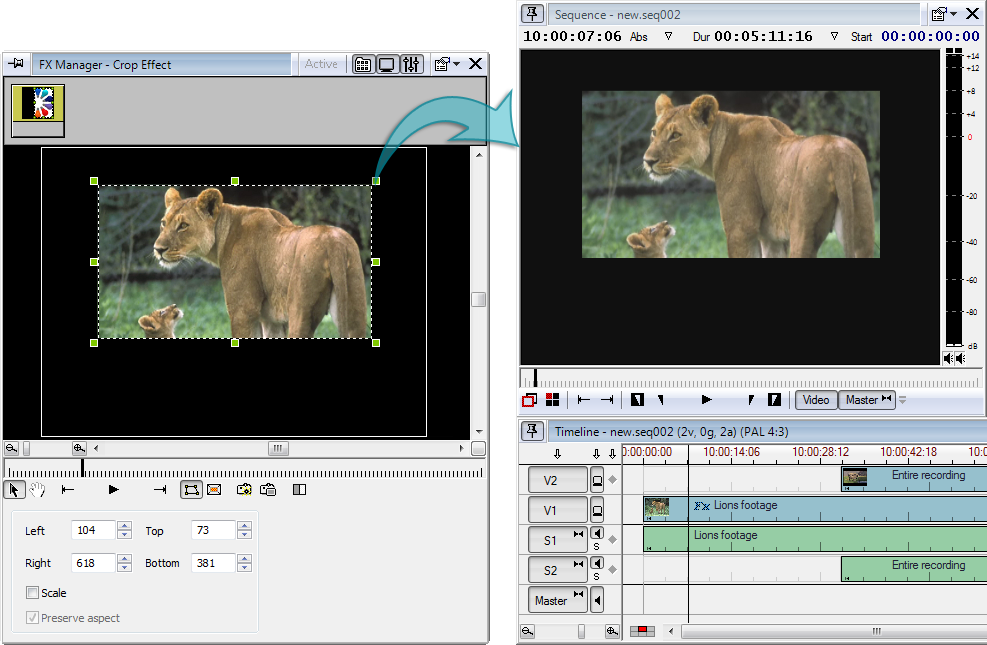

Once you render an effect, you can view the result in Sequence Viewer:

FX_manager_crop

Chroma Key Effect

The Chroma Key effect allows you to set transparency for the background and reveal another image behind. This effect is useful for replacing the background of the video with another video footage, for example for weather forecast broadcasts when the presenter is standing in front of the map.

ChromaKey_sign

When you add "ChromaKey", the following icon appears on the effects panel. Click this icon to set transparency and background color parameters for the currently inserted clip.

Background Color

At first define the colors you need to make transparent by clicking the cell and launching the standard "Color" window or using color picker. If the background consists only of one color, select it in the "Lights" cell. If there are two color tones in the background, select the "Shadows" checkbox and select the necessary color in the cell. Both colors will become transparent according to your settings in the "Transparency" section described below.

ChromaKey_background_color

If the "Show mask" checkbox is selected, the transparency mask for the selected colors will be shown. The visible colors are displayed in white; the black color replaces transparent areas; the semitransparent pixels are shown in gray colors.

Transparency

In this section define the transparency values (max. 255.0):

ChromaKey_transparency

Tolerance value defines the amount of pixels for the area of complete transparency.

Fuzzy edge value is used to define semitransparent areas. The zero value means that all the colors are completely visible; higher values add transparency thus smoothing down the border lines.

Adjust Color

In this section you can deal with the colors, that are left visible after transparency settings have been applied.

ChromaKey_adjust_color

The grey threshold value indicates the amount of grey color that replaces the semitransparent pixels; the higher the value, the more pixels will be replaced by grey color.

The edge de-saturation value is set to 100.0 by default which means that the semitransparent colors are grey according to the "Grey threshold" value. Reducing the value of this field makes these colors darker; the zero value turns them into black.

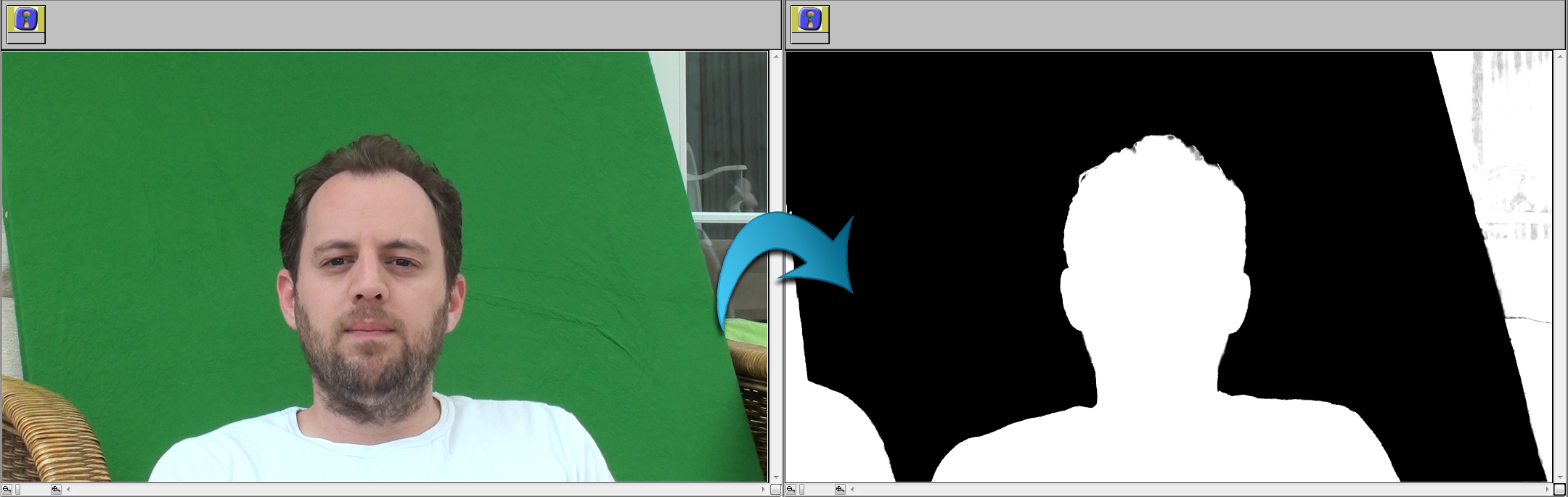

In the given clip the mask of an image with transparency applied to the range of light and dark green colors looks as follows:

ChromaKey_show_mask

To undo a previous action, press Ctrl+Z.

reset_button

To reset the changes to their default values, press the "Reset" button.

To remove the effect select it and hit the Delete key or choose the "Remove" command from the context menu.

Filled Rectangle Effect

The filled rectangle effect allows user to fill a defined marquee area of the clip with a definite color or overlay it with the mosaic or blur effect.

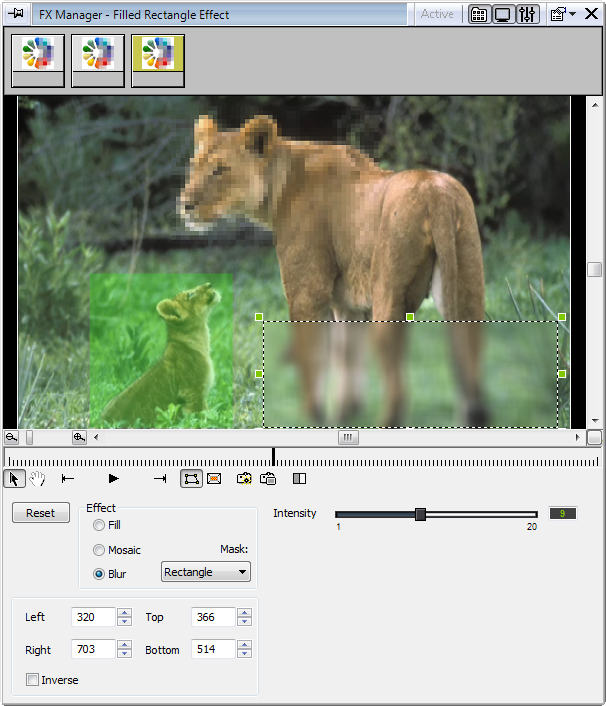

fx_manager_filled_rectangle_effect

FX_manager_inverse_icon1

When you add "Filled Rectangle Effect", the following icon appears on the effects panel. Click this icon to define the size, shape, position, and color of the filling or configure the mosaic/blur effect.

The filled rectangle effect provides a group of controls for each effect:

Effect Sample Parameters

Fill

The fill effect is used to fill the specified overlapping rectangle with a defined color:

fx_manager_filled_rectangle_fill

fx_manager_filled_rectangle_fill_configuration Move the sliders to change the values of the RGB or HSB color system and alpha channel to define the color and transparency; alternatively, enter the values via the keyboard. To switch between color systems, press the “RGB” or ”HSB” button correspondingly.

Mosaic

The mosaic effect is used to convert the selection into a mosaic pattern:

fx_manager_filled_rectangle_mosaic

fx_manager_filled_rectangle_mosaic_configuration Move the slider to define the size of the square tiles of the mosaic effect.

Blur

The blur effect is used to blur the selection:

fx_manager_filled_rectangle_blur

fx_manager_filled_rectangle_blur_configuration Move the slider to define the intensity of the blur effect.

The "Mask" parameter defines the shape of the effect area; it can be either "Rectangle" or "Ellipse".

The "Left", "Right", "Top" and "Bottom" parameters define the size and position of the effect area.

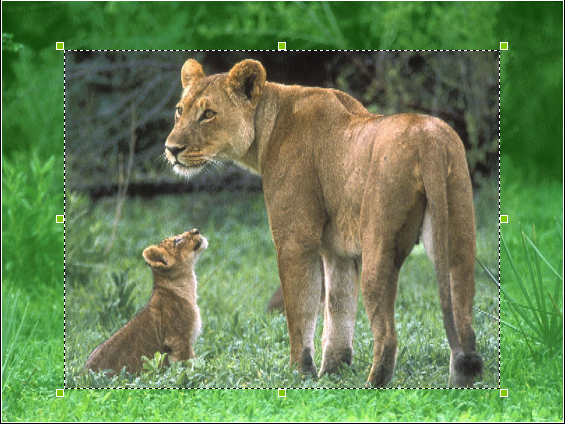

Select the "Inverse" checkbox to apply your filled rectangle effect to the area out of your selection:

fx_manager_filled_rectangle_inverse

Press the "Reset" button to return to the default parameters for the filled rectangle effect.

Once you render an effect, you can see the result directly in preview.
